DLE 20 User Manual
Page 9
9

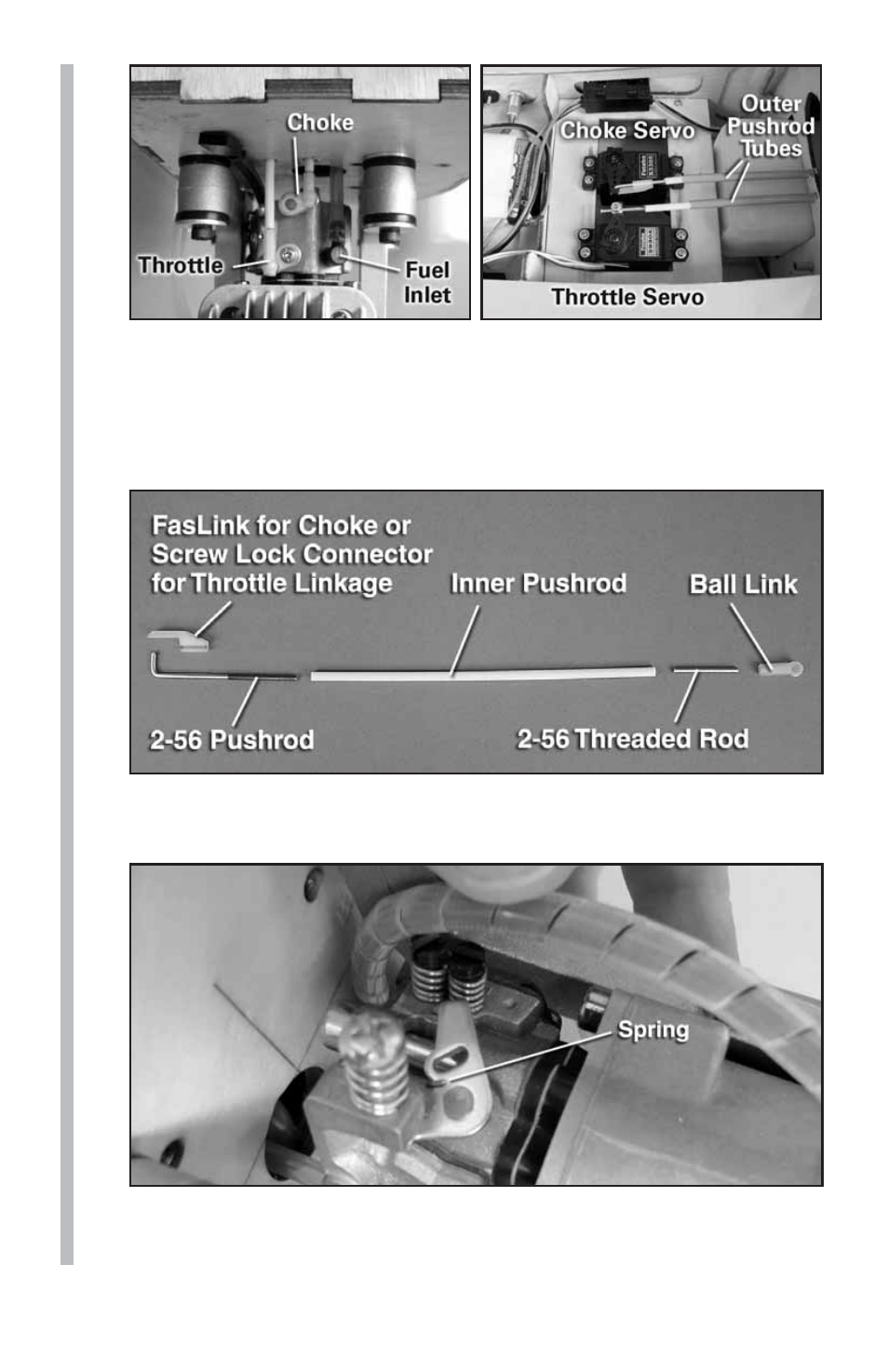

7. Install the throttle servo as far as possible from the engine. Make
sure that you get the carburetor’s full range of rotation with your
servo travel. If needed, use the included Long Throttle Arm Extension.
Be sure to use a non-metallic linkage through an outer pushrod
tube and a screw lock connector so that the linkage is adjustable.
Components for the non-metallic linkage can be purchased at your
local hobby shop.
8. Once the throttle servo is installed it’s a good idea to deactivate the
throttle return spring with a pair of needle nose pliers. Gently grab the
spring and remove it from tension on the throttle lever. Deactivating
the spring will remove the load or stress on the throttle servo.
