DLE 40 - Manual

1

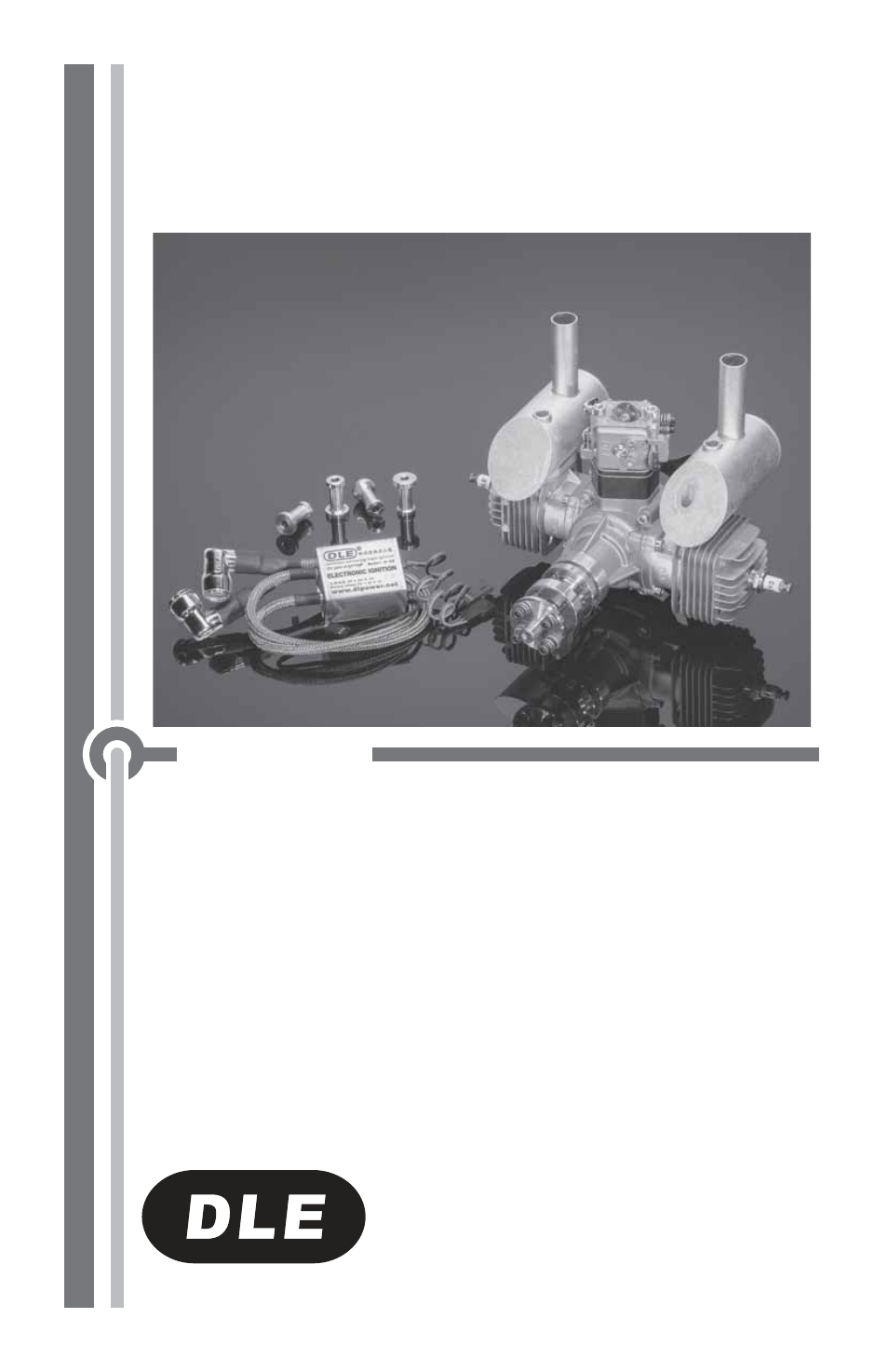

DLE-40
Operator’s Manual
Specifications
40cc 2.44 cu in
4.8 HP/8,500 RPM
1,500RPM
Electronic Ignition
19x8,19x10,20x8,20x10
NGK CM6
(Gap) 0.018in.– 0.020 in. [0.45mm – 0.51mm]
1.26 in(32mm) x .98 in(25mm)
10.5: 1
DLE with Manual Choke
Main Engine – 2.58 lb [1450g]
Mufflers − 7.76oz [110g]
Electronic Ignition − 6 oz [170g]
Engine Mount Standoffs − 3.06 oz [87g]
87− 93 Octane Gasoline with a 30:1
gas/2-stroke (2-cycle) oil mixture Displacement:
Performance:
Idle speed:
Ignition Style:
Recommended Propellers:
Spark Plug Type:
Diameter x Stroke:
Compression Ratio:
Carburetor:
Weight:
Fuel:
© 2014 Hobbico, Inc. All rights reserved. DLEG0040 Mnl v1.0
™
