DLE 20 User Manual

Page 10

9. Install the choke servo (optional) at the same distance as the

throttle servo from the engine. Be sure to use a non-metallic linkage
and a Faslink to secure the throttle linkage to the servo.

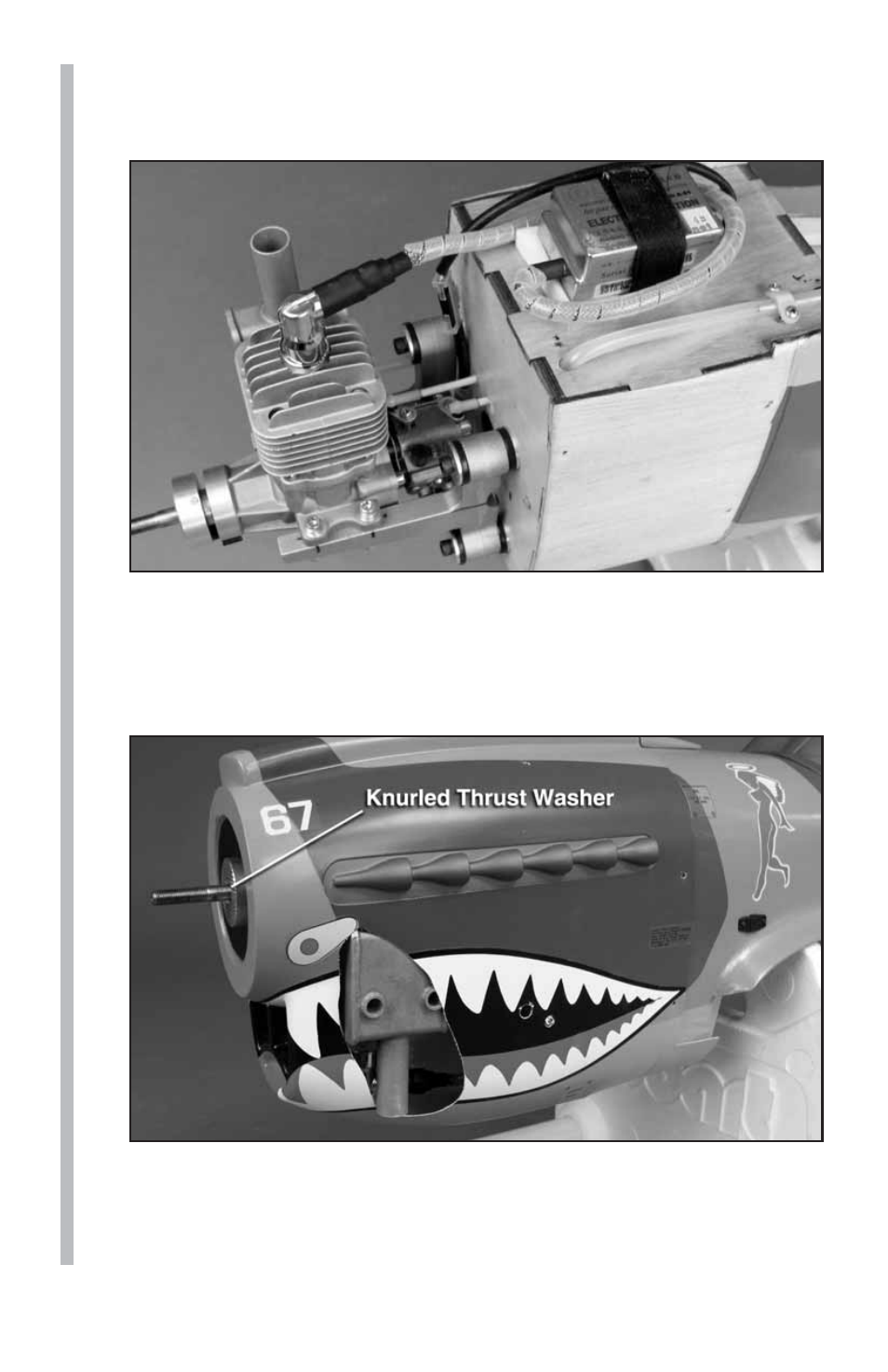

10. Connect the ignition wire from the ignition module to the

spark plug.

11. Install the muffl er onto the engine. Be sure to use threadlocker

and that the ignition wire does not contact the muffl er.

12. Cut all necessary clearance, carburetor adjustment, cooling,

and exhaust holes in the cowl. A 1:3 ratio of airfl ow intake area to
airfl ow exhaust area is recommended for proper engine cooling.

13. Make sure the cowl is secured to the airplane and that the knurled

thrust washer protrudes from the cowl by at least 3.2mm [1/8”].
