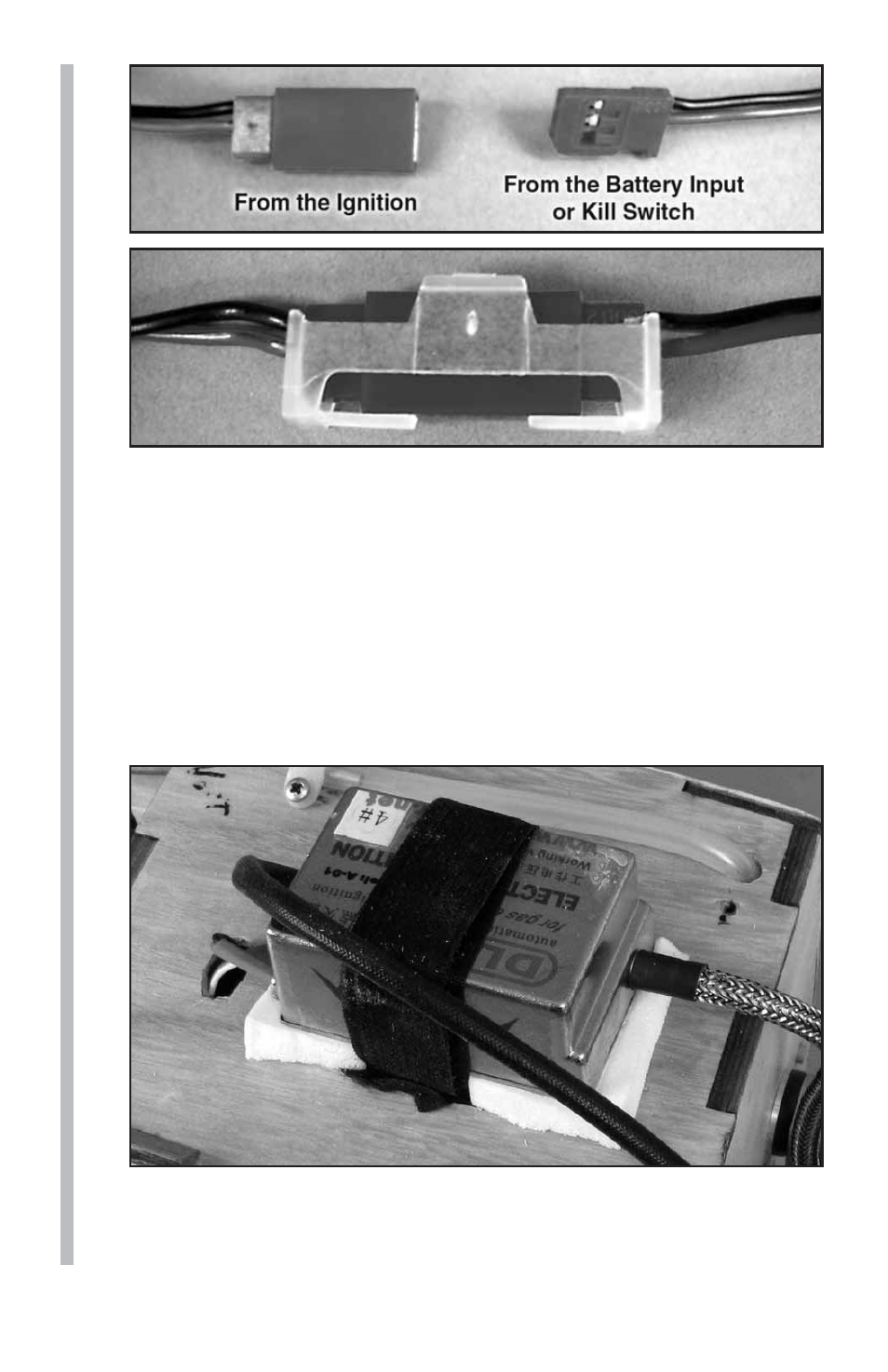

3. Connect the kill switch lead to the red connector from the ignition
control module using the lead from the kill switch or with the included
three pin connector with pig tail. Use one of the included three pin
securing clips to secure the connection.
4. Connect the ignition module battery to the kill switch. Any 4.8-
6.0V, 1000mAh and above capacity battery will work well for this.
Use heat shrink tubing to secure this connection.
5. Install the ignition kill switch and charge jack on the aircraft so
that it is easily accessible from the outside of the plane.
6. Install the ignition module securely in the airplane forward area. It
is recommended that a thin piece of foam rubber is placed between
the module and the mounting surface and that Velcro
®
is used to
hold the module in place.
