JTAG-SMT2-NC Reference Manual
Copyright Digilent, Inc. All rights reserved.
Other product and company names mentioned may be trademarks of their respective owners.
Page 6 of 14
When customers use the JTAG-SMT2-NC to interface the scan chain of Xilinx’s Zynq platform, they should connect
the GPIO2 pin of the SMT2-NC to the Zynq’s PS_SRST_B pin. This connection allows the Xilinx Tools to reset the
Zynq’s processor core at various times during debugging operations. Please see the following “Application
Examples” section for more information.
Note: The Xilinx tools expect GPIO2 to be connected to the SRST_B pin on a Zynq chip. As a result, GPIO2 may not be
used as a general purpose I/O if the Xilinx tools are going to be used to communicate with the SMT2.
Note: DPIO port 0 can only be used while both JTAG and SPI are disabled.
Application Examples
Example 1: Interfacing a Zynq-7000 when VCCO_0 and VCCO_MIO1 use a common supply

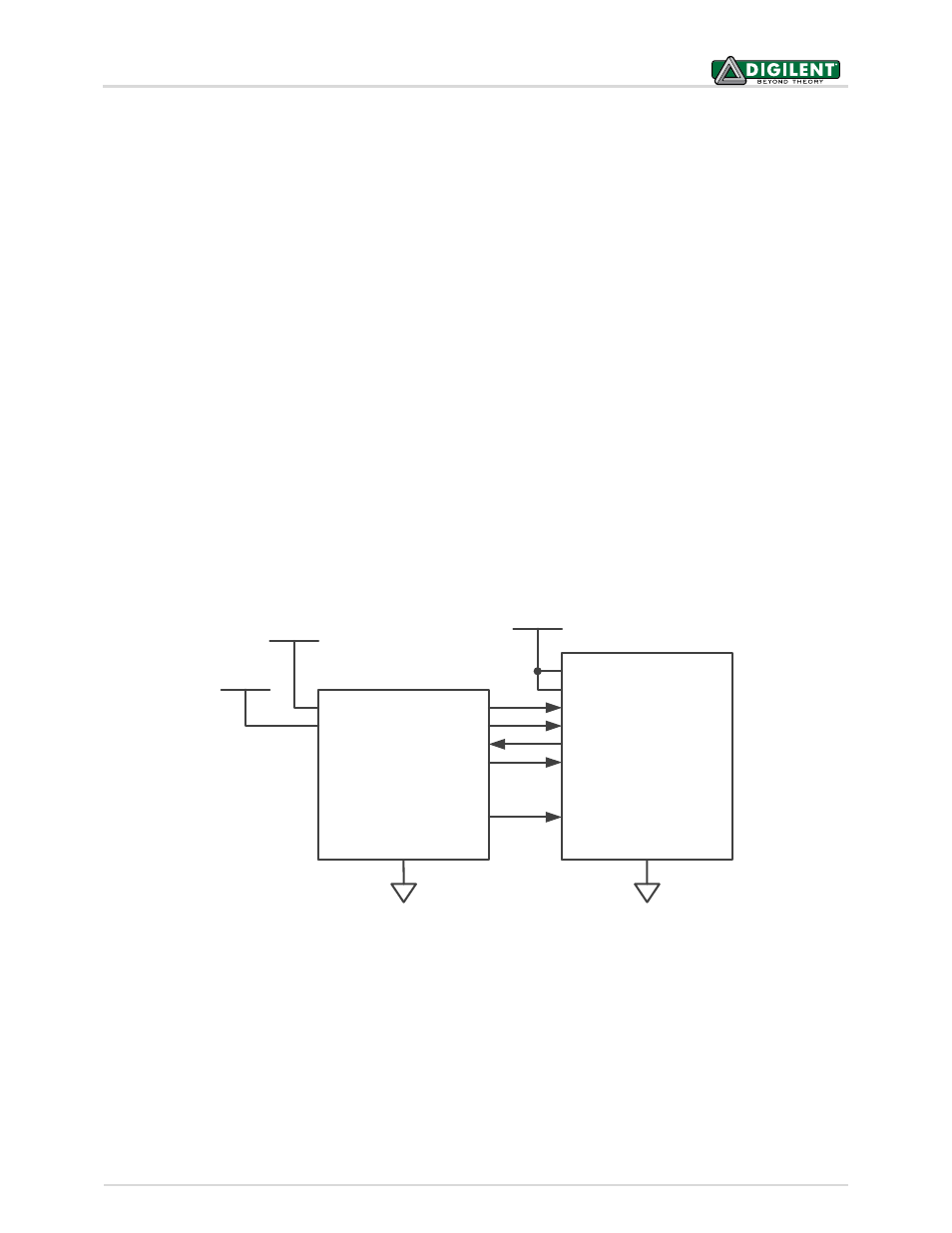

Figure 9 demonstrates how to connect the JTAG-SMT2-NC to Xilinx’s Zynq-7000 silicon when the same voltage
supplies both the VCCO_0 (Programmable Logic Bank 0 Power Supply) and the VCCO_MIO1 (Processor MIO Bank 1
Power Supply).
In this case, the SMT2-NC has a 100K pull-up to VREF, which operates at the same voltage as VCCO_MIO1. This
similar voltage makes it possible to eliminate the external pull-up that is normally required for the PS_SRST_B pin.
VCCO_0
VCCO_MIO1
PS_SRST_B
ZYNQ-
7000
TDO
TMS
TDI
TCK
GND
VDD
VREF
TDO
JTAG-
SMT2-NC
GND
TMS
TDI
TCK
GPIO0
GPIO1
GPIO2
VCCO
3.3V
VCCO
Figure 9. Connecting the JTAG-SMT2-NC to Xilinx’s Zynq-7000.
