JTAG-SMT2-NC Reference Manual

Copyright Digilent, Inc. All rights reserved.

Other product and company names mentioned may be trademarks of their respective owners.

Page 13 of 14

AC Operating Characteristics

The JTAG-SMT2-NC’s JTAG signals operate according to the timing diagram in Fig. 12. The SMT2-NC supports
JTAG/TCK frequencies from 30 MHz to 8 KHz at integer divisions of 30 MHz from 1 to 3750. Common frequencies
include 30 MHz, 15 MHz, 10 Mhz, 7.5 MHz, and 6 MHz (see Table 2). The JTAG/TCK operating frequency can be set
within the Xilinx tools.

Note: Please refer to Xilinx’s iMPACT documentation for more information.

TMS/TDI

TCK

TDO

T

CKL

T

CKH

T

CK

T

CD

T

SU

T

HD

Mounting to Host PCBs

The JTAG-SMT2-NC module has a moisture sensitivity level (MSL) of 6. Prior to reflow, the JTAG-SMT2-NC module
must be dried by baking it at 125° C for 17 hours. Once this process has been completed, the module has a MSL of
3 and is suitable for reflow for up to 168 hours without additional drying.

The factory finishes the JTAG-SMT2-NC signal pads with the ENIG process using 2u” gold over 150u” electroless
nickel. This makes the SMT2-NC compatible with most mounting and reflow processes (see Fig. 13). The binding
force of the solder is sufficient to hold the SMT2-NC firmly in place so mounting should require no additional
adhesives.

Symbol

Parameter

Min

Max

T

CK

T

CK

period

33ns

2.185ms

T

CKH

, T

CKL

T

CLK

pulse width

20ns

1.1ms

T

CD

T

CLK

to TMS, TDI

0

15ns

T

SU

TDO Setup time

19ns

T

HD

TDO Hold time

0

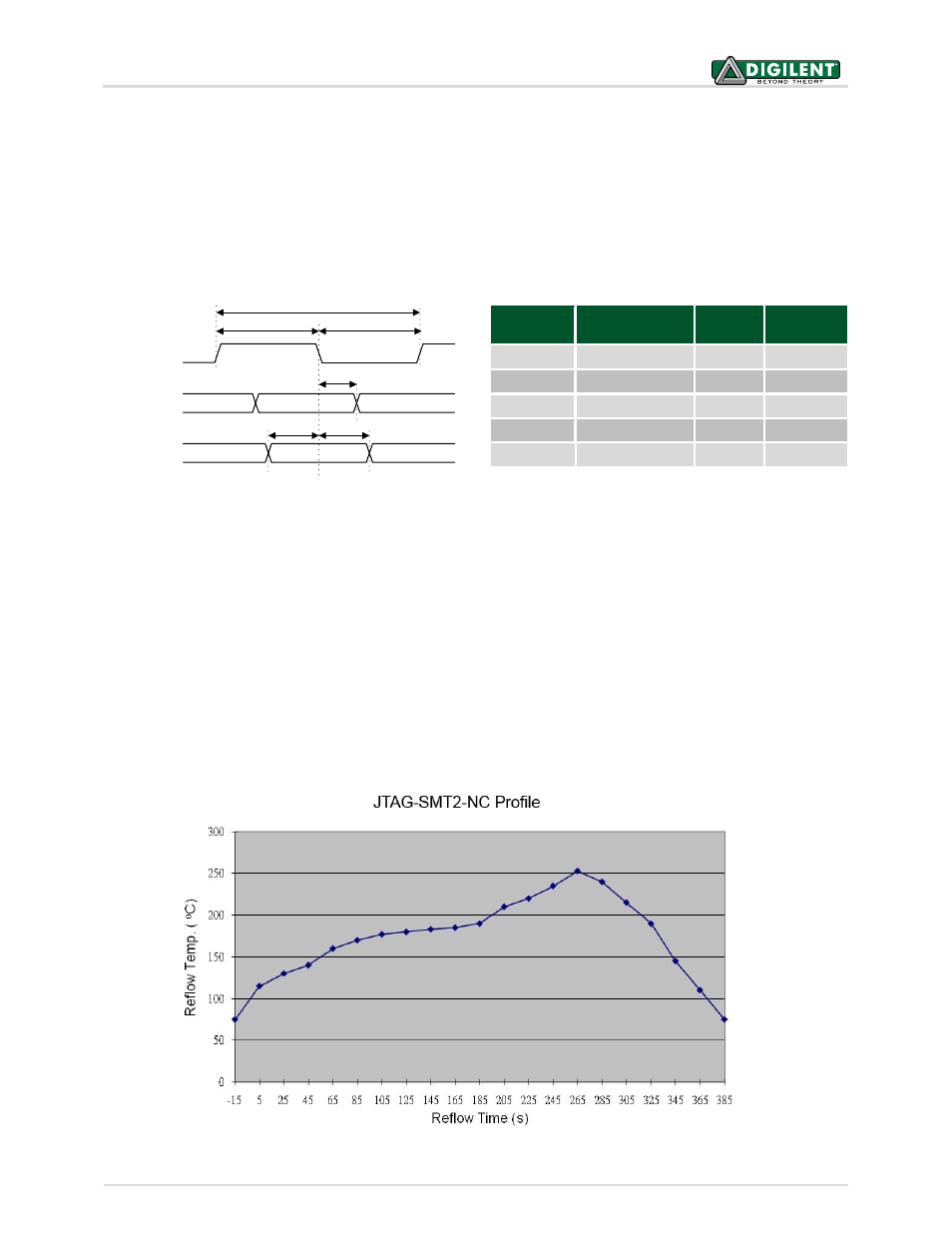

Figure 12. Timing diagram.

Table 2. JTAG frequency support.

Figure 13. JTAG-SMT2-NC reflow temperature over time.
