Hardware Installation
You can use the following subsections to install the RocketLinx ES8510-XTE:
•
•
Connect the Digital Input s and Relay Outputs
•
•
•
Connect SFP Transceivers (Combo Ports 8-10)
•
•
•
Connect the Power and Ground
You can use the following procedure to connect power and the ground to the ES8510-XTE.
1.
Connect the DC power inputs.
a.
Insert positive and negative wires (12-24AWG) into the PW+ and PW- contacts.
Note: Power should be disconnected from the power supply before connecting it to the switch.
Otherwise, your screw driver blade can inadvertently short your terminal connections to the
grounded enclosure.
AC Power Input
AC Power Input
Power Supply
10 - 60VDC
(UL Listed)
Power Supply
10 - 60VDC
(UL Listed)
V-
V+
V-
V+
12 - 24AWG Wire
12 - 24AWG Wire

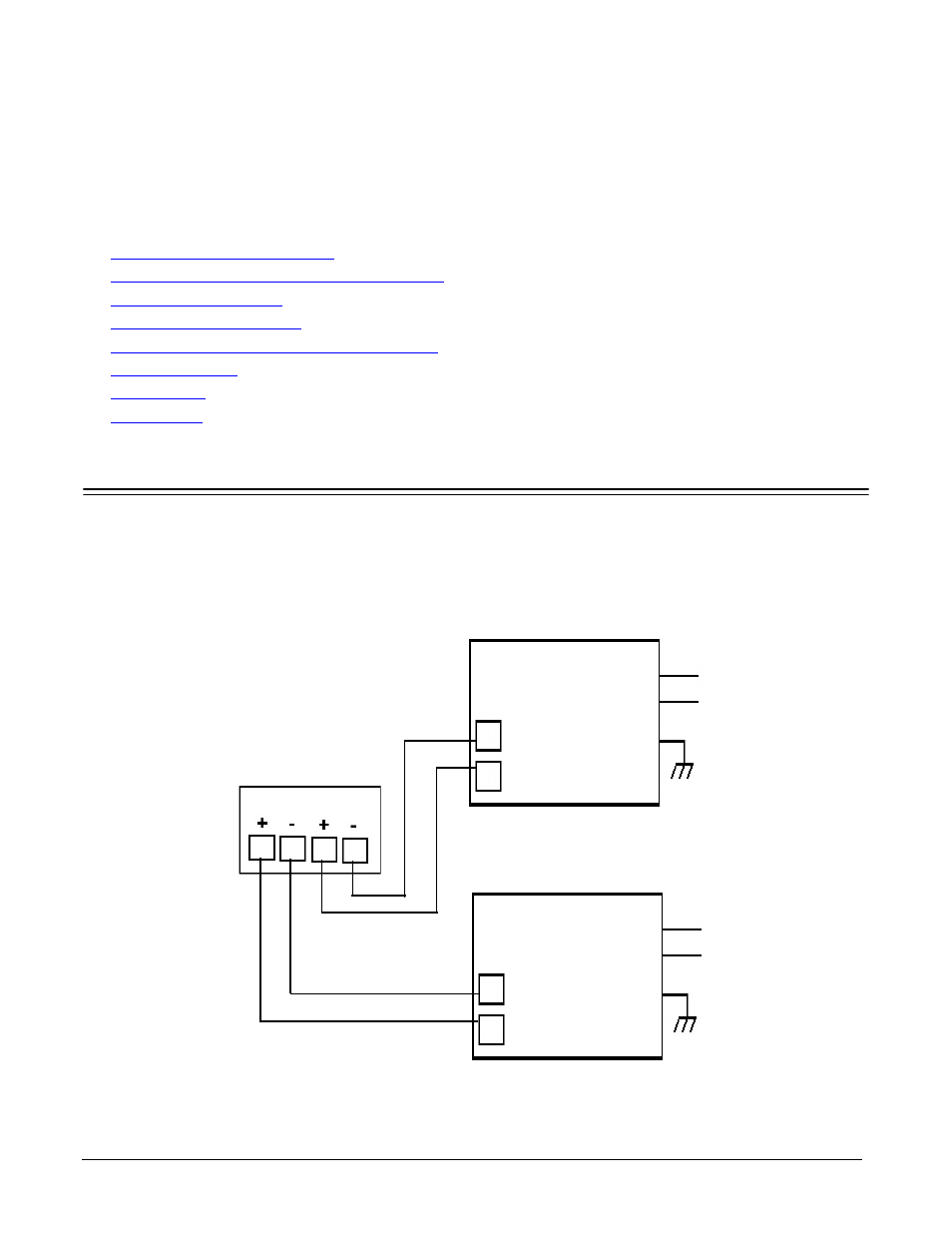

Wiring Power Supplies
Positive and negative power system inputs are both accepted, but PW1 and
PW2 must be applied in the same mode.
