14 - Panel Layout RocketLinx ES8510-XTE User Guide: 2000574 Rev. C
Hardware Installation

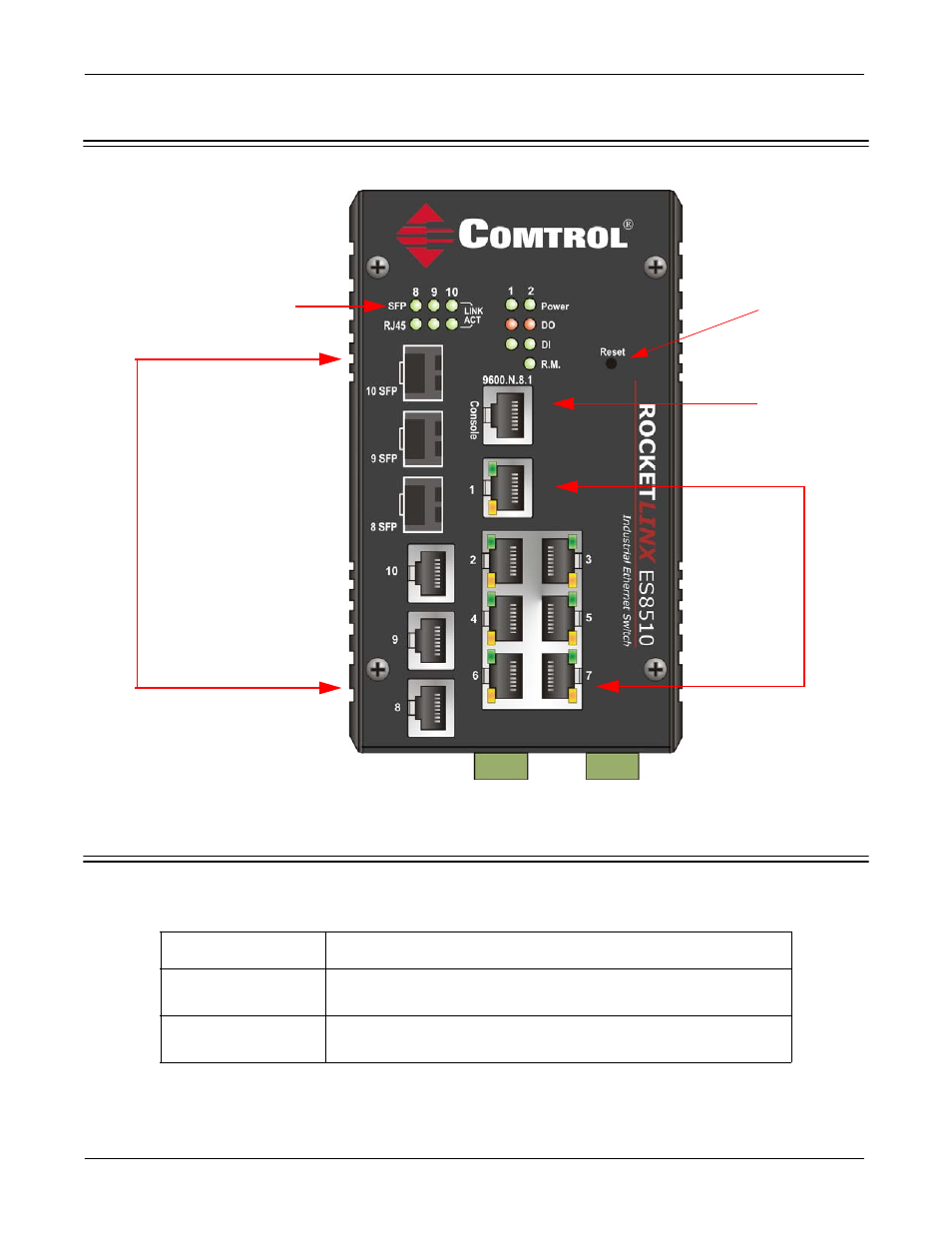

Panel Layout
The ES8510-XTE provides ten 10/100BASE-TX ports of which three are Combo ports (RJ45/SFP).
Reset Button
The ES8510-XTEhas a reset button that you can use to reboot the ES8510-XTE or reset the configuration to
the factory default.
The Reset button is located on the front panel of the ES8510-XTE to the right of the RS LED.
Reset Button Description
Depress 5 Seconds
This reboots the ES8510-XTE without changing the
configuration.
Depress > 10
Seconds This loads the factory default configuration values into the
ES8510-XTE including the IP address.
Combo Port
LEDs
SFP Ports
Combo Ports
10/100BASE-TX
RS-232 Console
Port
100BASE-FX
Reset
Button
Fast Ethernet Ports 10/100BASE-TX
Fast Ethernet Ports
