82 - Redundant Ring Information RocketLinx ES8510-XTE User Guide: 2000574 Rev. C
Configuration Using the Web Interface

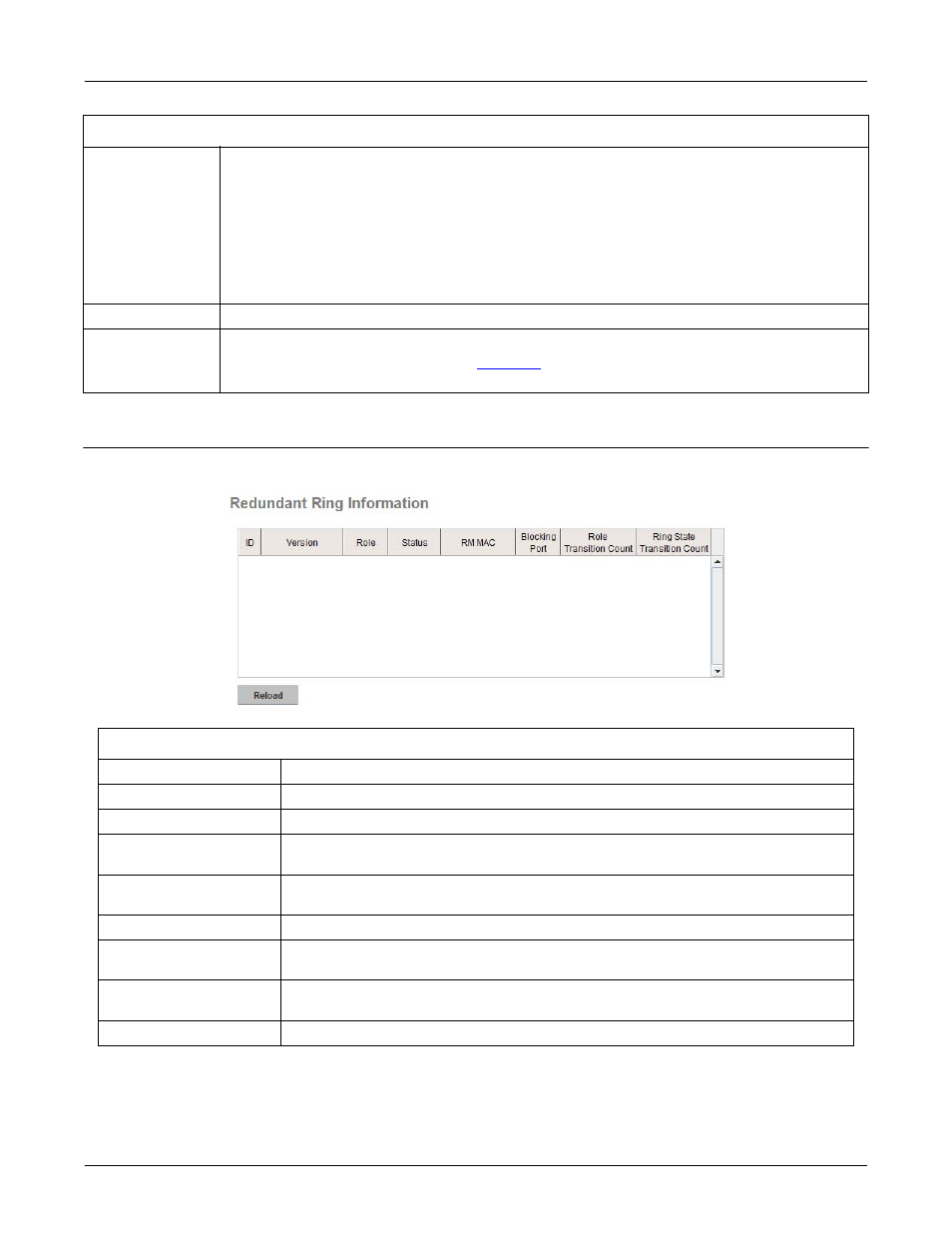

Redundant Ring Information
This page shows Redundant Ring information.
Rapid Dual
Homing
Rapid Dual Homing is an important feature of Rapid Super Ring redundancy technology.
When you want to connect multiple RSR or form redundant topology with other vendors,
RDH allows you to have a maximum of seven multiple links for redundancy without any
problem.
In RDH, you do not need to configure a specific port to connect to other protocol. The RDH
selects the fastest link for the primary link and blocks all the other links to avoid a loop.
If the primary link failed, RDH automatically forwards the secondary link for a network
redundant. If there are more connections, they are standby links and are recovered if
both primary and secondary links are broken.
Ring status To Enable/Disable the Ring, remember to enable the Ring after you add it.
Apply
Click Apply to apply the settings.
Note: You must Save the settings ( Page 123 ), if you want to maintain these settings if the
ES8510-XTE is powered off.
Redundant Ring Information Page
ID The Ring ID.
Version Displays the ring version, this field could be Super Ring or Rapid Super Ring.
Role This ES8510-XTE is the RM (Ring Master) or nonRM (non-ring master).
Status
If this field is Normal it means the redundancy is approved. If any one of the
link in this Ring is broken, then the status is Abnormal.
RM MAC
The MAC address of Ring Master of this Ring, which helps to find the
redundant path.
Blocking Port Shows which is blocked port of RM.
Role Transition Count
Shows how many times this ES8510-XTE has changed its Role from nonRM to
RM or from RM to nonRM.
Role state Transition
Count Shows how many times the Ring status has been transformed between Normal
and Abnormal state.
Reload Click to reload redundant ring information.
Redundant Ring Page (Continued)
