DeviceMaster UP PROFINET IO Installation Quick Start 2000484 Rev. E ­ 9
Example Programs

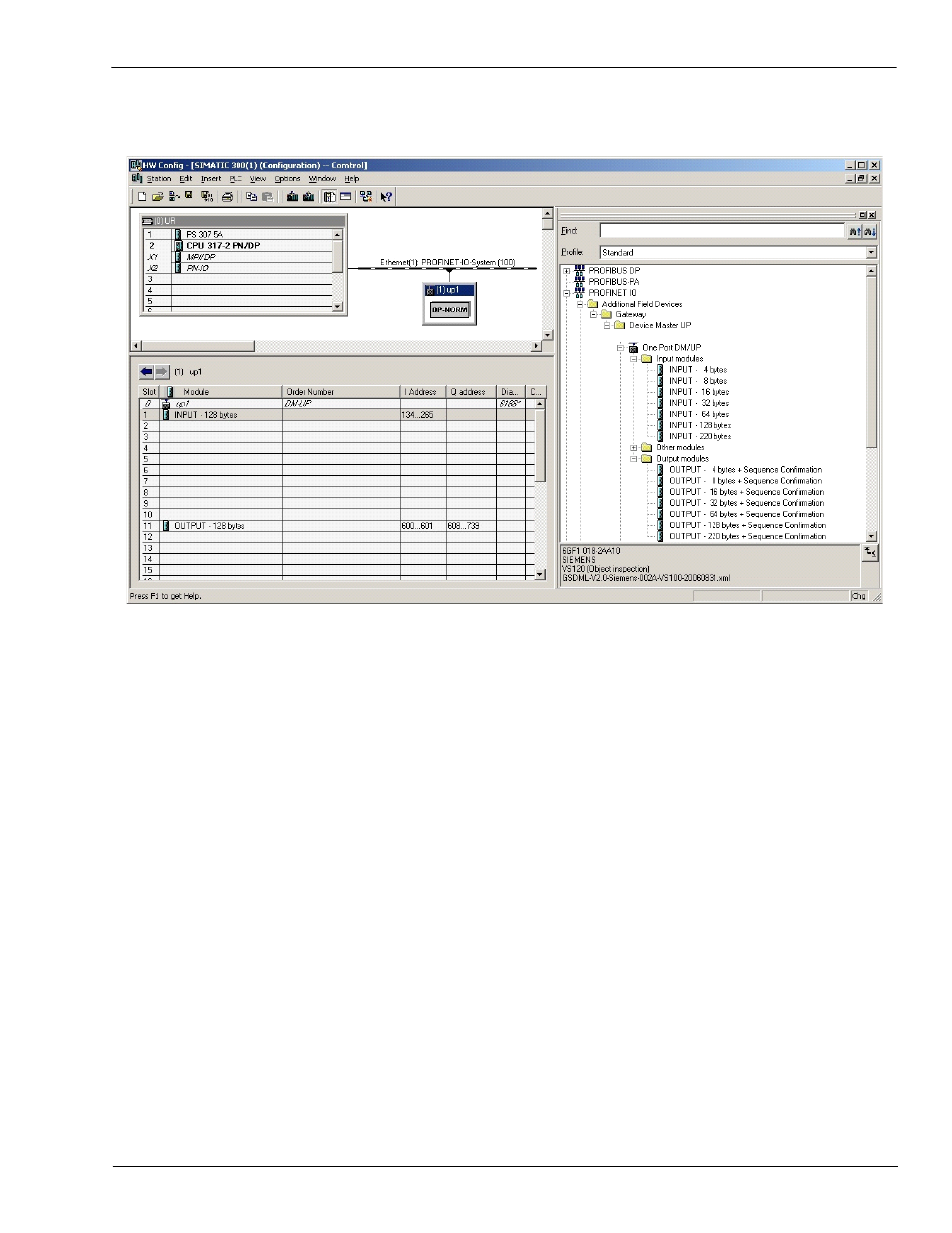

• Once you have installed the GSD, you can add the DeviceMaster UP to your network and add the input and output
modules for your serial IO in Slots 1 and 11 as shown in the following screen shot:
Note: In the screen shot above, the serial port input slot (Slot 1) has a 128 BYTE input module assigned to address
134 and the output is assigned to the output address for 600. These are important because this is where your
PLC program will interact with the DeviceMaster UP.
• It is also worth noting that neither of these addresses is in the Process Image (PI) for this controller. Instead we will
access this data through some SFC blocks that we will use to copy data into and out of the output and input addresses
respectively. We could use the Process Image, but because of the size of the buffer, the default mapping is to outside
the PI.
