2 ­ 2000484 Rev. E DeviceMaster UP PROFINET IO Installation Quick Start
Data Type Definitions
7. Install the GSDML file in HW Config. In the HW Config window, select Install GSD from the Options pull‐down
menu. Choose the directory where you installed the PROFINET IO software in Step 4.
8. C ONNECT any serial device or devices.
9. Verify any Ethernet TCP/IP devices are connected as configured in the DeviceMaster UP.
Data Type Definitions
The following data type definitions apply.
Configuring Read­Only Serial Devices
Use the following procedure to configure read‐only serial ports.
Note: Make sure that you have performed
Steps 1 through 5 in the Installation Overview on Page 1.

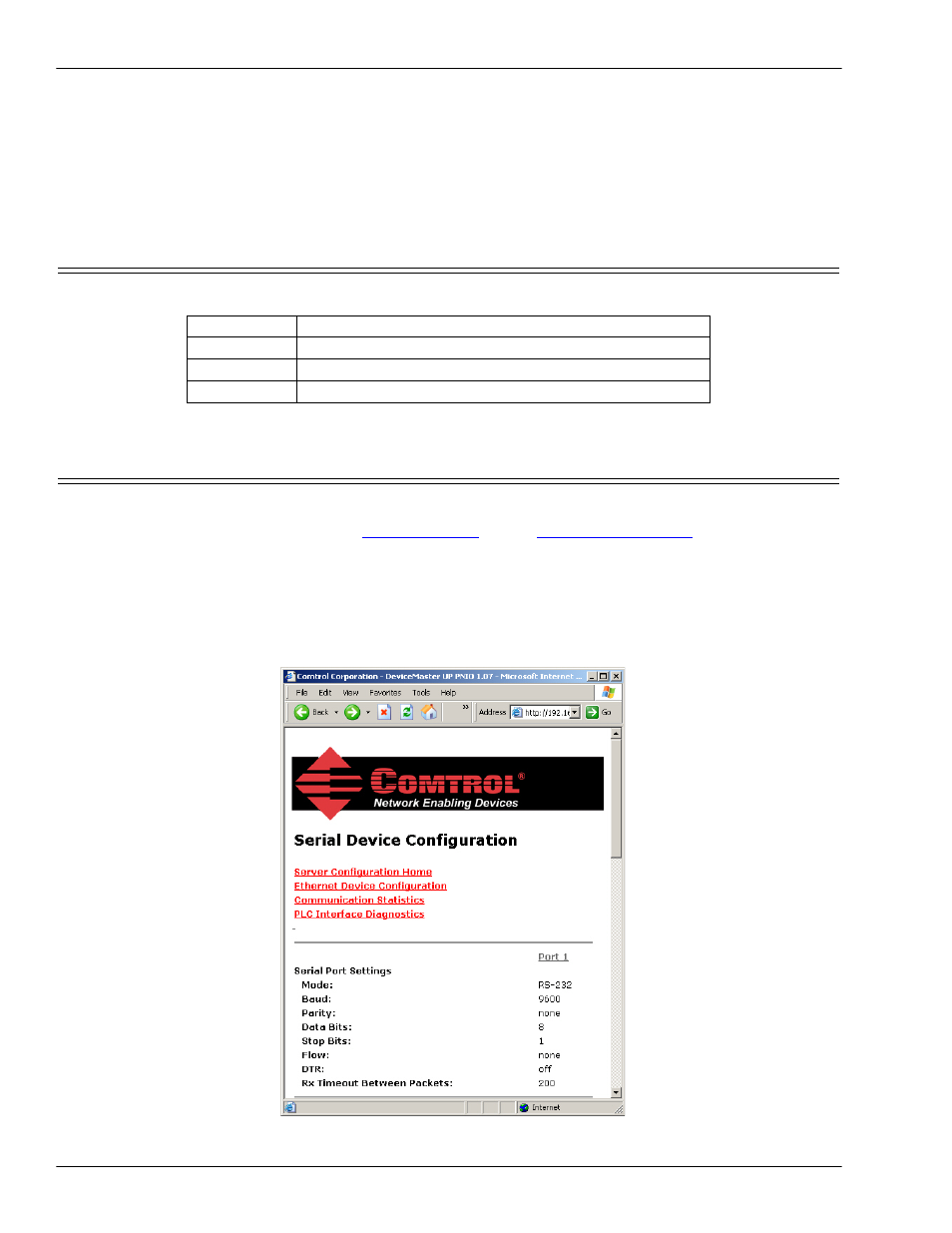

1. Access the Server Configuration web page using one of the following methods:
• Entering the IP address in your web browser
• Right‐click the DeviceMaster UP in PortVision DX and click Web Manager
2. Click Serial Device Configuration.
3. Click the Port # that you want to configure, which opens the Edit Serial Port Configuration page.
Data Type Definition
BYTE An integer 0 ‐ 255 (8‐bit) e.g. ASCII strings are a series of bytes
WORD Unsigned integer (16‐bit)
DWORD Unsigned integer (32‐bit)
