7
16. Select the appropriate chiller type and version and press
“OK.”
17. After the default workspace of the chiller version to be
cloned is opened, select the “Run” tab at the top of the
screen, then “Enter design mode” (Fig. 17).
18. The prompt “Reload current WorkSPACE for design?”
will be received. Press the “Yes” button. (Fig. 18).
19. From chiller display page, select “File” tab at the top of
the screen, then select “Save Current WorkSPACE as”
(Fig. 19).
20. The “Save Current WorkSPACE As” prompt box is dis-
played. Input the filename of your local chiller default
screen. Then press the “Clone” button (Fig. 20).
21. The “Clone WorkSPACE” prompt is received. Enter the
new workspace name of the default workspace for your
local chiller. Enter using the onscreen expandable key-
board. Then press “OK” (Fig. 21).

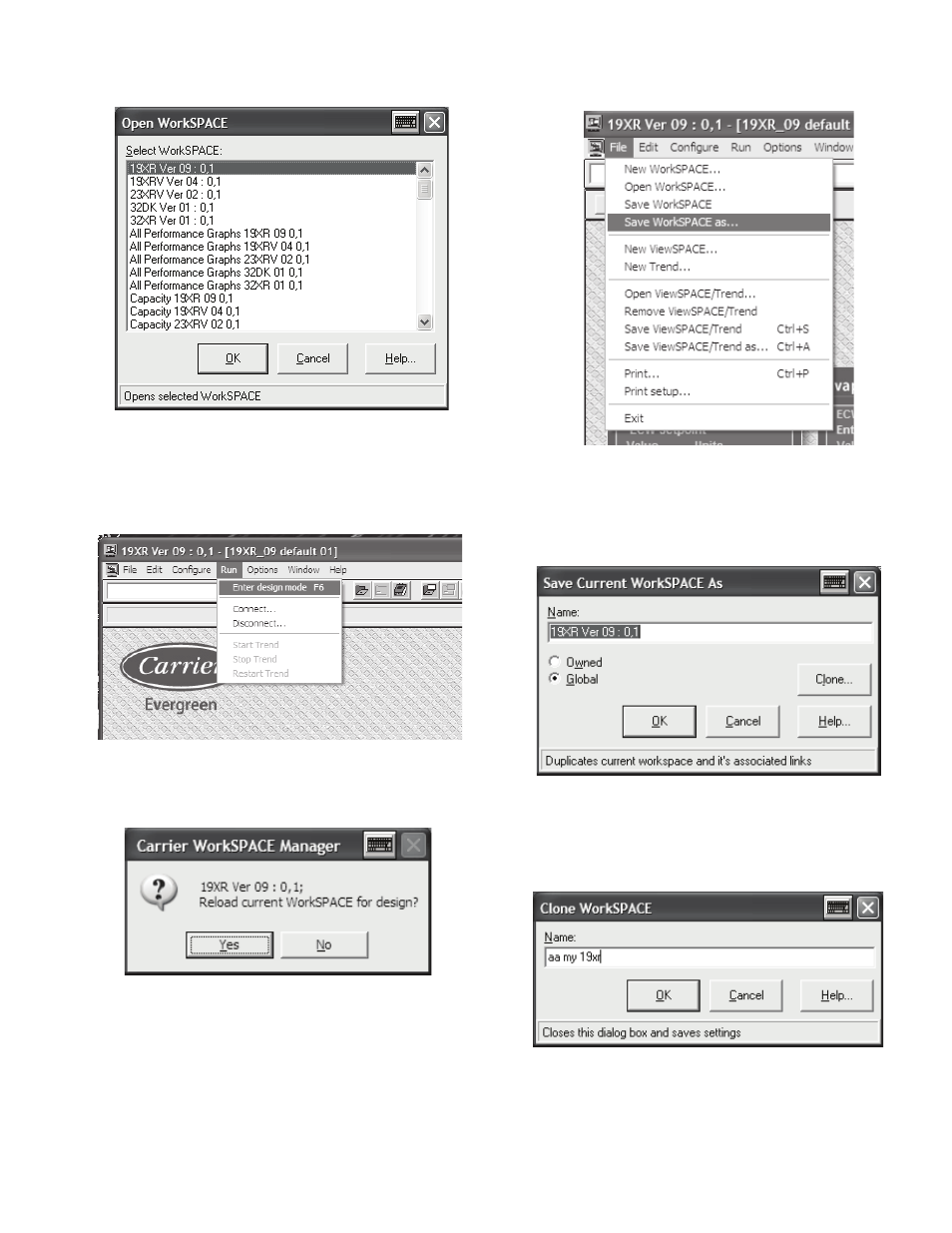

Fig. 16 — Open Workspace
a19-1907
Fig. 17 — Select Design Mode a19-1908
Fig. 18 — Reload Prompt a19-1909
Fig. 19 — Select “Save Current WorkSPACE as”
Fig. 20 — Save Workspace Name
Fig. 21 — Enter New Workspace Name
a19-1914
