GROUNDING INSTRUCTIONS
This appliance must be grounded.
In the event of malfunction or break­
down, grounding will reduce the risk
of electric shock by providing a path of
least resistance for electric current. The
power supply cord must be plugged into
an appropriate outlet that is properly
installed and grounded in accordance
with all local codes and ordinances.
WARNING: Improper connection of the
equipment-grounding conductor can
result in a risk of electric shock. Check
with a qualified electrician or serviceman
if you are in doubt as to whether the
appliance is properly grounded.
Do not modify the plug on the power
supply cord. If it will not fit the outlet,
have a proper outlet installed by a
qualified electrician.

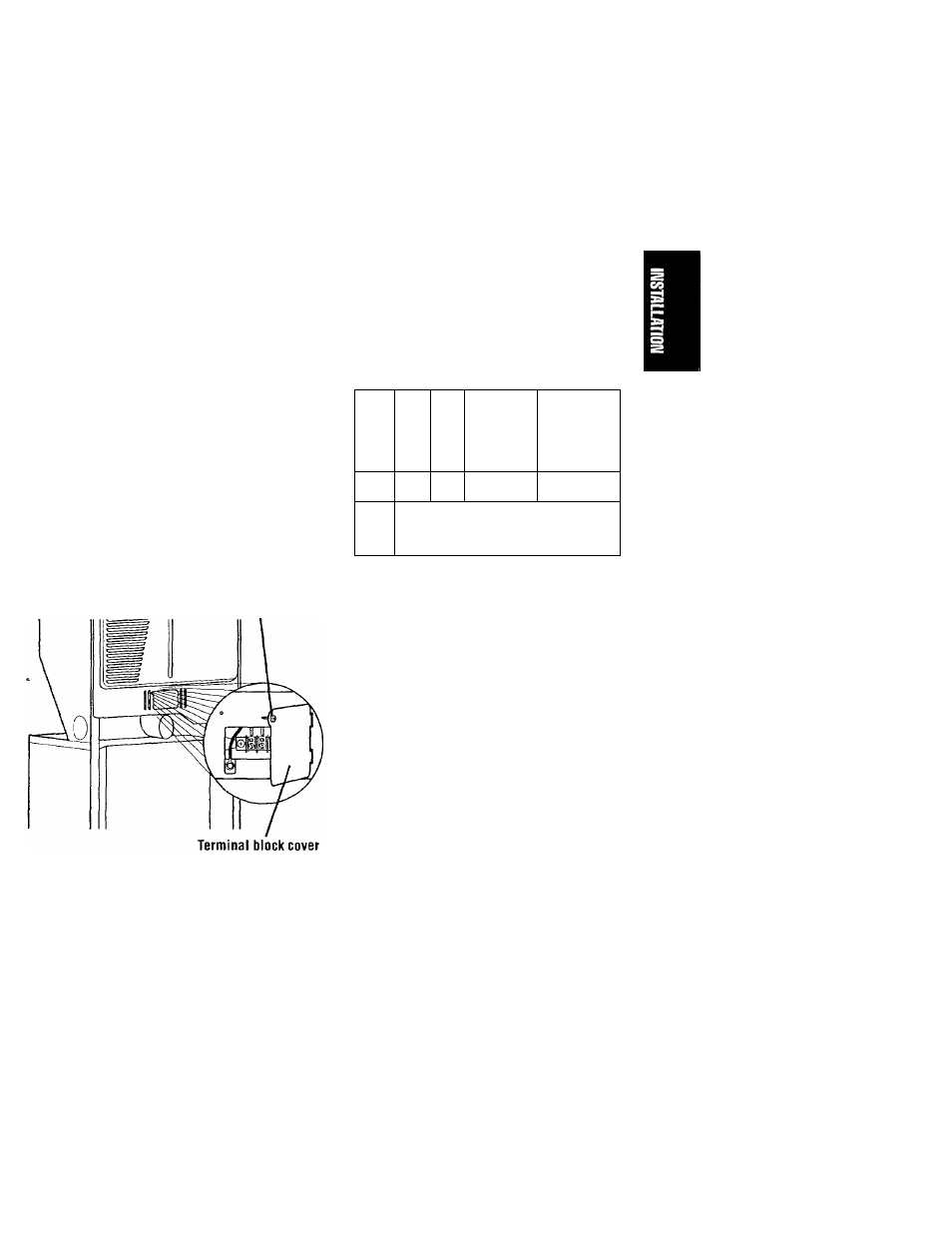

STEP' 1. Disconnect power.
STEF' 2. Remove hold-down screw
and terminal block cover.
STEP 3. Attach a ^A-inch, U.L.-listed,
strain relief to the hole below terminal
block opening. Strain relief should have
a tight fit with laundry center cabinet and
be in a horizontal position. Put the power
supply cord through the strain relief.
STEP 4. Remove the center terminal
block screw. Remove the neutral ground­
ing wire (green/yellow wire) from external
grounding screw.
Green/yellow wire Center silver-colored
of harness \ terminal block screw
Pi
m
©c
-------- __ External ground
connector
Hold-down screw
23
