5 Troubleshooting Clarity Hardware
5.5 Data Acquisition - Simulated
▌ The title "Simulated" is displayed in the Data Acquisition window.

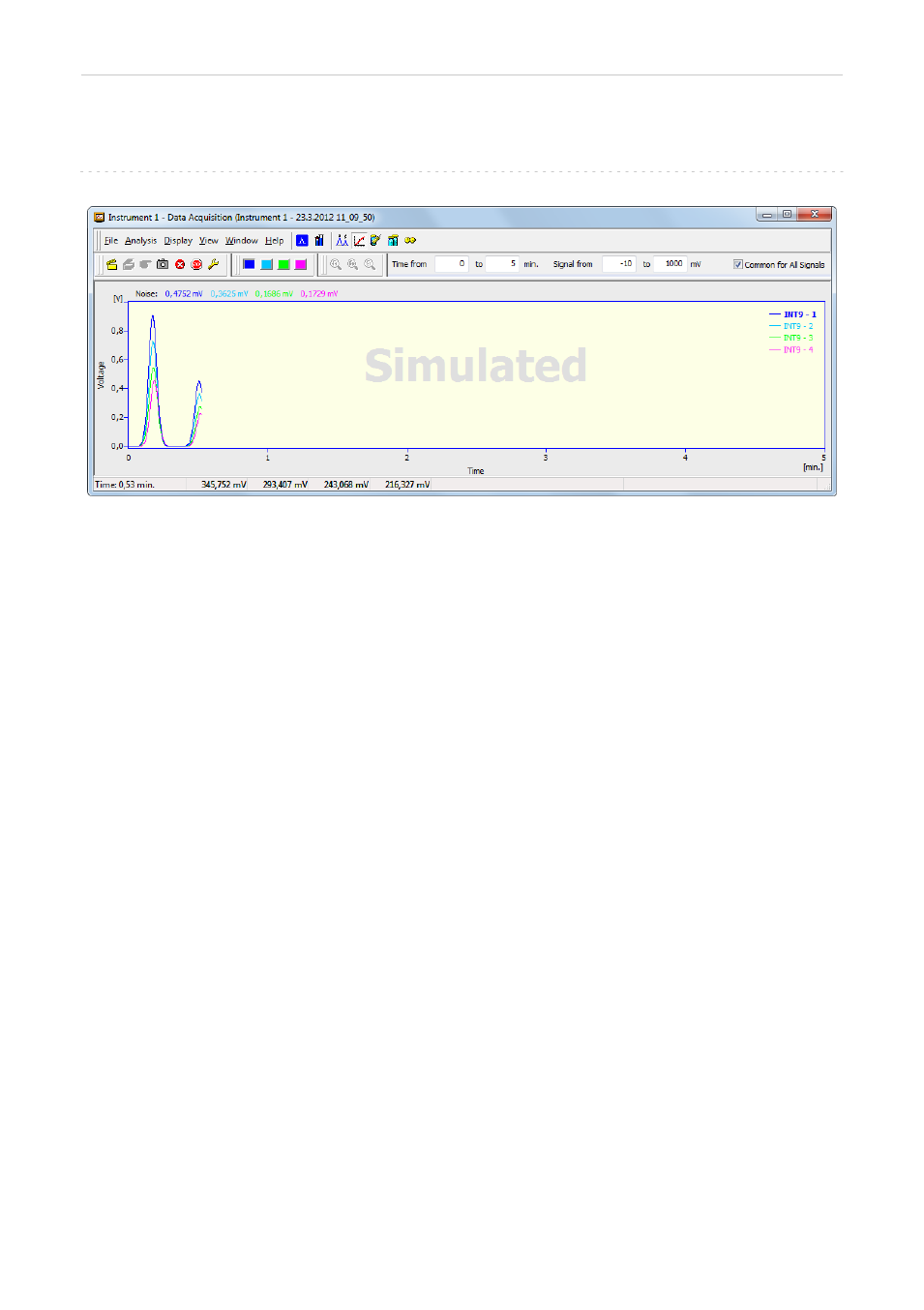

Fig 42: Data Acquisition Simulated
Description: The corresponding Instrument only displays the simulated curve (from the file
CHANNX.DTA file) in the
Data Acquisition window, or in other words has allocated
a DEMO detector on itself.
Solution: Open the System Configuration dialog from the Clarity window using the System -
Configuration... command and check the tab of the corresponding Instrument -
Instrument X . If it only has the detector signals from the DataApex DEMO
detector, it is necessary to reconfigure it. You can find more information how to add
a detector in the chapter "ClarityConfiguration" on pg 8..
If you have a proper detector configured on your Instrument, the Clarity may be in
the DEMO MODE due to improperly entered user code. This is indicated by the
DEMO - TRIAL EXPIRED red label in the main window. If so, check the user code
using the Help - User Code menu in the Clarity main window.
