1 measuring on multiple instruments – Clarity INT9 User Manual
Page 14
INT9 A/D converter
3 Installation
l
Set the Ext. Start Dig. Input and Ready Dig. Output numbers
for your
acquisition card according to the wires being used for synchronization.
Note:
The configuration dialog of the INT9 card (
) can be
displayed any time by double-clicking on its icon or using the Setup button.
3.4.1 Measuring on multiple Instruments
When measuring on multiple instruments using only a single INT9 to
gather data, rather than dragging the entire INT9 icon from the Setup
Control Modules list
, drag the individual detector signals (FID, UV-VIS in
this case) to separate Instruments
. See Fig 6 on pg 10 . The Instrument
to which the particular signal is connected is listed to the right
of the
detector name in the Setup Control Modules section.

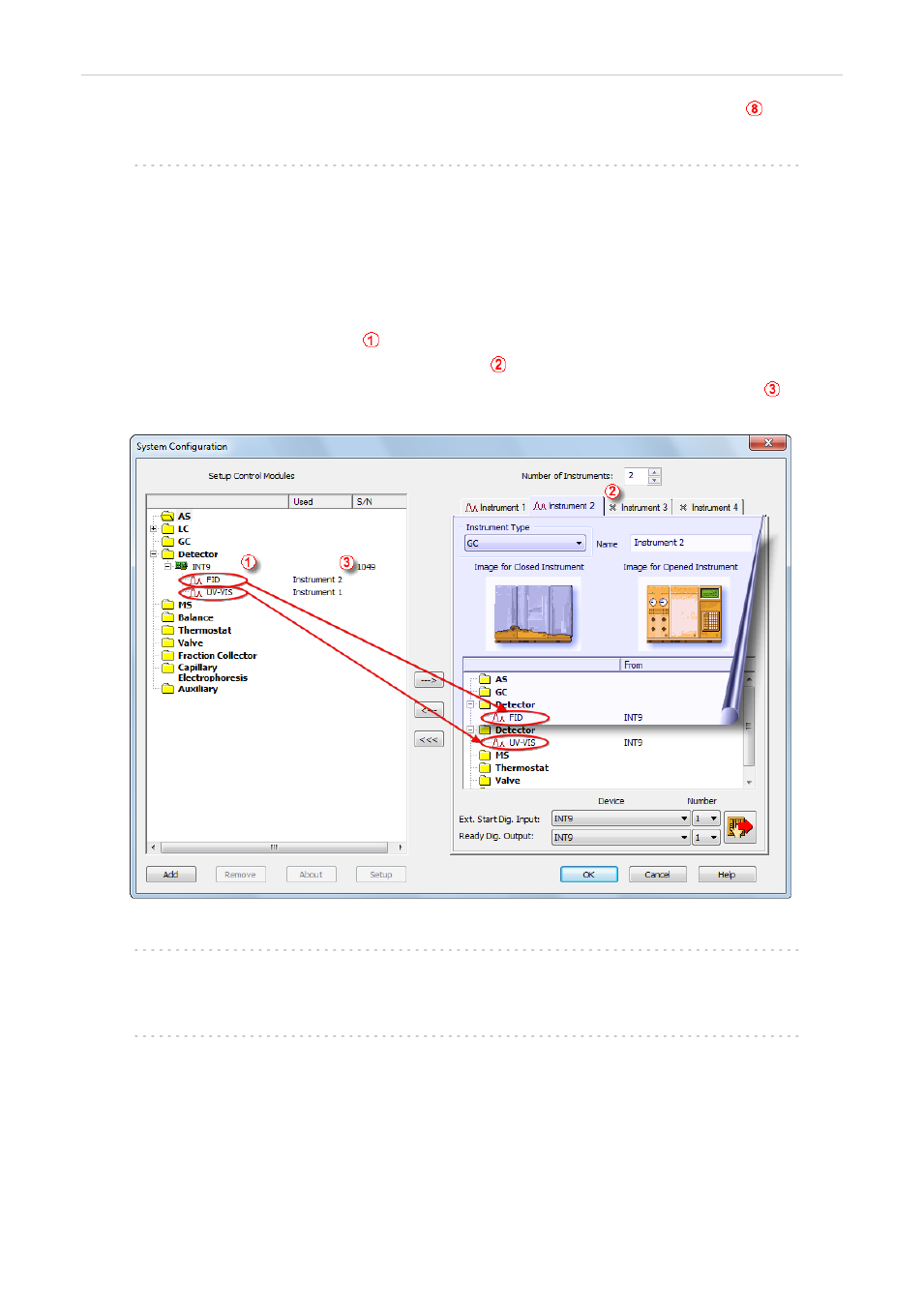

Fig 6: System Configuration – multiple instruments
Note:
Each independent Clarity Instrument must have separate Ext. Start
Dig. Input and Ready Dig. Output pins configured according to the actual
wiring.
Note:
A larger number of Instruments can be set than the amount you have
purchased. You will not be able to measure on the surplus Instruments
(indicated by a blue symbol of the curve on the tab), but you may use them
e.g. for “offline” preparation of methods.
- 10 -
