Installation Instructions
[U ASSEMBLE SURFACE BURNERS (CONT.)
E3 Grates
Single Grates

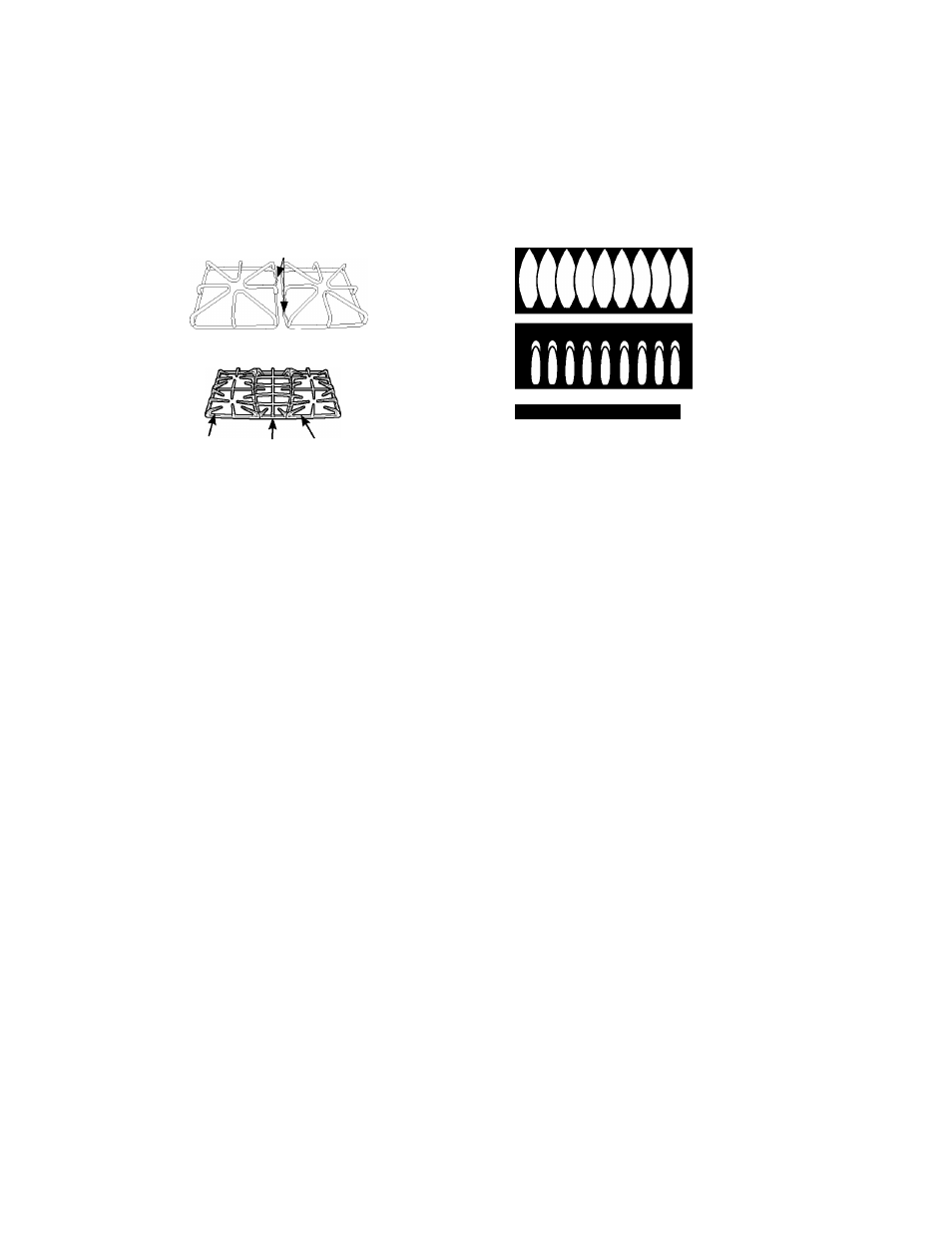

Single grates only fit one way. Locator bumps need
to face each other.
Locator Bumps
Double Grates
Left Front Center Right Front
Place the left, right and center grates on the cooktop.
These grates are position specific. The undersides of
the left and right grates are marked "LEFT FRONT" and
"RIGHT FRONT." On some models the underside of the
grates are marked "Outside". Place the middle grate
with its bowed front toward the front of the range.
A
caution
without all burner parts in place.
Do not operate the burner
^ CHECK IGNITION OF SURFACE
BURNERS
Operation of all cooktop and oven burners should be
checked after the range and gas supply lines hove been
carefully checked for leaks.
Electric Ignition Models
Select a top burner knob and simultaneously push
in and turn to LITE position. You will hear a
clicking sound
indicating proper operation of the spark module. Once the
air has been purged from the supply lines, burners should
light within 4 seconds. After burner lights, rotate knob out
of the LITE position. Try each burner in succession until all
burners have been checked.
^ CHECK IGNITION OF SURFACE
BURNERS (CONT.)
Quality of Flames
The combustion quality of burner flames needs to be
determined visually.
(A) Yellow flames—
Call for service
(B) Yellow tips
on outer cones—
Normal for LP gas
(C) Soft blue
flames—Normal
for natural gas
If burner flames look like (A), call for service. Normal
burner flames should look like (B) or (C), depending on
the type of gas you use.
With LP gas, some yellow tipping on outer cones
is normal.
n
CHECK IGNITION OF OVEN BURNER
The oven is designed to operate quietly and
automatically. To operate the oven, press the Bake pad
and then press the number pads until 350° appears in
the display. Touch the Start pad. After 30-90 seconds,
the oven burner will ignite and burn until the set
temperature is reached. The oven burner will continue
to cycle on and off as necessary to maintain the oven at
the temperature indicated by the display.
To check ignition of the broil burner, touch the Broil Hi/
Lo pad and then the Start pad. After 30-90 seconds, the
broil burner will ignite.
Electric ignition models require electrical power to
operate. In case of a power outage, the oven burners on
these models cannot be lit manually with a match. Gas
will not flow unless the glow bar is hot.
If the oven is in use when a power outage occurs, the
burner will shut off and cannot be re-lit until power is
restored.
