2
11. Locate the cigarette lighter outlet wiring harness.
12. Cut each wire and remove 13 mm (0.5 in.) of insula-
tion from each wire that needs to be soldered/spliced.
13. Place a piece of supplied adhesive lined heat shrink
tubing on one side of each cut wire. Insure the tubing
will be long enough to cover and seal the entire sol-
dered area.
CAUTION: Do not use acid core solder.
14. Solder the supplied fused pigtail to Wi-Fi power har-
ness power wire.

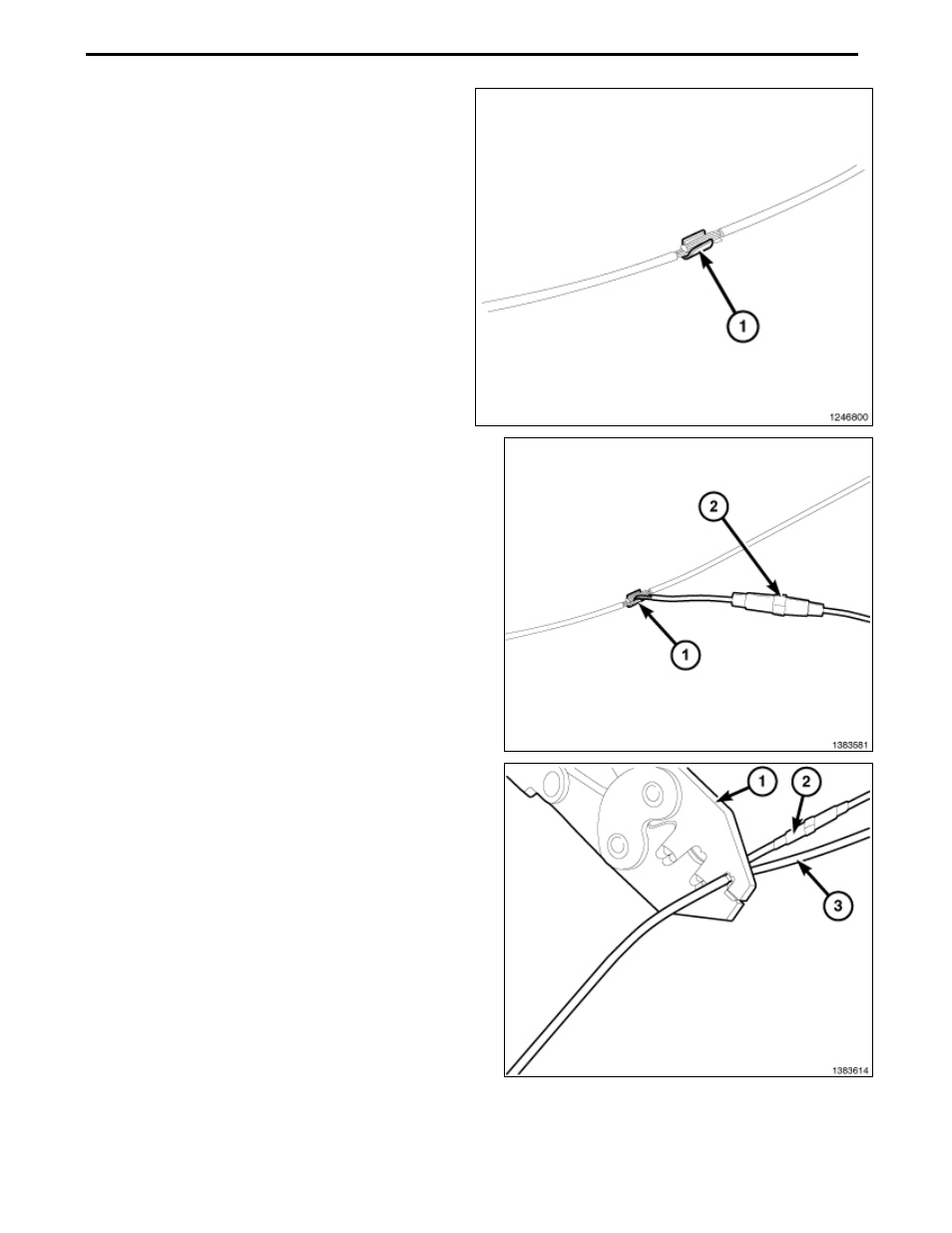

15. Place the strands of the power side wires overlapping each
other inside of the splice clip (1).
16. Using crimping tool (1), Mopar® p/n 05019912AA or equiv-
alent, crimp the splice clip and wires together.
17. Repeat the previous two steps for the ground side wires.
Aug 08, 2008
K6860631 Rev. 1
