3

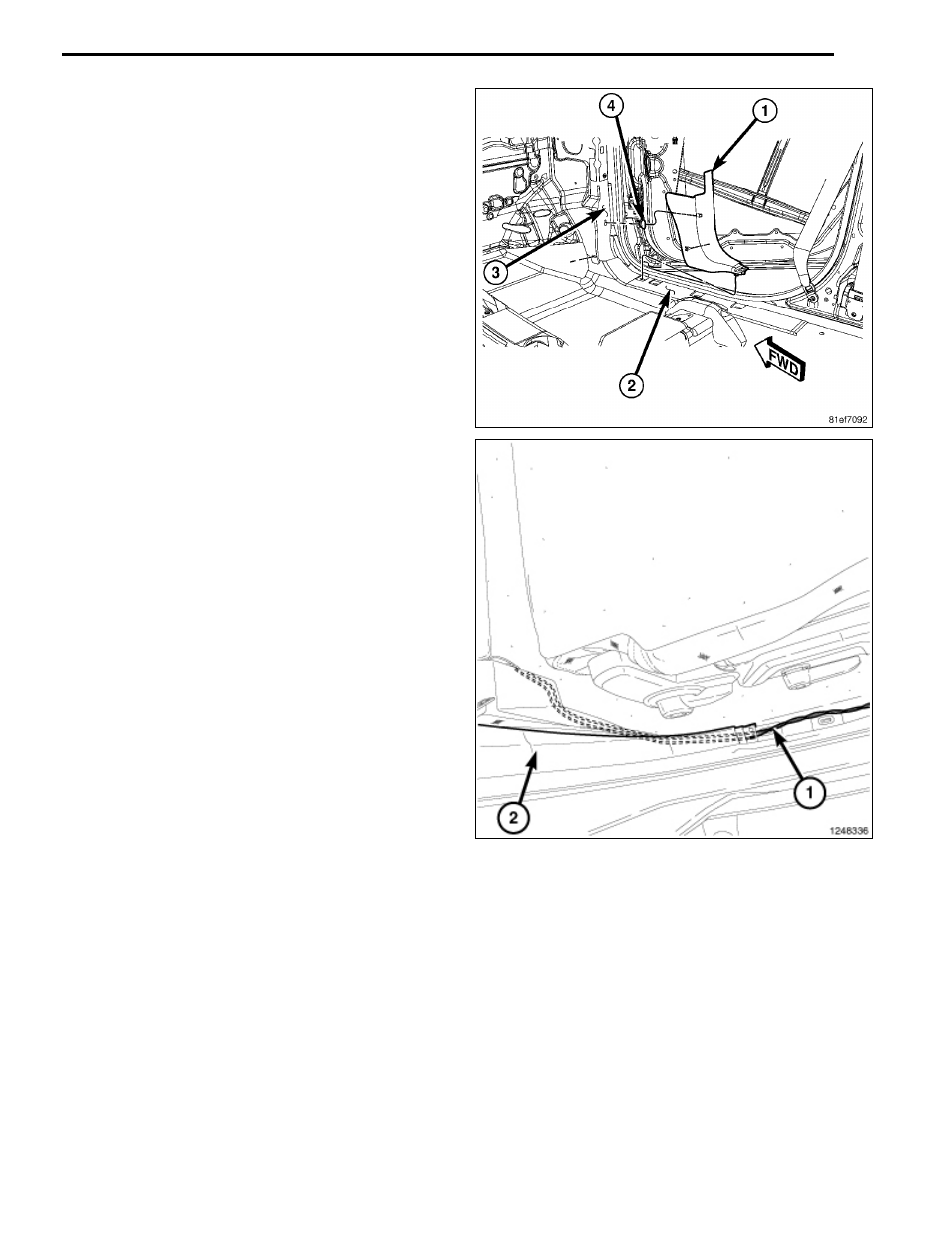

12. Using a trim stick C-4755, disengage the cowl trim
panel clips from the corresponding locations in the
sheet metal.
13. Remove the cowl trim panel from the vehicle.
14. Remove the passenger side closeout panel push pins
fastening the closeout panels to the bottom of the in-
strument panel.
15. Remove the closeout panels from the instrument
panel.
16. Position the second row passenger side seat flat.
17. Route the Wi-Fi power harness under the quarter trim
panel.
18. Route the Wi-Fi power harness under the b-pillar trim
panel.
19. Route the Wi-Fi power harness to the passenger side
cowl area.
