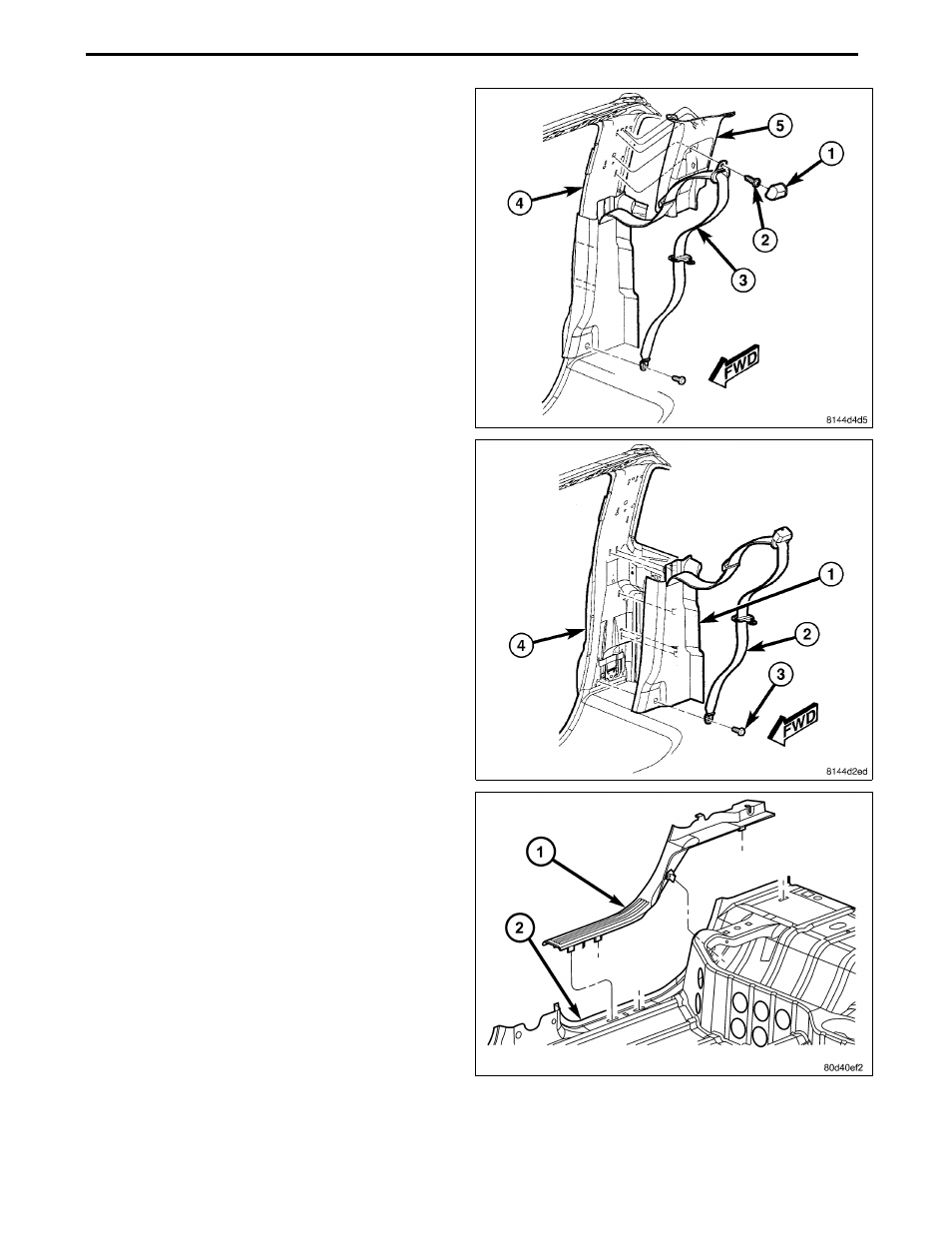

7. Remove the cap (1) and then the bolt (2) that secures
the seat belt (3) to the top of the C-pillar (4) and posi-
tion the seat belt out of the way.
8. Using a trim stick C-4755 or equivalent, disengage the
retaining tabs that secure the upper C-pillar trim panel
(5) to the C-pillar and remove the trim panel.
9. Remove the bolt (3) that secures the seat belt (2) to
the bottom of the C-pillar (4) and position the seat belt
out of the way.
10. Using a trim stick C-4755 or equivalent, disengage the
retaining tabs that secure the lower C-pillar trim panel
(1) to the C-pillar.
11. Remove the seat belt from the lower C-pillar trim panel
through the slot provided and remove the trim panel.
12. Using a trim stick C-4755 or equivalent, disengage the
retaining tabs of the sill trim panel (1) from the retainer
clips in the rear door sill (2) and remove the trim panel.
Aug 08, 2008 K6860631 Rev. 1
