6

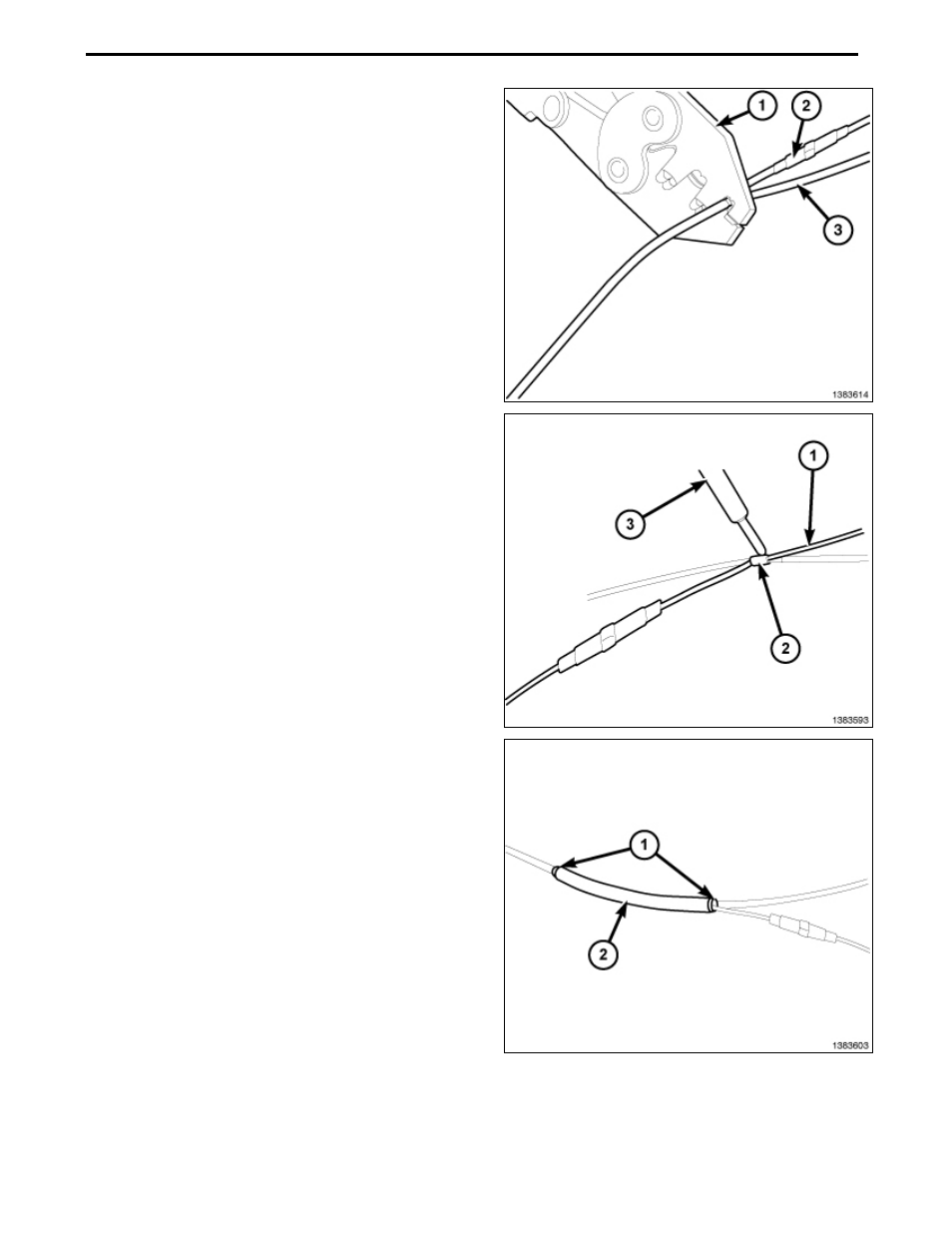

31. Using crimping tool (1), Mopar® p/n 05019912AA or equiv-
alent, crimp the splice clip and wires together.
32. Repeat the previous two steps for the ground side wires.
33. Solder (3) the connection (2) together using rosin core sol-
der (1).
34. Center the heat shrink tubing (2) over the solder joint and
heat using a heat gun. Heat the joint until the tubing is
tightly sealed and sealant (1) comes out of both ends of
the tubing.
Aug 08, 2008
K6860631 Rev. 1
