6

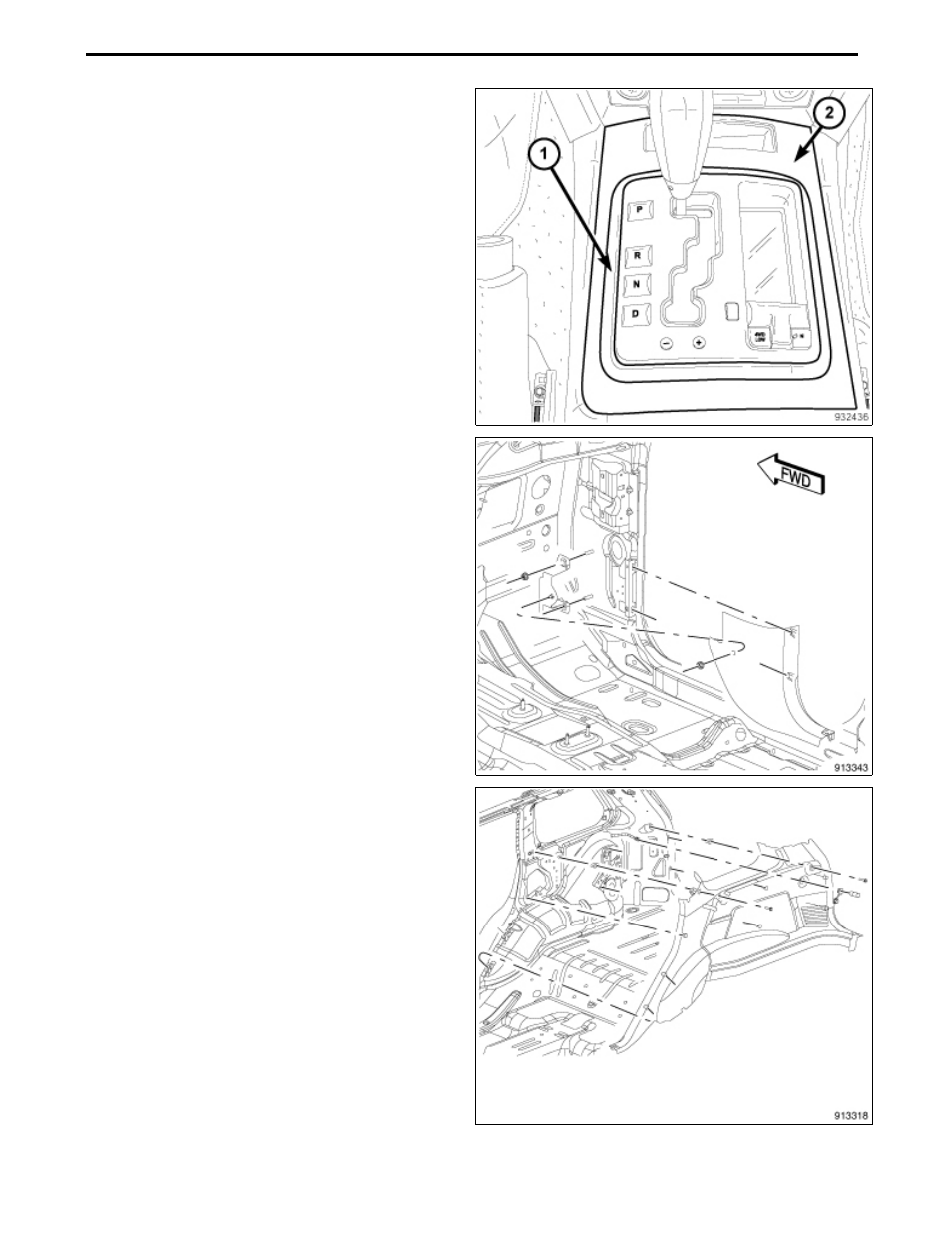

28. Install the shifter trim (2) and bezel (1).
29. Align the fastener hole in the cowl trim panel with the
stud on the mounting bracket and then seat the trim
panel onto the mounting bracket.
30. Install the nut that secures the cowl trim panel to the
mounting bracket.
31. Install the hush panel.
32. Position the quarter trim panel in the vehicle.
33. If equipped, connect the wire harness connector to the
power outlet.
34. Position the flange on the quarter trim panel into the
seal ditch and secure the bottom clip first and then the
middle clip.
35. Align the two fastener holes in the quarter trim panel
with the two fastener holes in the quarter panel and
engage the retaining tabs that secure the quarter trim
panel to the quarter panel.
36. Install the two screws that secure the quarter trim
panel to the quarter panel.
