Page 118
4
23. Remove the screws and the cargo tie downs.

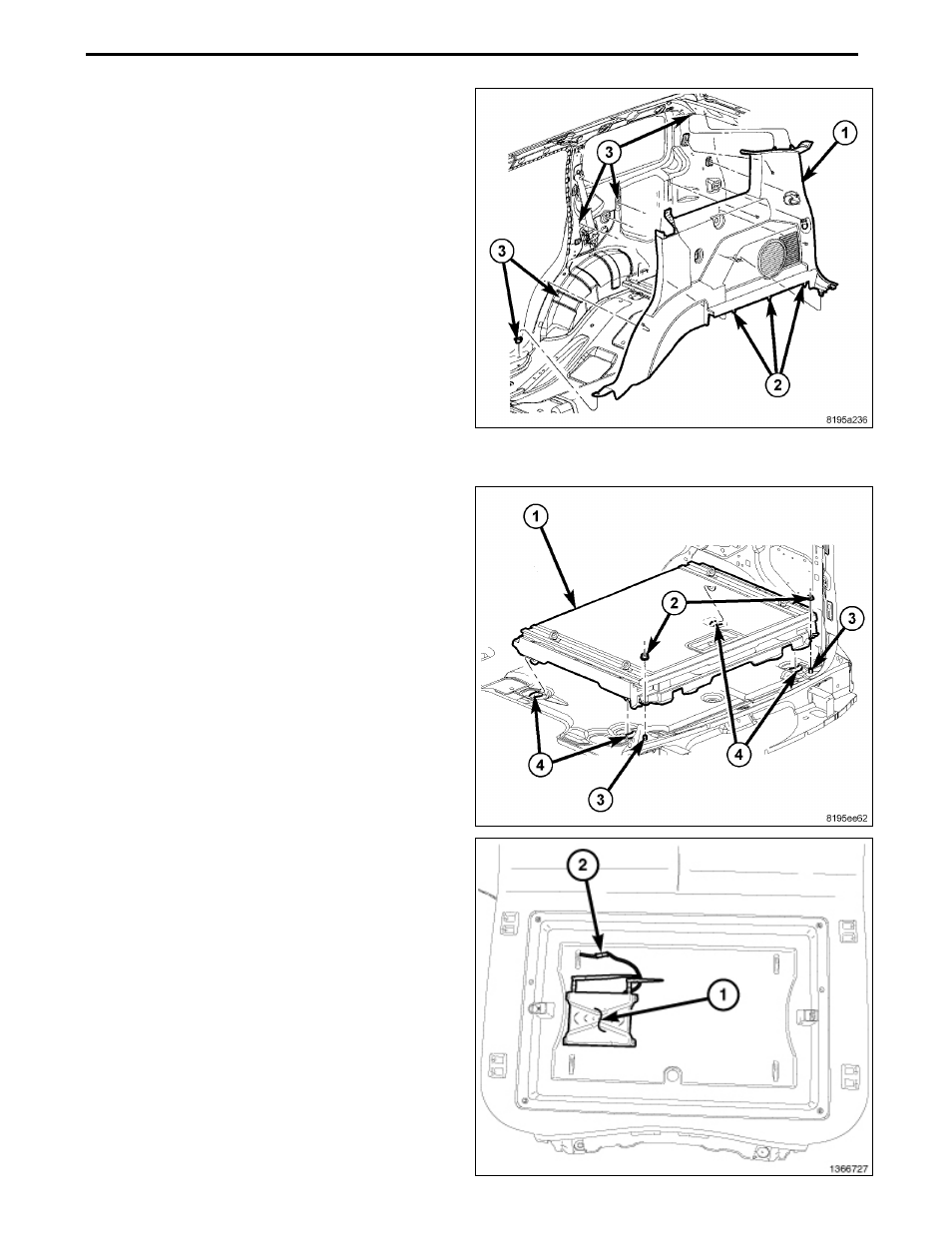

24. Remove the quarter trim panel (1), by carefully pulling
at the clip locations (3).
NOTE: The load floor on Jeep Liberty must be removed in order to route the Wi-Fi router harness. Repeat steps
11 through 24 on the drivers side to remove the load floor assembly.
25. Remove the lift gate opening scuff plate.
26. Liberty only, remove the nuts (2) and lift the rear of
the floor panel (1) up and rearward to release from the
body hooks (4).
27. Access the storage compartment.
28. Drill a 13mm. (0.5 in.) hole in the drivers side front
lower corner of the storage compartment, forward to-
ward the instrument panel.
29. Route the Wi-Fi electrical harness through the hole
and connect to the router.
30. Squarely position the router near the hole and secure
in place with the materials provided.
31. Route and secure the Wi-Fi power harness (2) from
the rear quarter panel, along the passenger side and
underneath the door sill scuff plate.
32. Route and secure the Wi-Fi power harness under the
glove box opening and behind the center stack and
cut the harness to the proper length.
Aug 08, 2008
K6860631 Rev. 1
