4

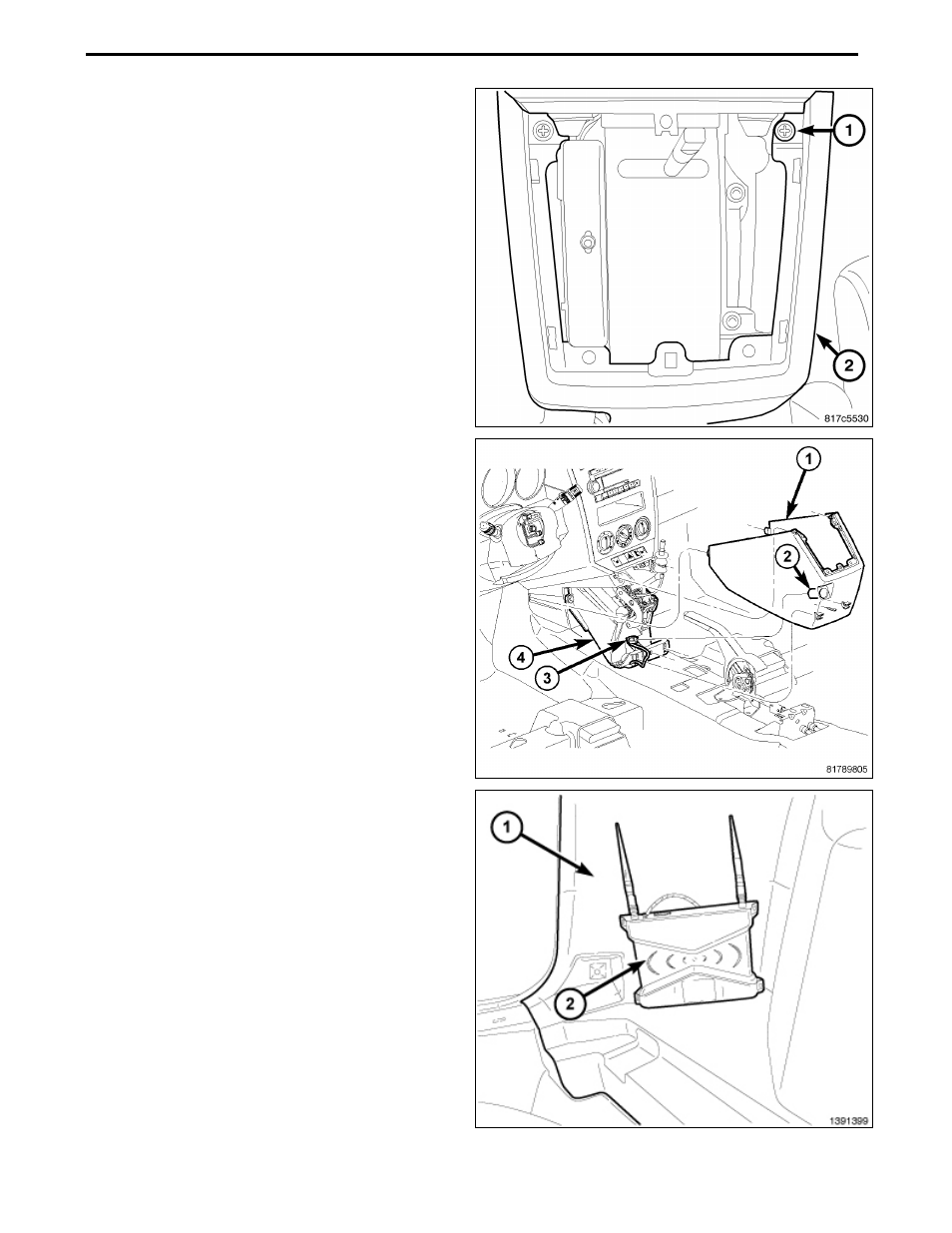

22. Remove the two screws (1).
23. Pull on side of housing (1) and unsnap housing tabs.
24. Disconnect console housing wire connector (2) and in-
strument panel connector (3).
25. Remove from vehicle.
26. Mount the router to the left quarter trim panel with the
provided materials.
27. Cut a small opening in the quarter trim panel and route
the Wi-Fi router connect through the opening.
28. Place the quarter trim panel into position, but do not
engage the clip retainers at this time.
29. Connect the harness to the Wi-Fi router connect and
route the cable forward through the vehicle while tap-
ing to the body electrical harness.
