7

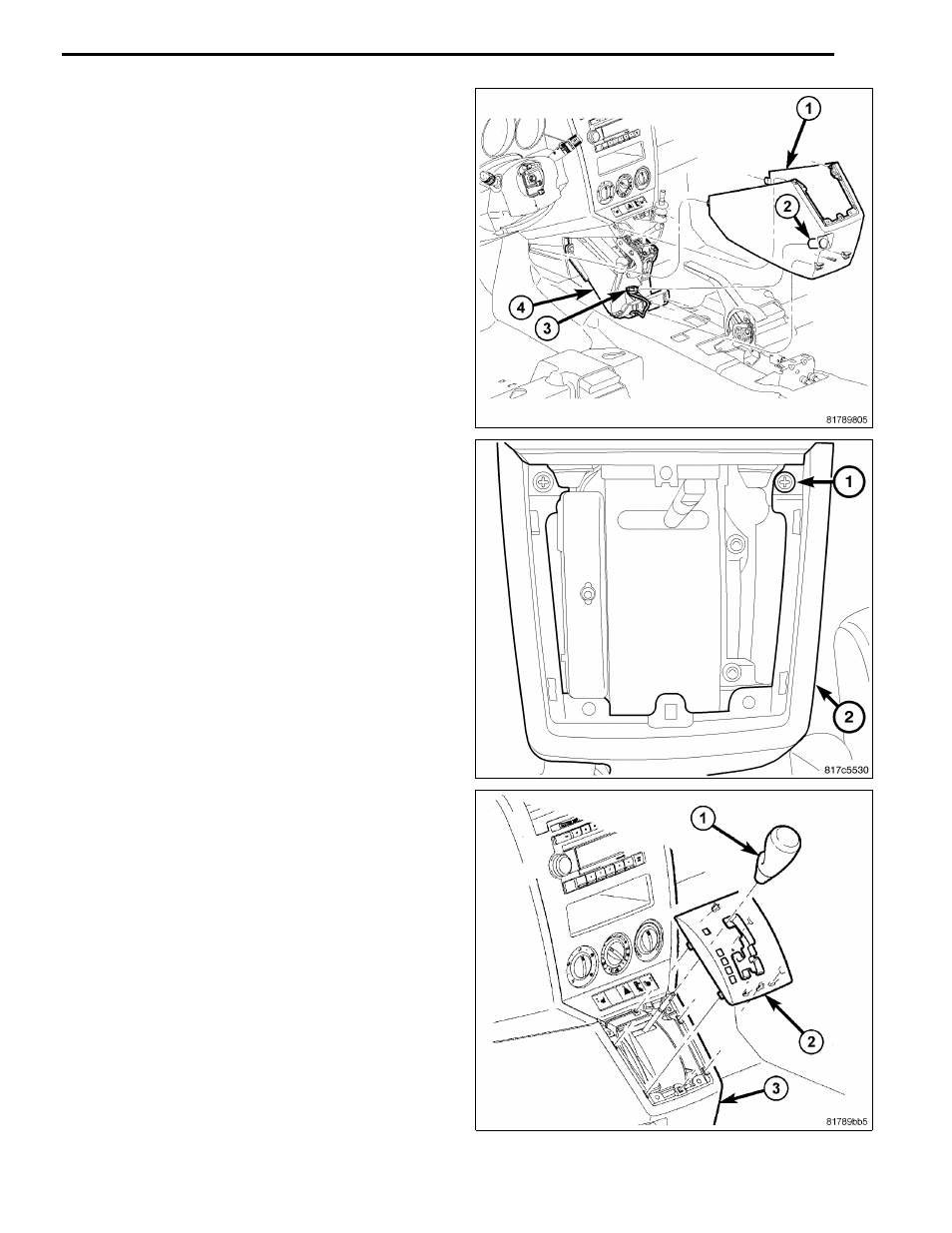

40. Connect center console housing wire connector (2)
with instrument panel connector (3).
41. Place console housing (1) over shifter lever ensuring
console tabs seat properly.
42. Install the two screws (1).
43. Insert bezel (2) locator to shifter pod (3).
44. Apply hand pressure until clips are seated.
45. Snap shifter knob (1) onto shifter shaft.
46. Pull up on knob (1) to verify seated correctly.
Aug 08, 2008
K6860631 Rev. 1
