Install the blind nut in the wheel pant using the

4-40 bolt to pull it into the hole.

Wheel Collars

Wheel Pant

Wheel

Landing Gear

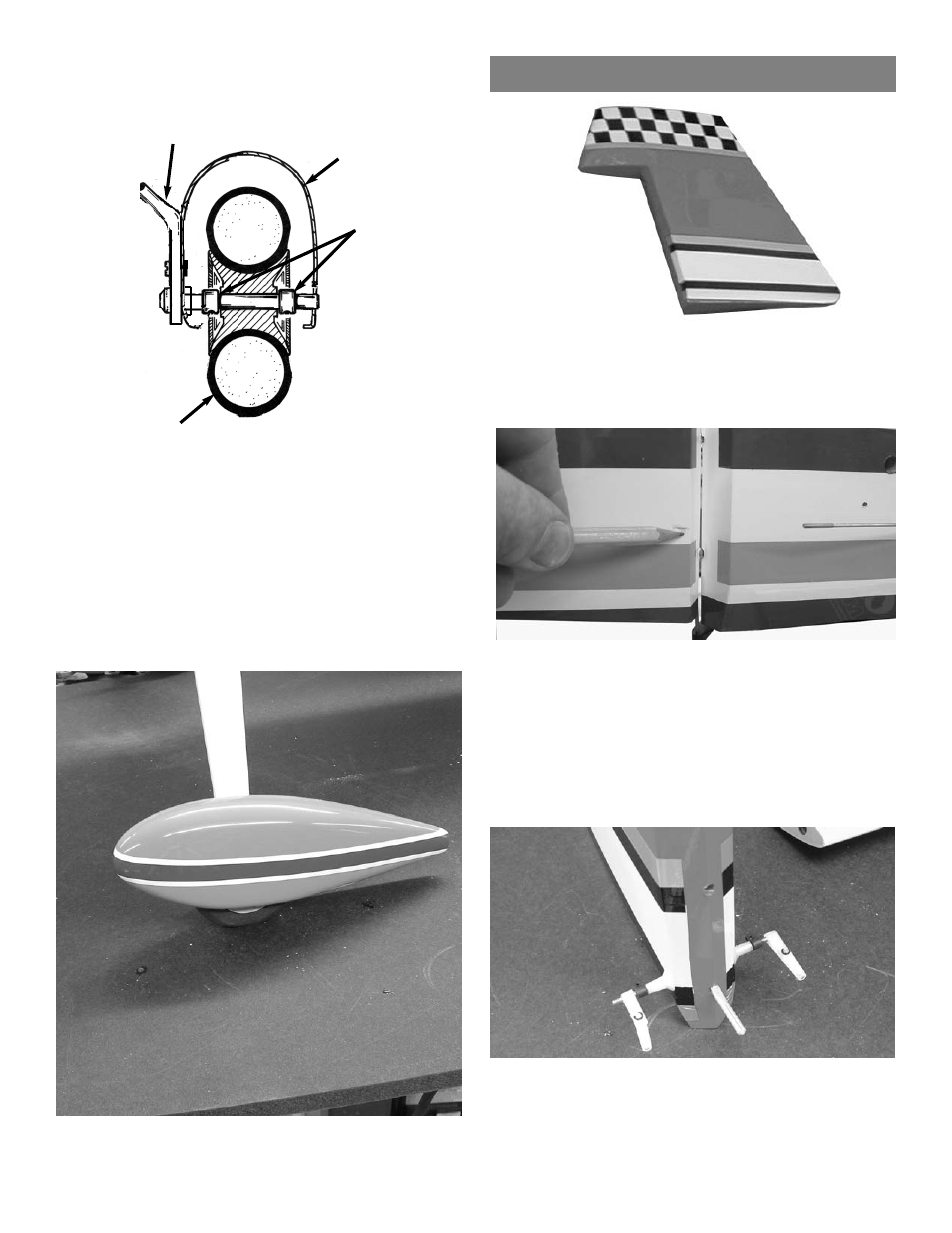

Mount the wheel pant on the landing gear

along with the wheel collars and wheels.
Center the wheel on the axle.
Use the 4-40 x 1/2” bolt to hold the wheel pant

to the gear. Be sure to use lock-lock on the

bolts.

HINGING RUDDER

Locate the rudder and four hinges
Trial fit the hinges to make sure they all go up

to the hinge pin in rudder and fin.

Trial fit the rudder in place on the fin. Make

sure the hinge line is tight and the counter bal-

ance does not rub on the top of the fin.
Insert a piece of wire into the outlet hole for

the rudder cable (holes are just below the ele-

vator servo cutout) and make a mark on the

rudder in line with the outlet hole.

Transfer the mark to the other side of the rud-

der
Drill a 9/64” hole at the location marked. Drill

half way from each side until the hole is com-

pletely through.
