13

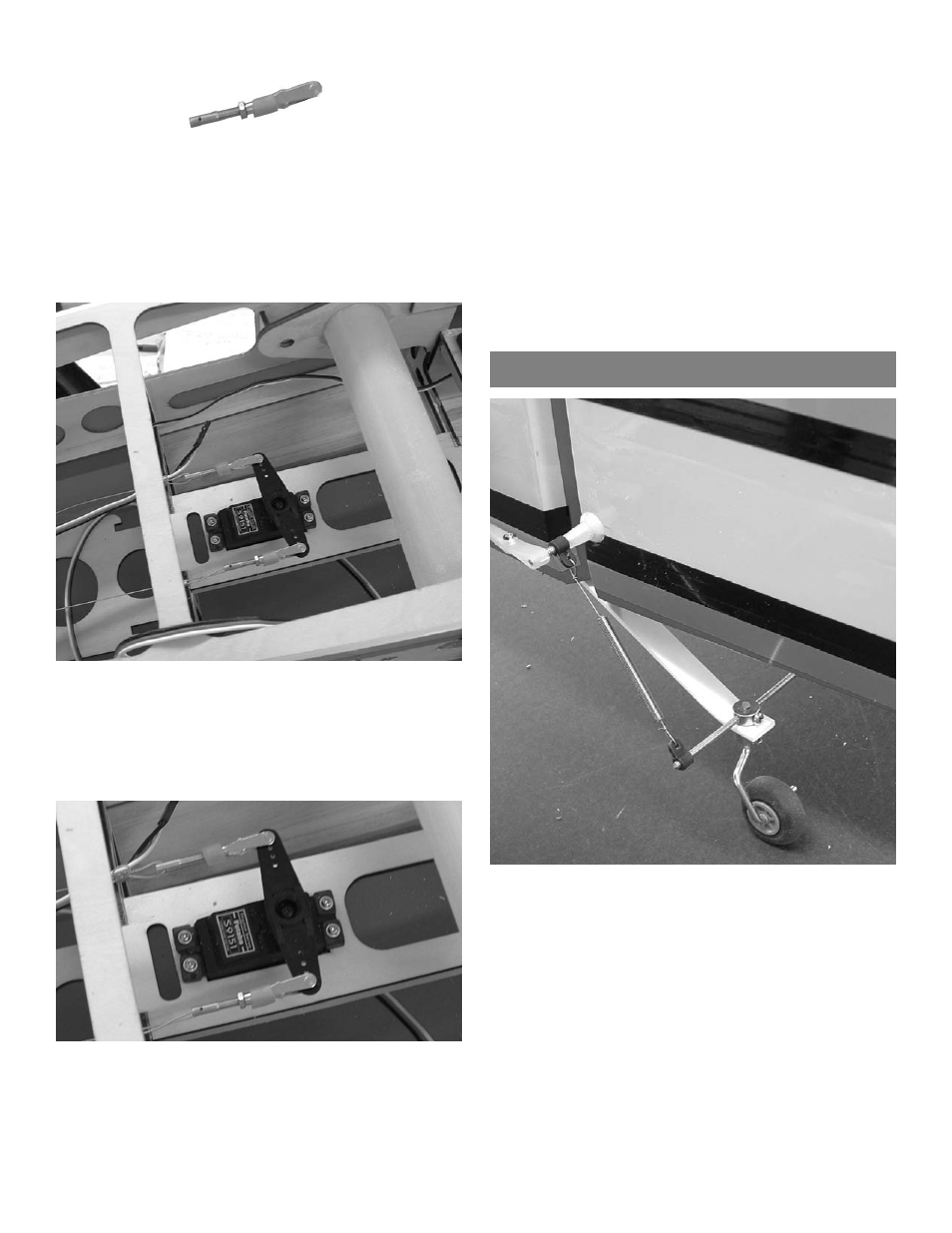

8. Tape the rudder in the neutral position.
Make sure the rudder servo is centered.
Thread each cable through one of the
swages, through the rigging coupler and back
through the swage.
Pull both cables tight, loop through the swage
again, and crimp.
9. Adjust the cables tight using the clevis, then
tighten the lock nut on the rigging coupler
against the clevis.
5. Slide the silicone keeper on the clevis and
screw the rigging coupler with the jam nut into
the clevis.
Leave room for adjustment,you will need to
tighten the cables.
6. Mount the rudder servo in the hole provided in
the servo tray.
You will need a double sided heavy duty servo
arm on your rudder servo.
7. Connect the two clevises to the output arm on
your servo.
Tail Wheel Springs
1. Loop the straight end of the spring through the
pushrod connector on the rudder horn.
Use about 1/2 the length of the straight wire and
bend around and wrap.
Repeat for the other side.
2. Take the other end of each spring and loop
through the pushrod connector on the tail wheel
tiller arm.
Make sure rudder is straight and tailwheel is
straight.
Pull just a little tension on the springs and bend
and wrap the ends.
