12

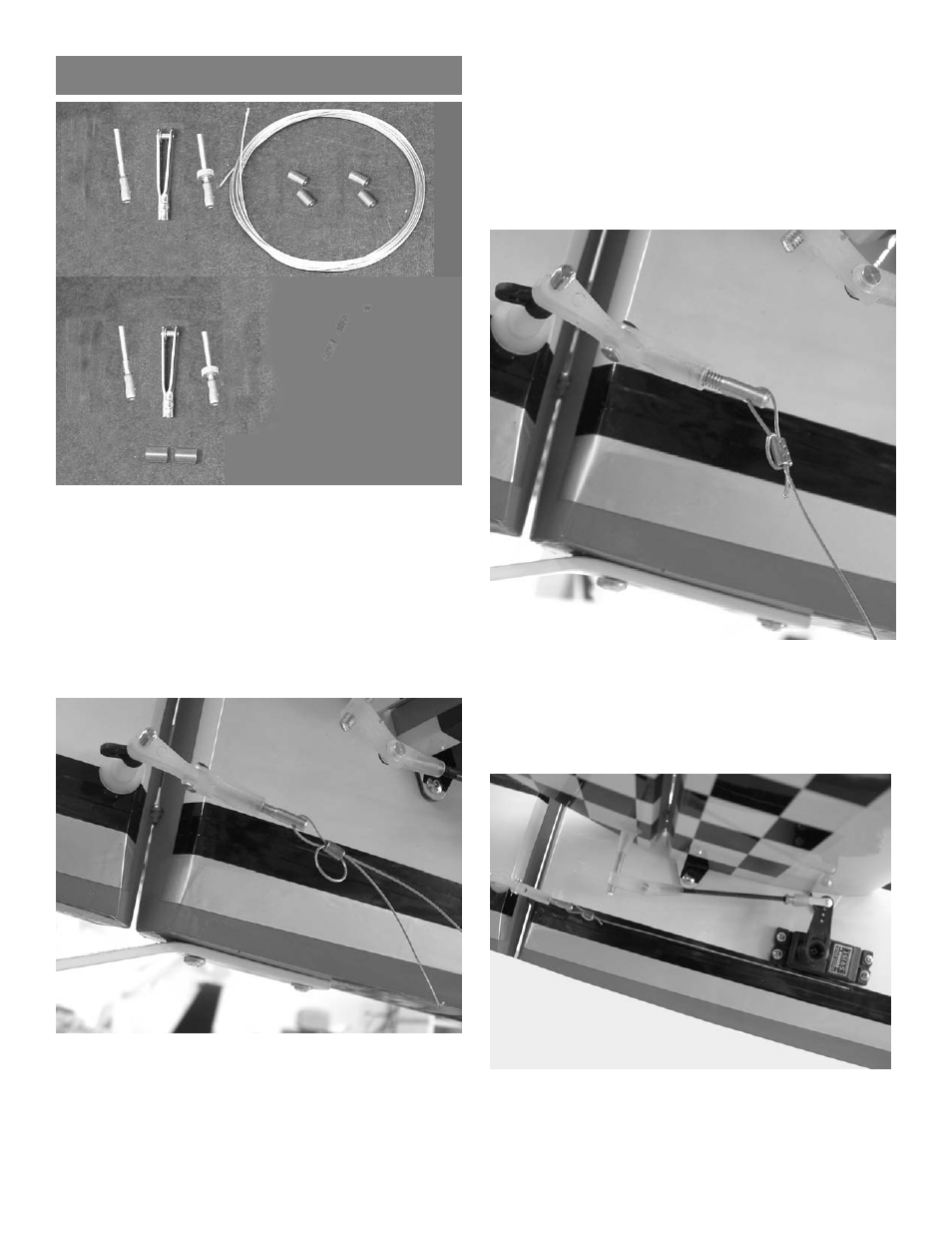

Rudder Servo Installation
1. Collect the following parts:
(2) 4-40 clevis
(2) silicon clevis keepers
(2) rigging couplers with nuts
(2) rigging couplers without nuts
(4) brass cable swages
(6-1/2’) braided cable
2. Take the end of the braided cable and thread
through one of the brass cable swages, then
through one of the rigging couplers.
Loop the cable back through the cable swage.
Take the end and loop it back around the
cable swage and go through the swage again.
2. Screw one of the rigging couplers without a
nut into the control horn on the rudder.
Cut the braided cable into two equal lengths.
3. Pull the cable tight and crimp the swage.
Repeat for the other side.
4. Thread the cables through the holes in the
fuselage side located just under the elevator
servo.
