Install your new Braeburn thermostat in 5 basic steps:

1 Install the Sub-Base
2 Provide Power
3 Connect Your Wires
4 Set Installer Switches
5 Attach Thermostat to Sub-Base

Install the Sub-Base:

• Remove the sub-base from the body of the thermostat.

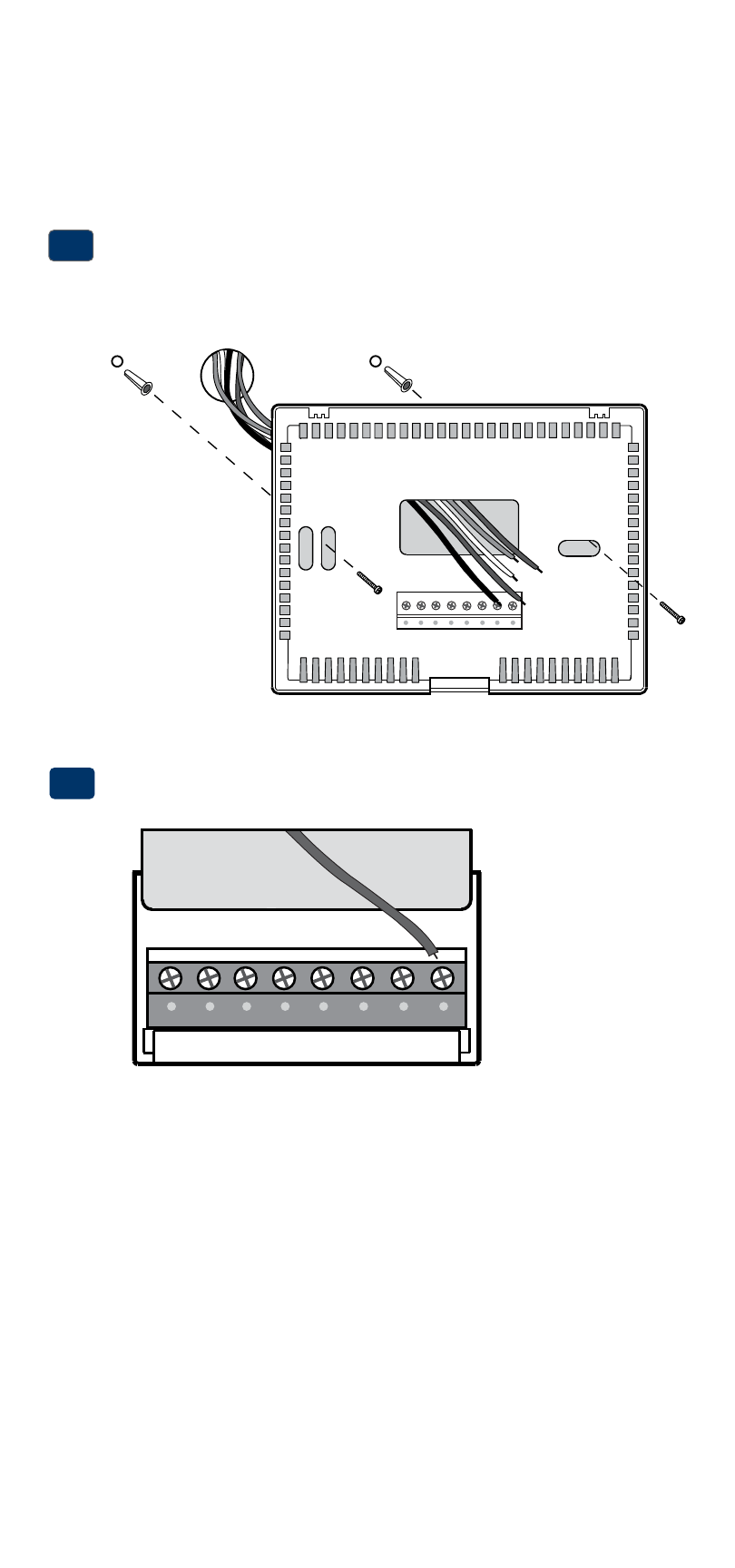

• Mount the sub-base as shown below:

Drill 3/16” pilot holes in
your desired location.
Use supplied anchors for
drywall or plaster.

Provide Power

•

For 24 Volt AC power, you must connect the common side of the trans-

former to the C terminal on the thermostat sub-base.
•

For primary or back-up power, insert the 2 supplied “AA” type

alkaline batteries into the battery compartment located in the front of
the thermostat, near the bottom. Make sure to position the Positive
(+) and Negative (-) sides of the batteries correctly with the +/- symbols
in the battery compartment.

24VAC Power
Terminal (C)
