1
5 Setting User Options
6 Operating Your Thermostat
7 Additional Operation Features
8 Thermostat Maintenance
For installation by experienced service
technicians only. Follow applicable codes.

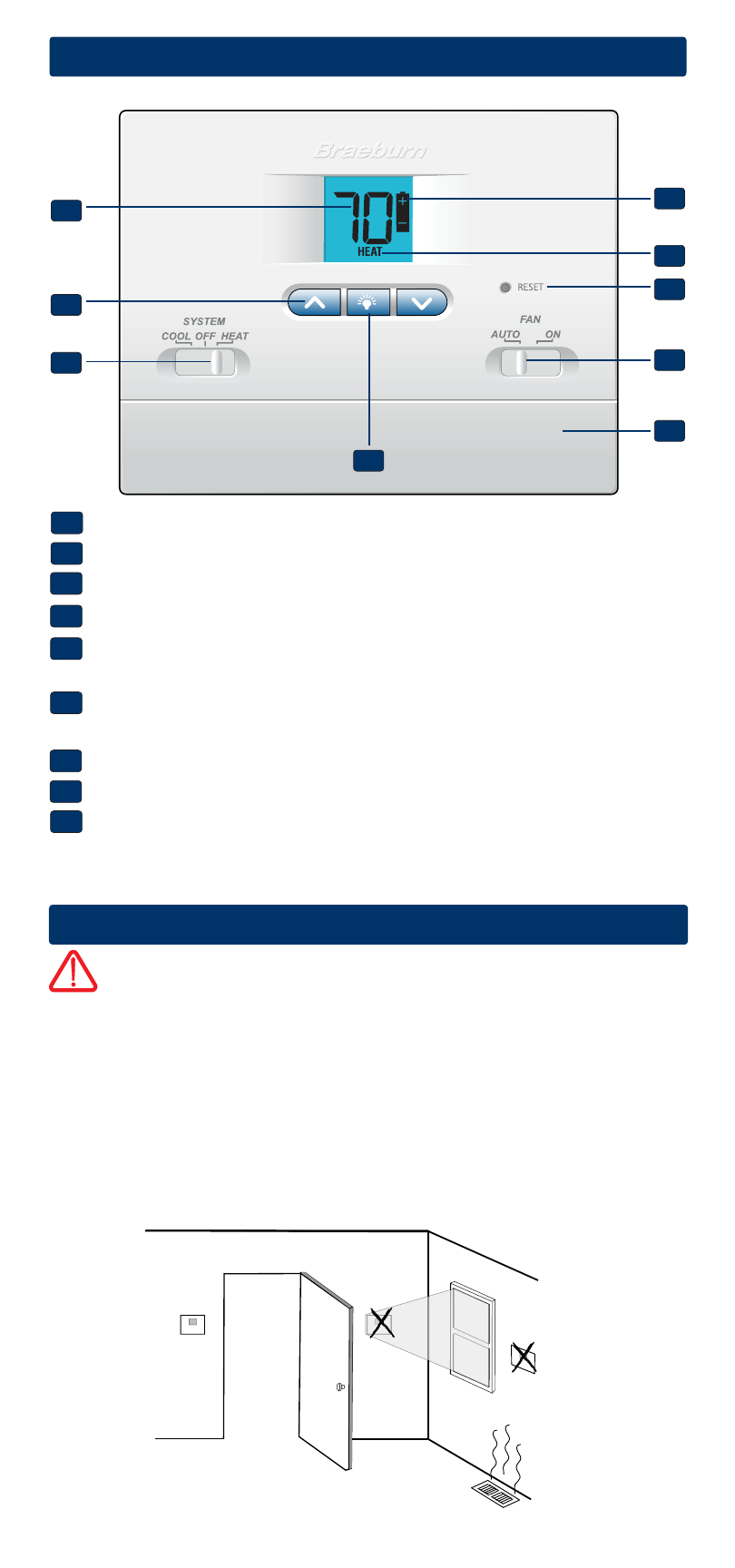

2 About Your Thermostat
3 Installation
Warning
Disconnect power before beginning installation.
Thermostat Location
Install the thermostat approximately 4-5 feet (1.5m) above the floor in an
area that has a good amount of air circulation and maintains an average
room temperature.
Avoid installation in locations where the thermostat can be affected by
drafts, dead air spots, hot or cold air ducts, sunlight, appliances, concealed
pipes, chimneys and outside walls.
2
3
4
5
8
7
9
6
1
Room Temperature ........... Displays the current room temperature
Arrow Buttons .................. Used to increase or decrease settings
System Switch .................. Selects Heat, Cool or Off
Backlight Button .............. Illuminates the display backlight
Low Battery Indicator ...... Indicates when the batteries need to
be replaced
System Status Indicator ... Displays information about the status of
the system
Reset Button ..................... Resets thermostat back to factory defaults
Fan Switch ........................ Selects the system fan mode
Battery Compartment ....... Located in the back of the thermostat
1
2
3
4
5
6
7
8
9
