9 Installer Guide
INSTRUCTIONS
DAY/TIME
BACK
NEXT
15
16
23
17
18
19
20
21
22
Room Temperature ...................... Displays the current room temperature
Set Temperature .......................... Displays the current set point temperature
BACK Indicator* ........................... BACK button is active
NEXT Indicator*............................ NEXT button is active
Outdoor Temperature Indicator ... Displays along with the outdoor temperature reading**
Service Indicators ...................... Displays various service/maintenance information
Fan Indicator ................................ Indicates when the system fan is running
Low Battery Indicator .................. Indicates when the batteries need to be replaced
Hold Mode Indicator ................... Indicates if the thermostat is in HOLD mode
Lock Mode Indicator ................... Indicates if the thermostat is locked
System Status Indicator ............. Displays information about the status of the system
Day of the Week ........................... Displays the current day of the week
Program Event Indicator.............. Displays the program event
Time of Day ................................. Displays the current time of day
*
BACK
and
NEXT
are secondary functions of the
PROG
and
HOLD
buttons. When in programming or
configuration modes,
BACK
and
NEXT
appear in the display screen indicating that the
PROG
and
HOLD
buttons now function as
BACK
and
NEXT
.
** Also see #24 on page 9.
24

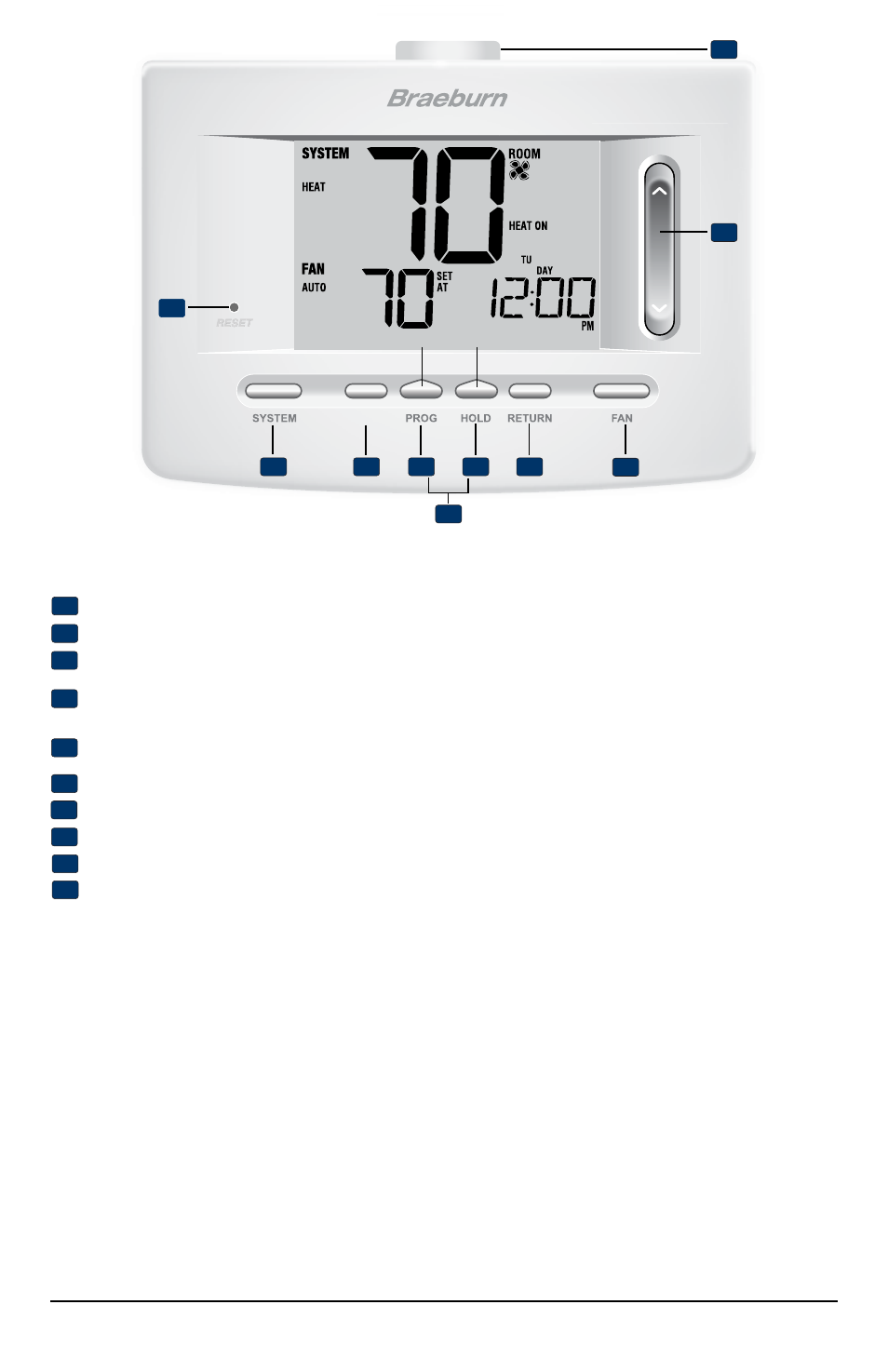

Reset Button ............................... Resets current time, program and user settings
SYSTEM Button ............................ Selects the system you want to control
DAY/TIME Button .......................... Sets the current time and day of the week
PROG Button................................. Selects programming mode or press for 3 seconds to select SpeedSet
®
BACK Button* ............................... Secondary function of the PROG button - moves back a setting
HOLD Button ................................. Enters/Exits the HOLD mode (program bypass)
NEXT Button* ............................... Secondary function of the HOLD button - moves to next setting
RETURN Button ............................ Returns to normal mode from program or setting modes
FAN Button ................................... Selects the system fan mode
Quick Reference Instructions ...... Stored in slot located at top of thermostat
SpeedBar
®
................................... Increases or decreases settings (time, temperature, etc.)
Outdoor Temperature ................... If a Braeburn
®
outdoor sensor was connected you can view the outdoor
temperature by pressing the
PROG
and
HOLD
buttons at the same time.
Battery Compartment .................. Located in the back of thermostat
Thermostat
15
16
17
18
19
20
21
22
23
24
*
BACK
and
NEXT
are secondary functions of the
PROG
and
HOLD
buttons. When in programming or
configuration modes,
BACK
and
NEXT
appear in the display, indicating that the
PROG
and
HOLD
buttons
now function as
BACK
and
NEXT
.
