Installer Guide 8
3 Quick Reference
1
2
3
4
7
8
9
10
11
5
6
12
13
14
Room Temperature ...................... Displays the current room temperature
Set Temperature .......................... Displays the current set point temperature
BACK Indicator* ........................... BACK button is active
NEXT Indicator*............................ NEXT button is active
Outdoor Temperature Indicator ... Displays along with the outdoor temperature reading**
Service Indicators ...................... Displays various service/maintenance information
Fan Indicator ................................ Indicates when the system fan is running
Low Battery Indicator .................. Indicates when the batteries need to be replaced
Hold Mode Indicator ................... Indicates if the thermostat is in HOLD mode
Lock Mode Indicator ................... Indicates if the thermostat is locked
System Status Indicator ............. Displays information about the status of the system
Day of the Week ........................... Displays the current day of the week
Program Event Indicator.............. Displays the program event
Time of Day ................................. Displays the current time of day
1
2
3
4
5
6
7
8
9
10
11

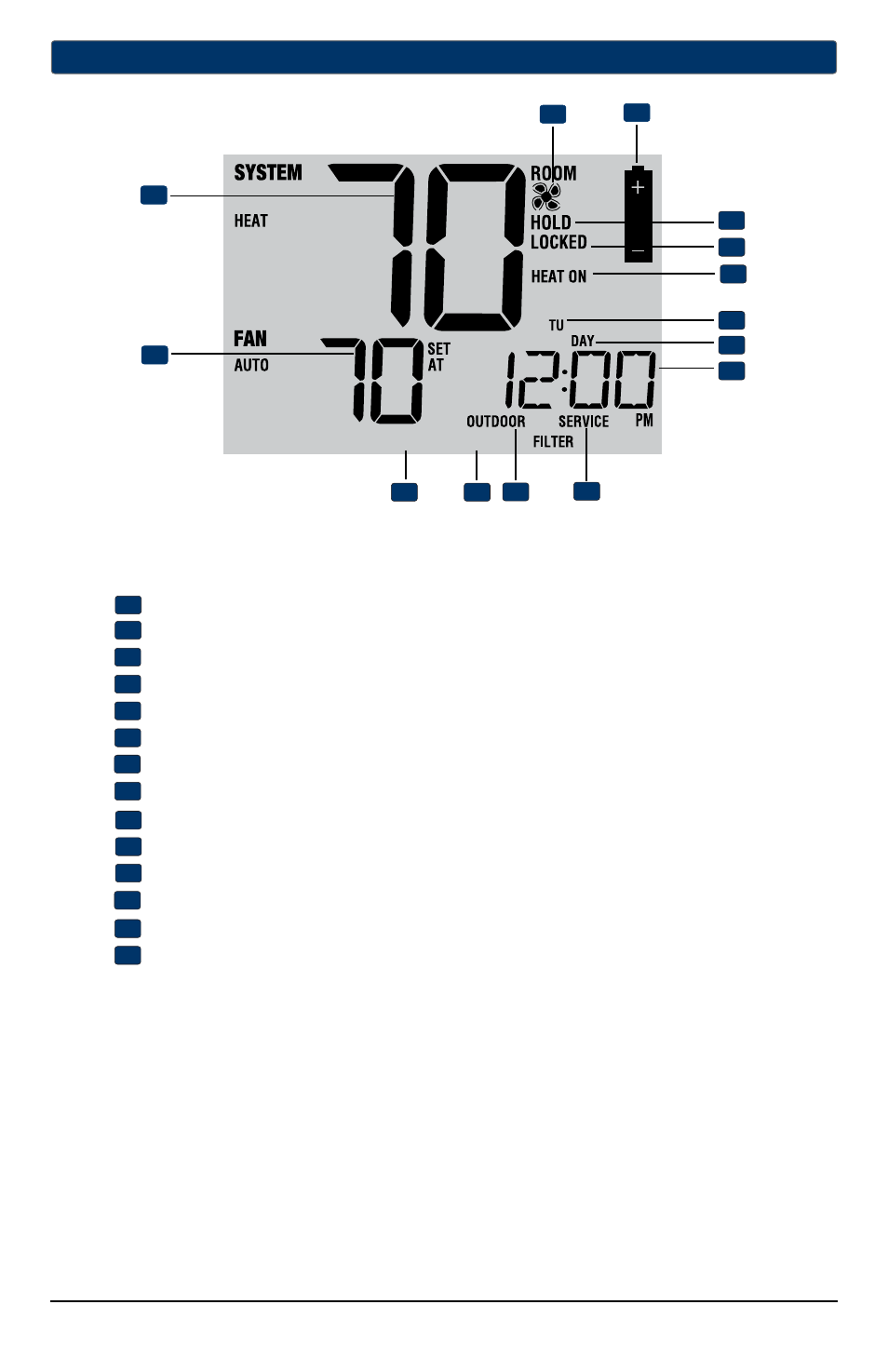

Thermostat Display
12
13
14
*
BACK
and
NEXT
are secondary functions of the
PROG
and
HOLD
buttons. When in programming or
configuration modes,
BACK
and
NEXT
appear in the display screen indicating that the
PROG
and
HOLD
buttons now function as
BACK
and
NEXT
.
** Also see #24 on page 9.
