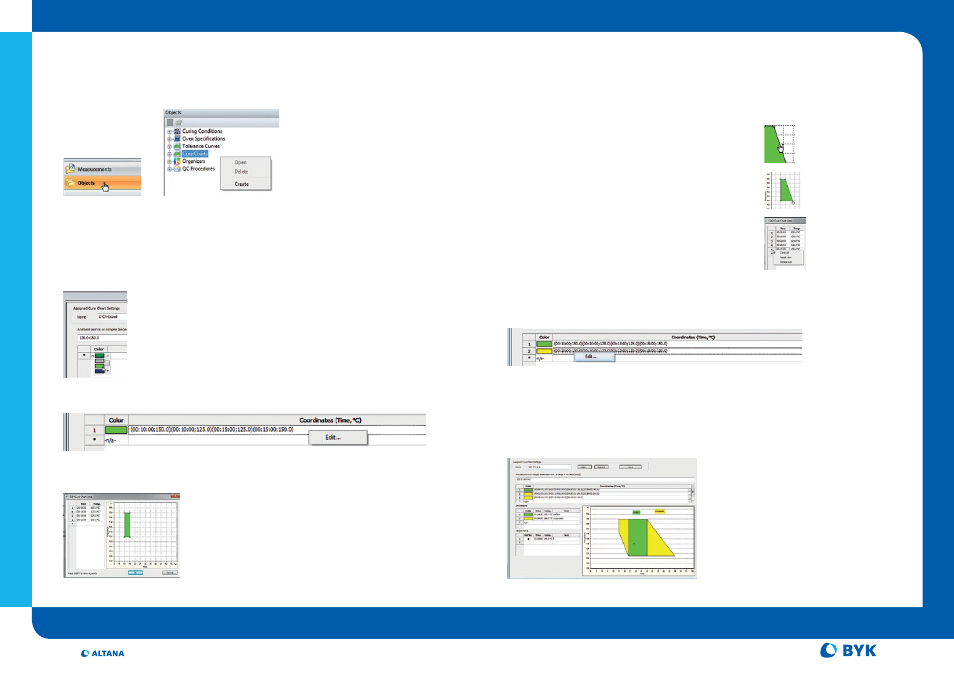

How to create a Cure Chart?
• Select Objects
• Select Cure Chart
• There are different possibilities to edit the area
g Typing into the table duration time & temperature
g Grabbing the box at the edges
g Add an additional corner mark
g Delete or insert a row
by right mouse click into the 1st column
• Additional Zones will be created by selecting another color and
defining coordinates again.
• Right mouse click to create a new cure chart
g Empty Cure Chart template will appear
g Name Cure Chart by pressing “Save As” button
g Select a color e.g. green for the zone “perfect”
g The “Edit Cure Chart Area” Window will appear
• Cure chart is complete when
g All coordinates are listed
g Analysis temperatures and steps are filled in the related row
g Annotations and Target Points can be defined • Right mouse click into the row for editingcuring conditions
