© 2003 Inovonics Wireless Corporation 5
03814a.doc LIT-FA206DS-INSTALL hc:24-Apr-03

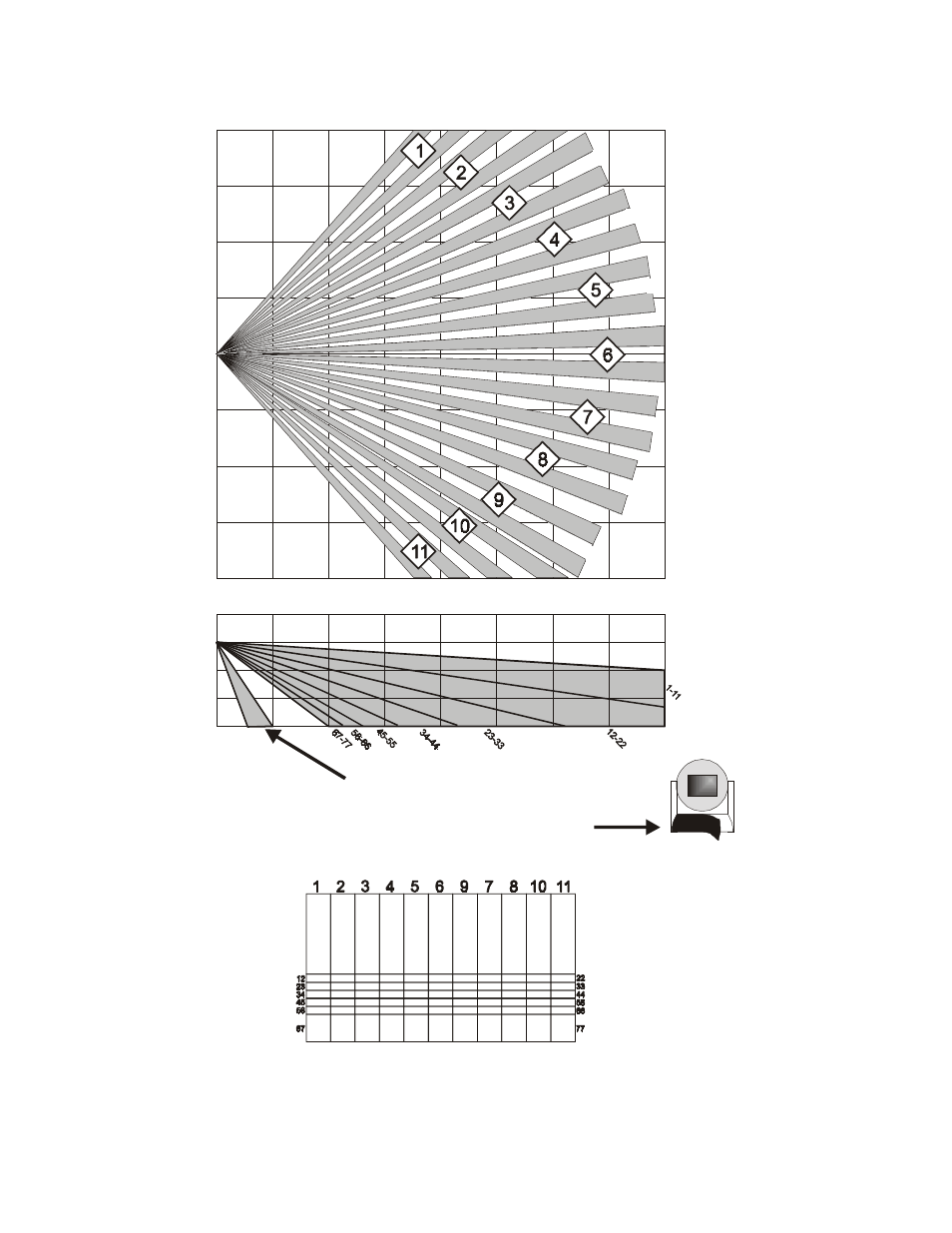

Coverage patterns and Zone identification:
0
20 ft
0 0
20 ft
40 ft
6 m
6 m
12 m 0
0 0
3 m 10 ft
Look Down Zone: To enable,
peel mask from Look Down
lens.
RFU940U Lens
(Inside view)
If masking is required, refer to
the Lens diagram and the
corresponding zone
identification data to show
appropriate lens zones to be
masked. Use opaque
masking material, such as
electrical tape.
