Inovonics FA204 User Manual
Fa204, Frequency agile, Fa204 pendant transmitter

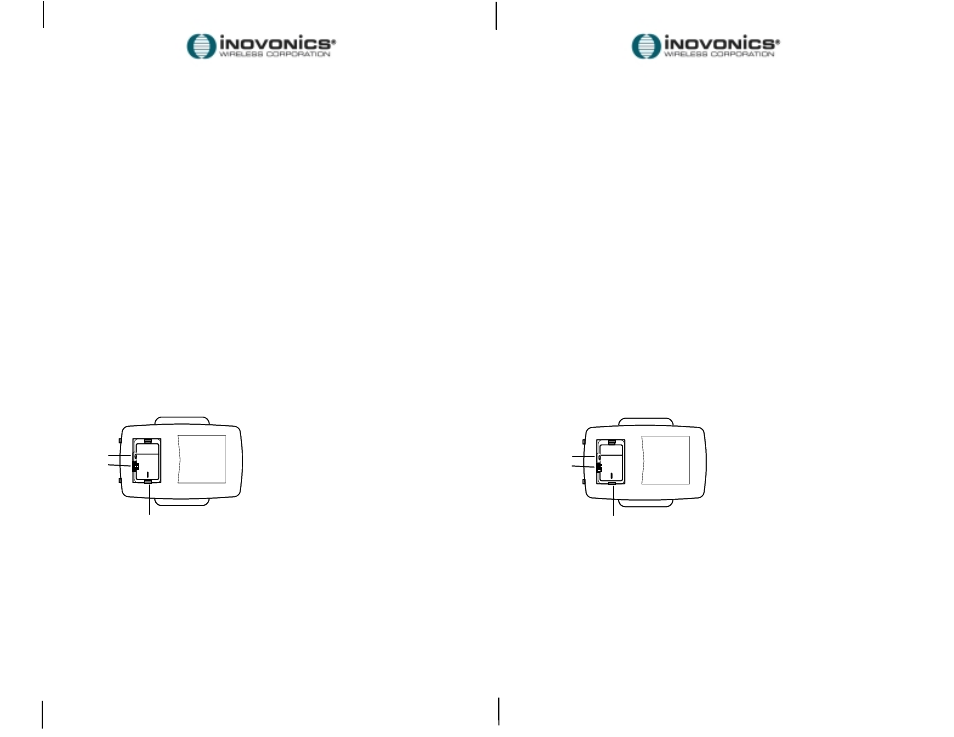

RESET BUTTON
PROGRAMMING
HEADER
+
3.0V
Note: Remove battery cover to access
Reset Button and Programming Header
RESET BUTTON
PROGRAMMING
HEADER
+
3.0V
Note: Remove battery cover to access
Reset Button and Programming Header
RESET BUTTON
PROGRAMMING
HEADER
+
3.0V
Note: Remove battery cover to access
Reset Button and Programming Header
RESET BUTTON
PROGRAMMING
HEADER
+
3.0V
Note: Remove battery cover to access
Reset Button and Programming Header
FA204
Frequency Agile
!
!
!
!
900MHz
Pendant Transmitter
Installation Instructions
01903D
FA204
Frequency
Agile
!
!
!
!
900MHz
Pendant Transmitter
Installation Instructions
01903D
Important Notes
!" These products are designed to be installed and maintained by
professional security technicians.
!" Products, unless specifically noted, are intended for indoor use.
!" Manually test all products regularly.
Inovonics Wireless Corporation
315 CTC Blvd Louisville CO 80027
(800) 782-2709 FAX: (303) 939-8977
www.inovonics.com
E-MAIL:
© 1994 Inovonics Wireless Corporation
01903D.DOC LIT-FA204-INSTALL
hc:7-Aug-01
Important Notes
!" These products are designed to be installed and maintained by
professional security technicians.
!" Products, unless specifically noted, are intended for indoor use.
!" Manually test all products regularly.
Inovonics Wireless Corporation
315 CTC Blvd Louisville CO 80027
(800) 782-2709 FAX: (303) 939-8977
www.inovonics.com
E-MAIL:
© 1994 Inovonics Wireless Corporation
01903D.DOC LIT-FA204-INSTALL
hc:7-Aug-01
FA204
Pendant Transmitter
Program
contacts:
N/O
Typical battery life:
2 yrs @ 60-sec check-in
Battery
type:
BAT607
only*
!"
Due to differences in metallurgical and electrical
characteristics, the only battery recommended
for the FA204 pendant is the BAT607 supplied
and labeled by Inovonics.)
!"
For information on supervision options, request
Tech Notes TN1025 and TN1031.
FA204
Pendant Transmitter
Program
contacts:
N/O
Typical battery life:
2 yrs @ 60-sec check-in
Battery
type:
BAT607
only*
!"
Due to differences in metallurgical and
electrical characteristics, the only battery
recommended for the FA204 pendant is
the BAT607 supplied and labeled by
Inovonics.)
!"
For information on supervision options,
request Tech Notes TN1025 and TN1031.
FA204 Programming
1. When prompted to plug in transmitter, connect cable from programming device to
programming header on transmitter.
2. Press reset button on transmitter.
3. When programming is complete, disconnect cable.
NOTE: The FA204 retains programming data in non-volatile memory. It does not
require re-programming after loss of power. Install new battery and press reset button
to re-initialize the transmitter and restore programming.
ATTENTION: Test the transmitter weekly.
FA204 Programming
1. When prompted to plug in transmitter, connect cable from programming device to
programming header on transmitter.
2. Press reset button on transmitter.
3. When programming is complete, disconnect cable.
NOTE: The FA204 retains programming data in non-volatile memory. It does not
require re-programming after loss of power. Install new battery and press reset
button to re-initialize the transmitter and restore programming.
ATTENTION: Test the transmitter weekly.
