Inovonics FA206B User Manual
Fa206b, Installation instructions, Overview

© 2003 Inovonics Wireless Corporation
1
03814a.doc LIT-FA206DS-INSTALL hc:24-Apr-03

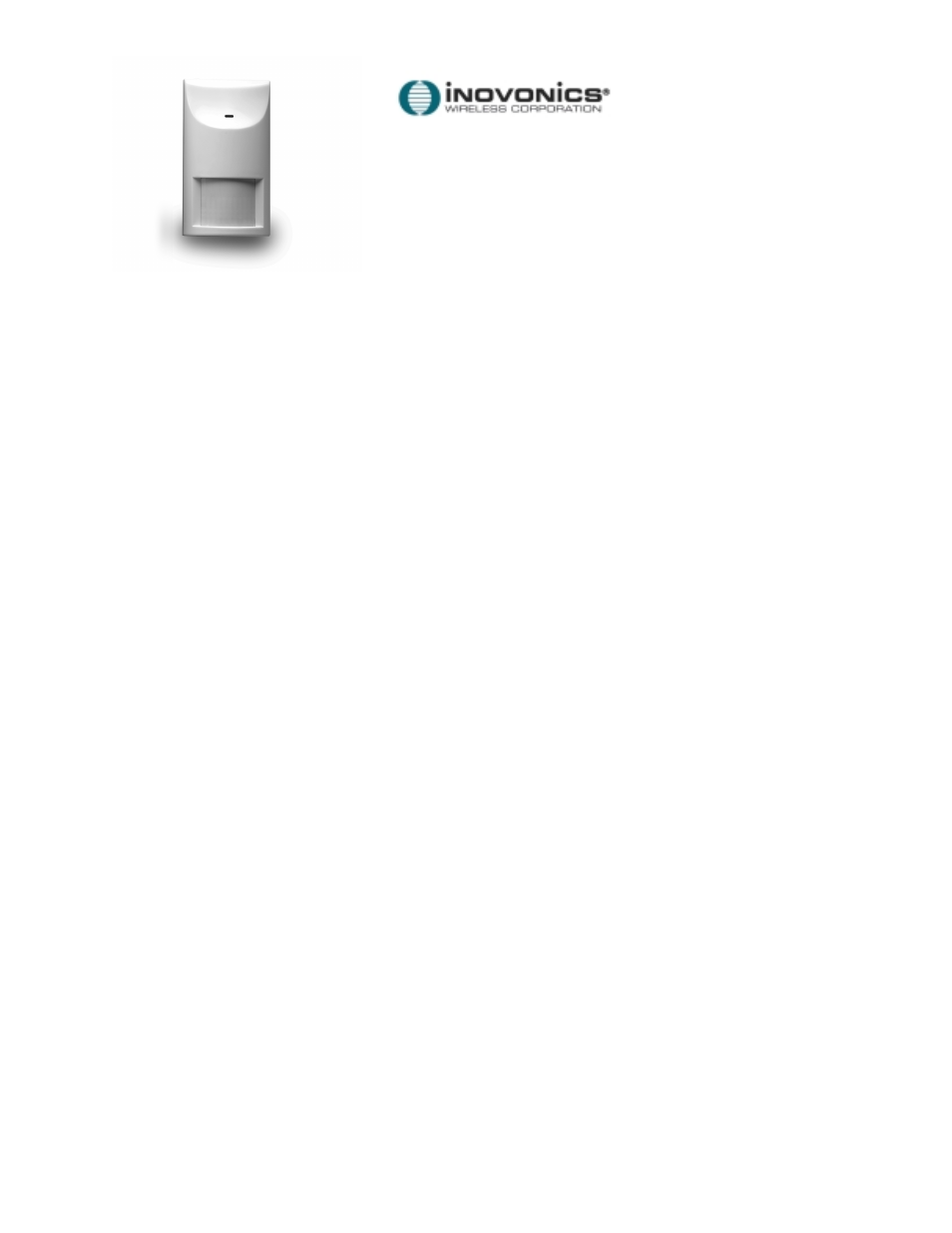

FA206B
Frequency Agile
®
900MHz Transmitter
Passive InfraRed Motion Detector
Installation Instructions
03814A
Overview:
The FA206B is an Inovonics transmitter incorporating the Detection Systems RF940U PIR. The
unit operates on a single 3.0V lithium battery (Panasonic CR123A or equivalent). The PIR is
designed to detect indoor movement of human-size infrared targets. With Detection Systems’ Pet
Friendly
®
feature the sensor will not detect single or multiple animals up to 30 pounds (13.6 Kg)
total weight.
Features:
x Inovonics' reliable 900 Megahertz Frequency Agile
®
radio link.
x Mounting options permit flat wall, corner or hallway mounting. Optional bracket for special mounting.
x RF interference immunity.
Specifications:
Dimensions:
4.5" H x 2.5” W x 1.6” D (11.4 cm x 6.4 cm x 4.1 cm)
Operating
temperature:
32
qF to 120qF (0qC to 49qC)
Humidity:
0 – 85% non-condensing (PIR)
Battery:
1 - 3.0V lithium ( Panasonic CR123A, Duracell DL123A)
Note: Battery is always supervised
Tamper:
Housing and wall (optional)
PIR RF interference immunity:
Greater than 30 v/m 26 MHz – 1 GHz
Mounting Height:
7 to 9 feet (2.1 to 2.7 meters)
Alarm lockout time:
3 minutes
Options:
B335 Swivel and B338 Ceiling mounting brackets
(from Detection Systems)
Important Notes
nThese products are designed to be installed and maintained by professional security technicians.
nProducts, unless specifically noted, are intended for indoor use.
nManually test all products regularly.
