FA113
Frequency Agile ® 900MHz
4-Button Command Transmitter
Installation Instructions
02226C

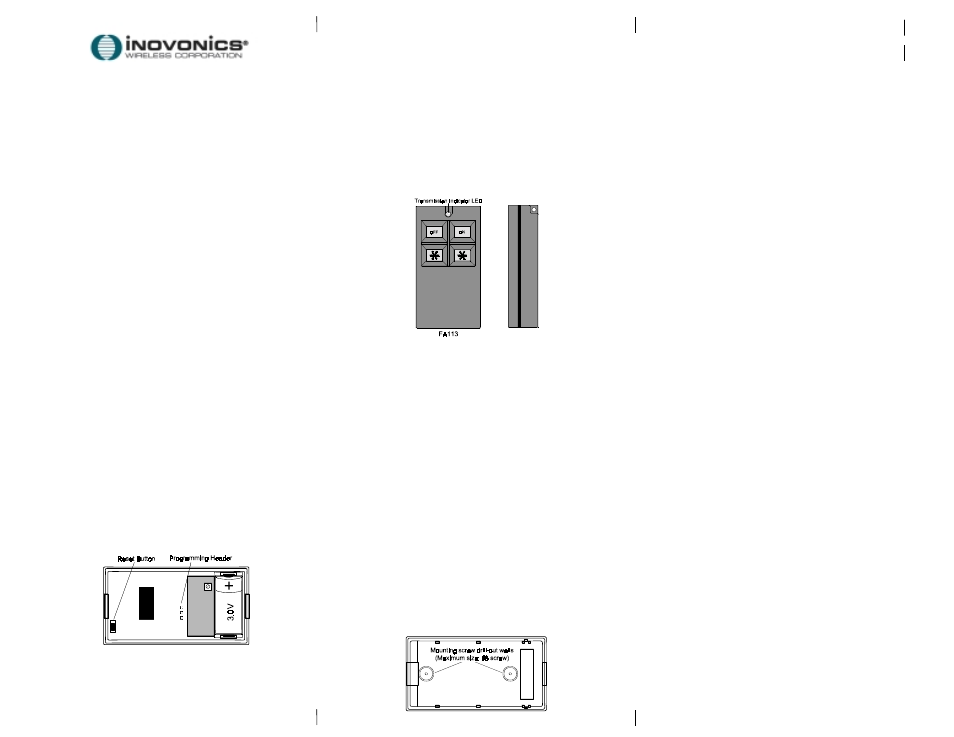

Operation
The FA113 ON button arms the system.
The FA113 OFF button disarms the system.
Pressing both “
!
” buttons simultaneously sends an
emergency alarm signal.
Press and hold the button or buttons to activate.
Activation signals are transmitted multiple times, and are
indicated by the blinking transmission indicator LED.
Fold line indicator:
Cut line indicator:
Important Notes
!" These products are designed to be installed and
maintained by professional security technicians.
!" Products, unless specifically noted, are intended for indoor
use.
!" Manually test all products regularly.
Inovonics Wireless Corporation
315 CTC Blvd
Louisville CO 80027
(800) 782-2709
FAX: (303)939-8977
www.inovonics.com
E-MAIL: [email protected]
02226c.doc LIT-FA113-INSTALL hc:19-Sep-01
Opening the transmitter
Insert a small slotted screwdriver in the slot behind the
transmission indicator LED.
Apply careful leverage, bringing the handle of the
screwdriver forward to pry open the transmitter case.
To close the transmitter housing, snap the case
together, aligning the bottom edge first.
ATTENTION: The battery is not supervised in this
arming device. Test the FA113 weekly.
Programming the FA113 to the Inovonics Vision Plus
1. Program the FA113 type as Remote.
2. Select Monitored, Audible and Relay Out options as desired.
3. Press "Enter" when prompted "ENTER to program".
4. When prompted to "Plug in xmitter", connect the programming
cable from the KP103 executive keypad to the transmitter
programming header and press the transmitter reset button.
5. Disconnect the programming cable.
6. The FA113 ON button will arm the system in the Away mode.
NOTE: FA113 transmitters retain programming data in non-
volatile memory. They do not require reprogramming after loss
of power. Install a new battery and press the reset button to
re-initialize the transmitter and restore programming.
Device type: Remote
Typical battery life: 3 to 5 years
Battery: 3.0V lithium Sanyo CR2
* To extend battery life, actual check-in interval is 2 to 3 times the programmed value.
Optional Mounting
If desired, the FA113 can be screw-mounted to a fixed surface. Drill
through-holes (.200" max diameter) in the back housing cover in
locations shown below. Wood screws used to mount the transmitter
should be size #8 or smaller. Screw head height must be less than
.150". Larger screw heads may cause short-circuits on the unit.
