Chapter 4 - Setup
4-1
CHAPTER 4 - SETUP
A Brief Description of
Chapter 4 Chapter 4 covers the firmware and software settings
used to prepare the module controller for calibration
and operation. The Setup procedures require Allen-
Bradley’s RS Logix 5000, Allen-Bradley RSLinx™
or RSLinx™ Lite.
Power Check Step 1. To make or change settings, there must be
power to both the PLC and the module.
Verify that the LED’s are lit for normal
operation. (See Figs. 4-1 and 4-2)

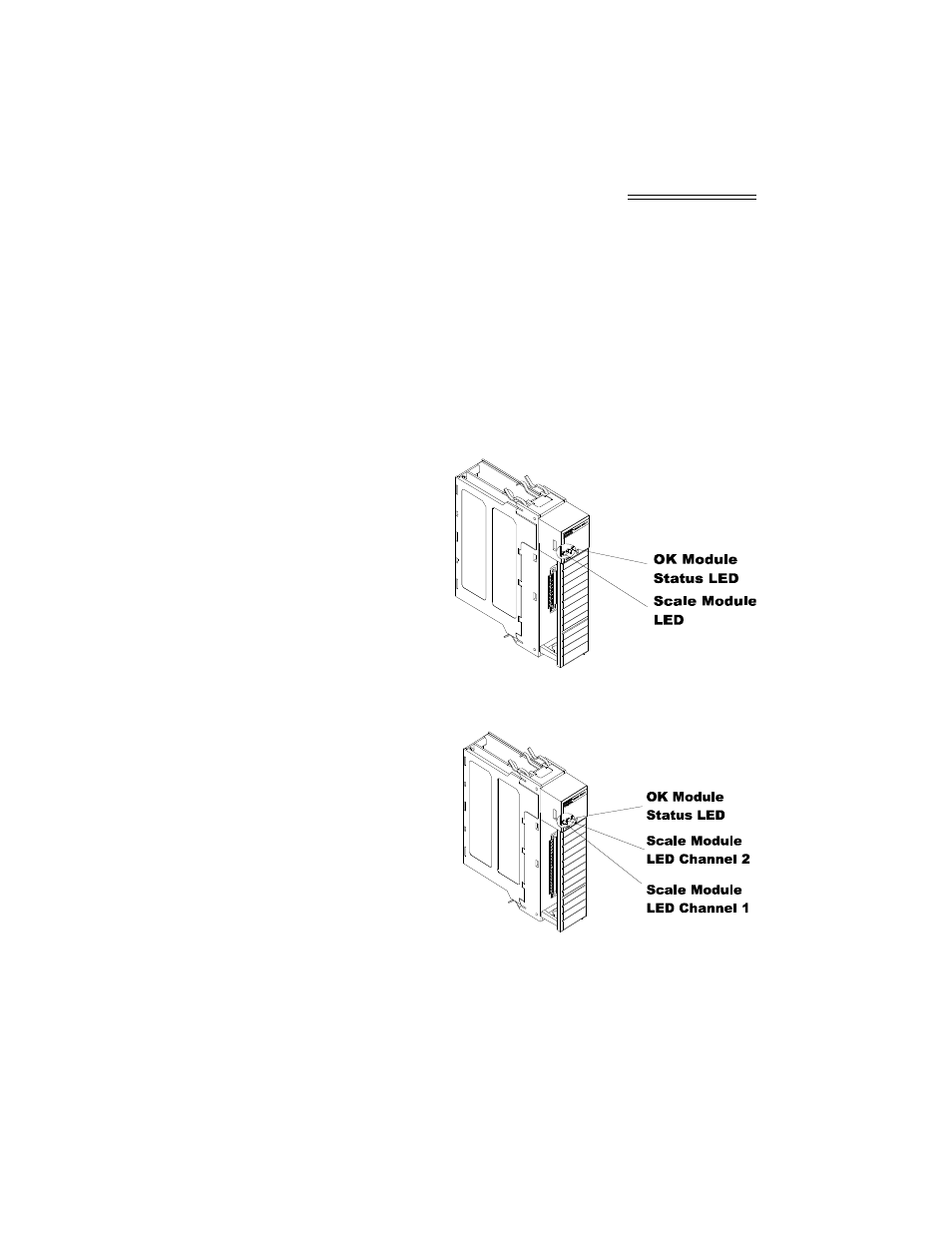

FIG. 4-1 MODULE LEDS SINGLE CHANNEL
FIG. 4-2 MODULE LEDS DUAL CHANNEL‘
