HI 1756-WS WEIGH SCALE MODULE
3-8
RTA Cable
Assembly • Six (6) foot cable that connects to the HI 1756-
WS module.

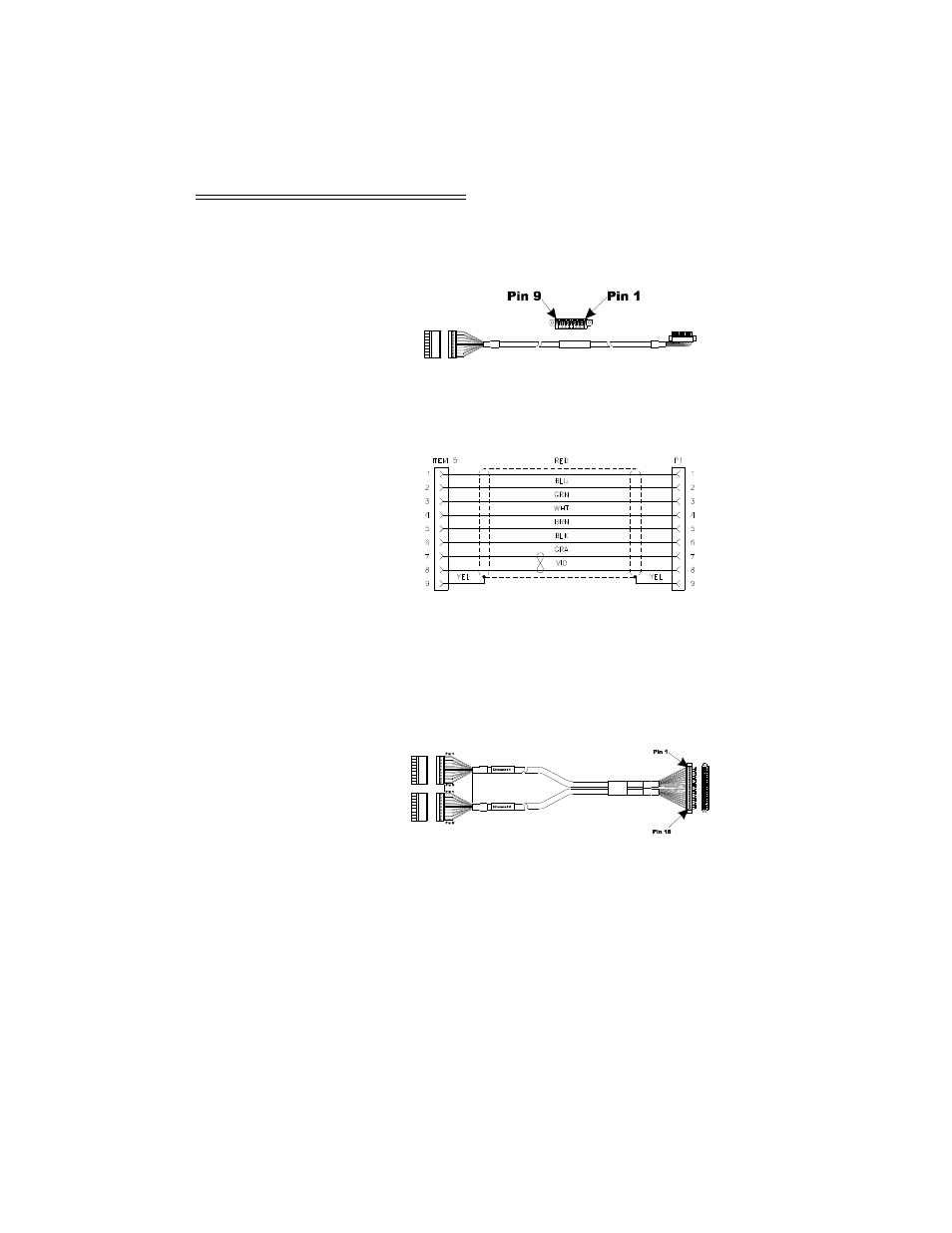

FIG. 3-10 RTA CABLE ASSEMBLY - HI 1756WS
SINGLE CHANNEL
FIG. 3-11 RTA CABLE SCHEMATIC - HI
1756WS SINGLE CHANNEL
• Six (6) foot cable that connects to the HI 1756-
2WS module
FIG. 3-12 RTA CABLE ASSEMBLY - HI
17562WS DUAL CHANNEL
