Page 24: Load cell wiring diagrams -6

HI 1756-WS WEIGH SCALE MODULE

3-6

Load Cell Wiring
Diagrams

Industry Standard
Load Cells

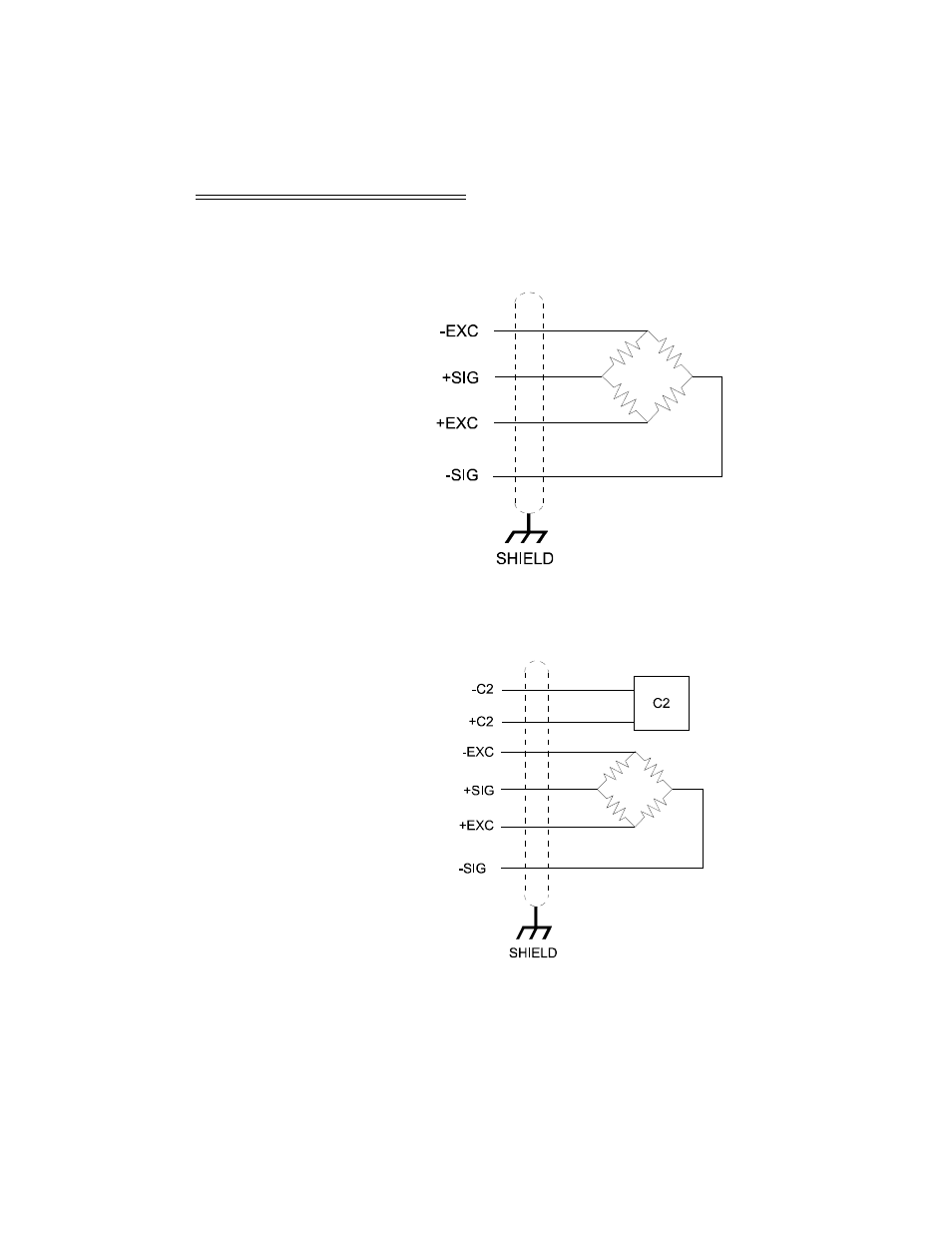

FIG. 3-6 INDUSTRY STANDARD LOAD CELLS

WIRING DIAGRAM

Hardy Load
Sensor with C2

FIG. 3-7 HARDY LOAD SENSOR/C2 WIRING

DIAGRAM
