Page 27
Chapter 3 - Installation
3-9

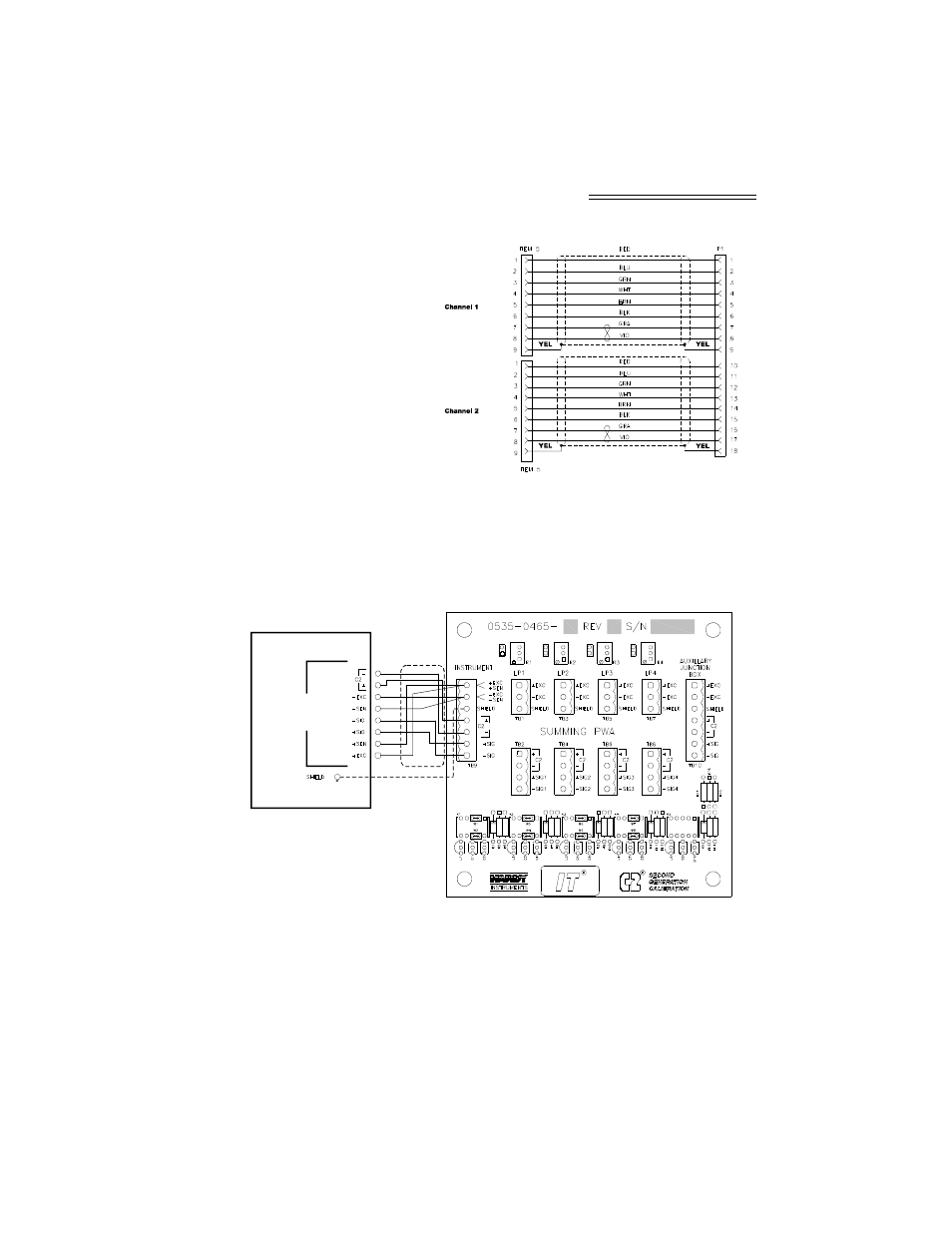

FIG. 3-13 RTA CABLE SCHEMATIC - HI 1756-
2WS DUAL CHANNEL
Hardy HI 215IT
Junction Box
FIG. 3-14 HARDY HI 215IT JUNCTION BOX WIRING DIAGRAM
NOTE:
When connecting the Hardy HI 215IT Junction Box
you must remove the two factory installed jumpers
1&2 and 5&6 on the module install sense lines.
Load
Cell
Connector
J1
