Chapter 4 - Setup
4-9
Step 4. From the Select Module Type dialog box,
scroll down the list until you find the 1769
Module - Generic Module.
Step 5. Double click on the 1769 Generic Module.
Step 6. Click on the OK button. The Module Prop-
erties dialog box appears. (See Figs. 4-11
& 12)

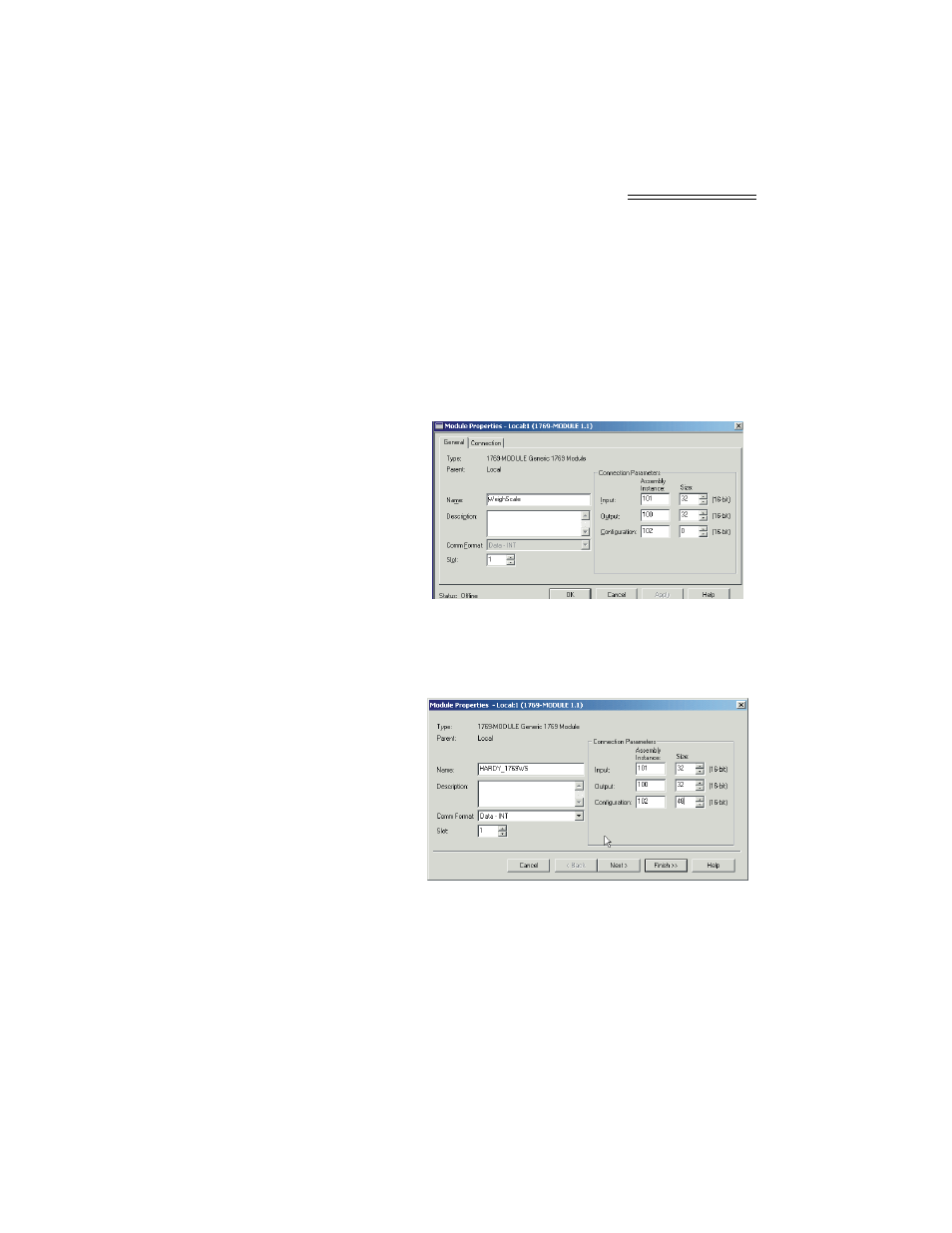

FIG. 4-11 MODULE PROPERTIES DIALOG
BOX/CONFIGURATION/SIZE/0 WORDS
FIG. 4-12 MODULE PROPERTIES DIALOG
BOX/CONFIGURATION/SIZE/48 WORDS
Step 7. Click in the Name Text box. Enter a
descriptive name for the module. We used
“Hardy_1769WS” for example.
