Chapter 4 - Setup
4-5

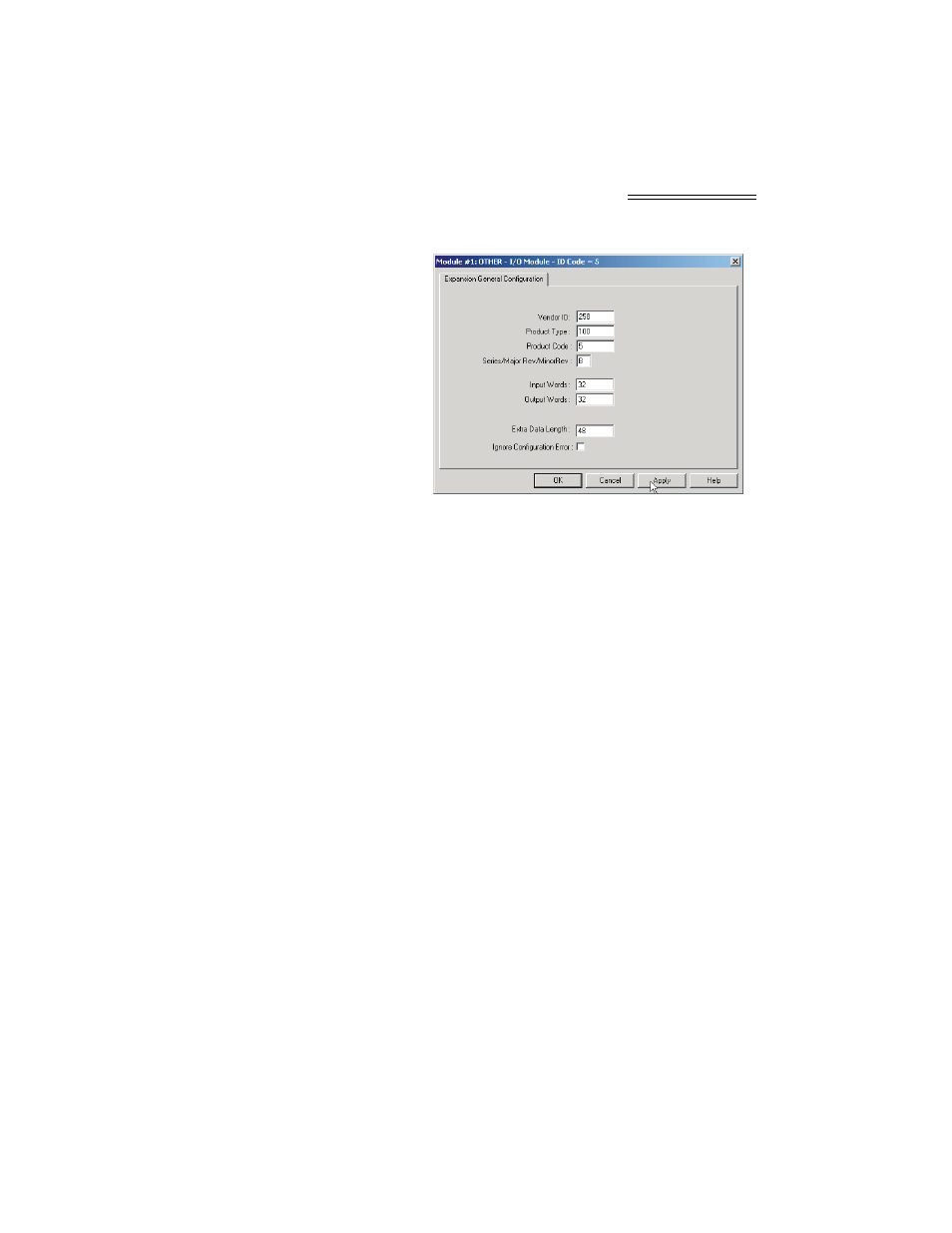

FIG. 4-5 CONNECTION/CONFIGURATION - 48
Alternative Setup
Procedures
Configuring the

HI 1769-WS in
RSLogix 500 for
MicroLogix 1500
To set up communication between the MicroLogix
1500 Processor and the Weigh Scale Module you will
need to do the following in RSLogix 500:
Step 1. Under Project, click on the + next to con-
troller. (See Fig. 4-6)
Step 2. Click on I/O Configuration. The I/O Con-
figuration dialog box appears. (See Fig. 4-
7)
