HI 1769-WS/HI 1769-2WS WEIGH SCALE MODULE
3-8

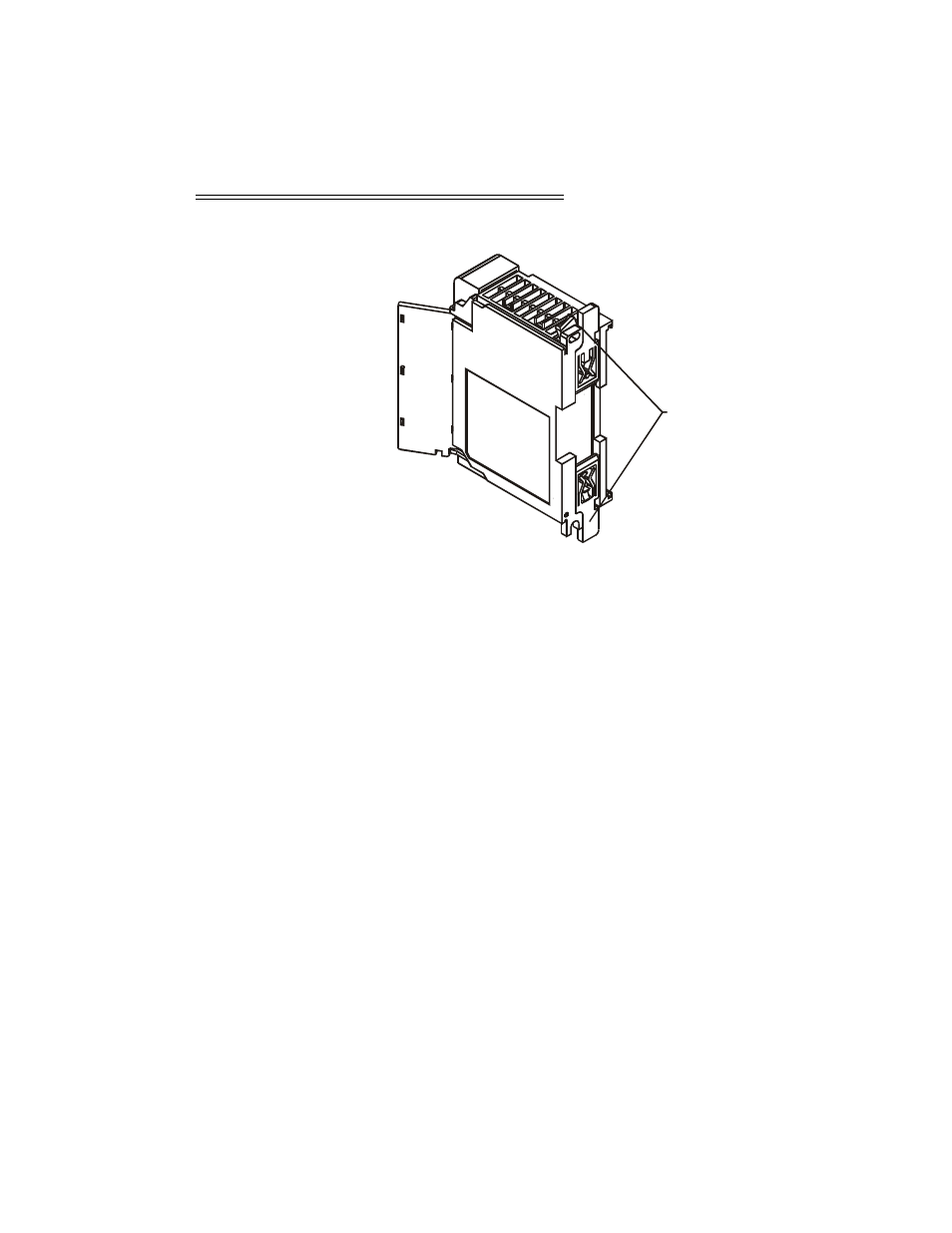

FIG. 3-6 RAIL FASTENERS IN RETRACTED
POSITION
Step 2. Place the module on the DIN rail.
Step 3. While holding the module in place, press
the two rail fasteners towards the center of
the module until they both snap into place.
(See Fig. 3-7)
Step 4. The module is now securely fastened to
the DIN Rail.
Step 5. To remove the module from the DIN rail
reverse steps 2 & 3 above.
Rail
Fasteners
