Connections – Doepfer CTM64 Contact to Midi Interface (main board) User Manual
Page 6
page 6
CTM64 Version 4 - User's Guide

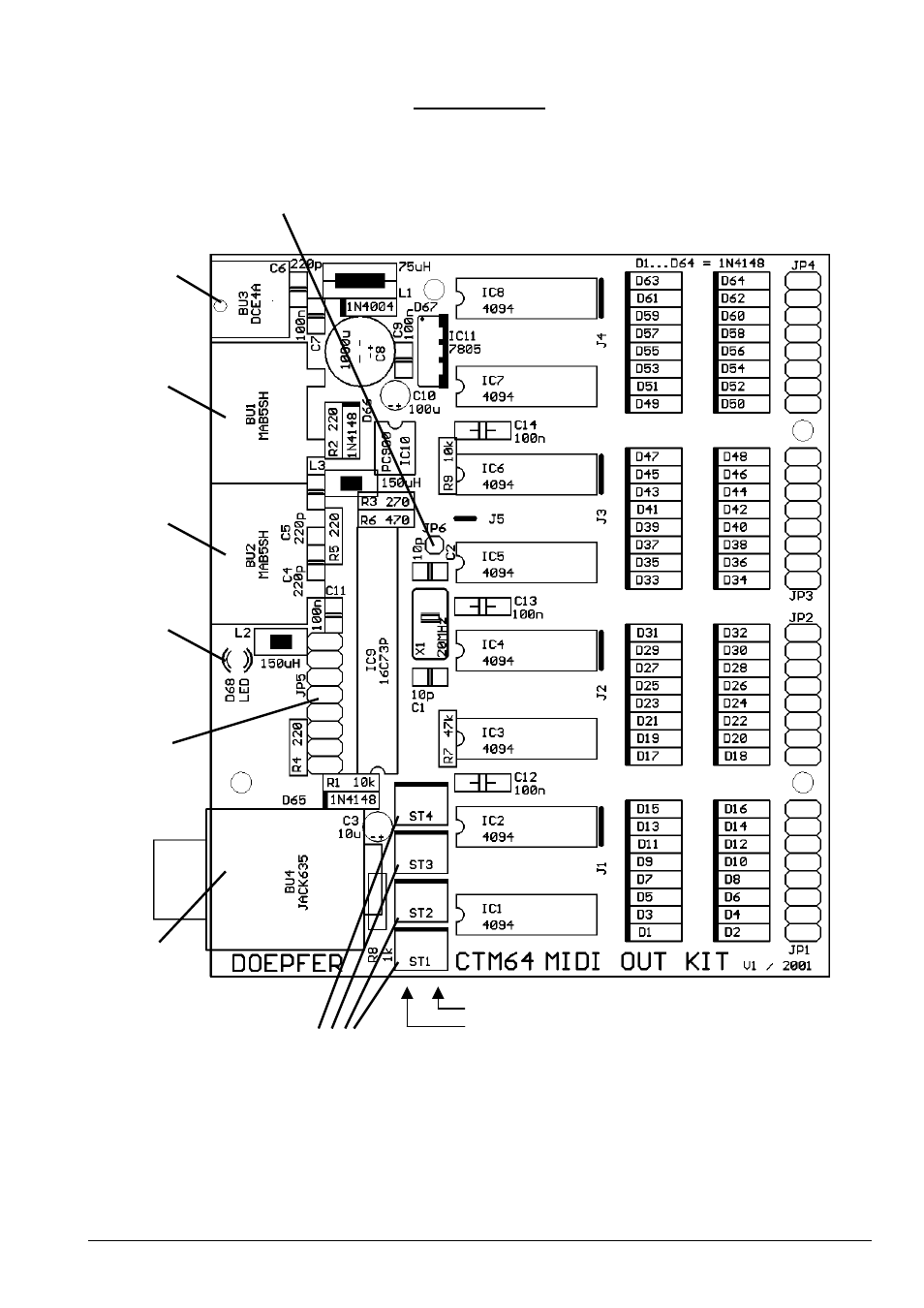

Connections
(2)
MIDI IN
(BU1)
(3)
MIDI OUT
(BU2)
(1)
power supply
7-12V/
100mA DC
(BU3)
(4)
control
LED
(D68)
(5)
sustain
(BU4)
(6) (7) (8) (9)
potentiometer connectors for
pitch bend, modulation,
volume and after touch
(ST1, ST2, ST3,ST4)
(11)
common
connector
(JP6)
(10)
contact
1-16
(10)
contact
17-32
(10)
contact
33-48
(10)
contact
49-64
(12)
jumper
1-8
(JP5)
1
2
3
4
5
6
7
8
+5V
GND
