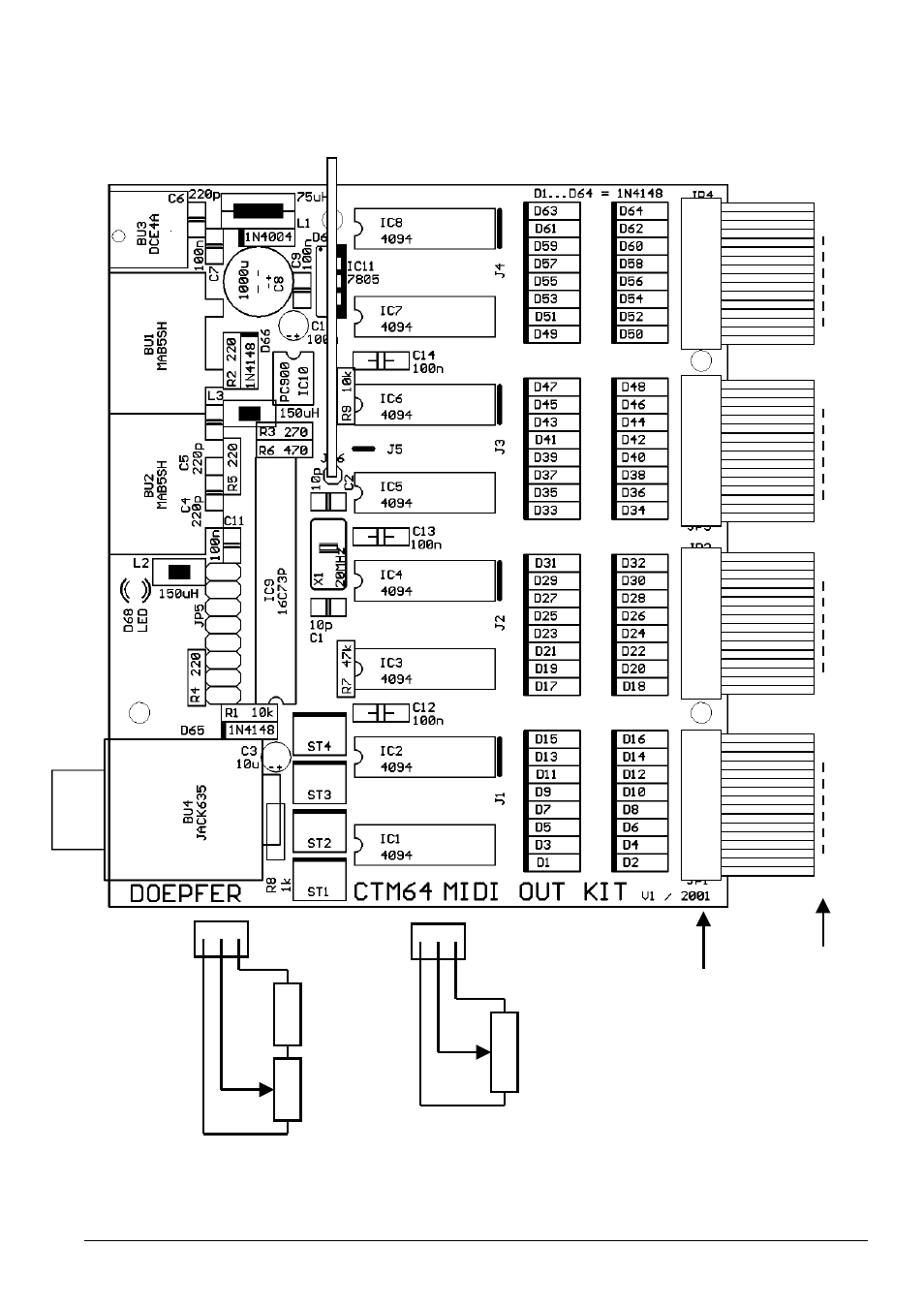

Appendix: Connection sketch
16
1
32
17
48
33
64
49
contact
number
16 pin female
connectors with
pressed 16 pin
flat cable
common lead for
all contacts
+5V
GND
potentiometer wiring for
ST3 and ST4
+5V
GND
potentiometer wiring for
ST1 and ST2
+2.5V
resistor values for the potentiometers about 5k...250k (linear)
