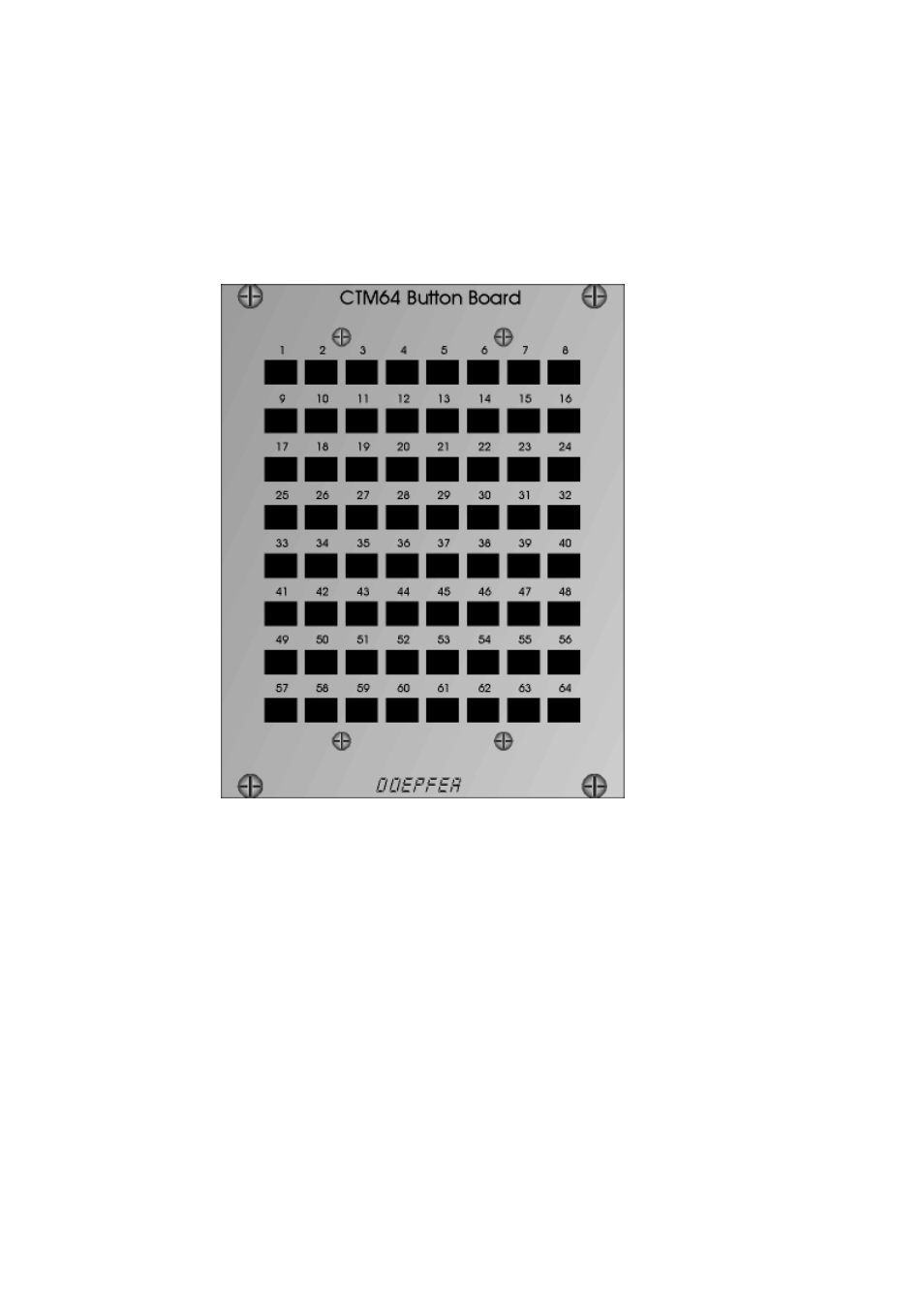

Even a suitable front panel is available. The panel is punched matching to the 64 buttons and
four mounting screws. The pc board is mounted to the front panel by means of four M2.5
counter-sunk screws, distance bolts and nuts. The measure of the front panel is compatible to
the 19 inch standard: 3 U height (128,5 mm) and 20 HP width (101,3 mm). The front panel is
not printed but labels with the numbers 1-64 and 65-128 are delivered. The front panel can be
mounted e.g. into one of the frames of the Analog Modular System A-100, even into the A-100
Miniature Case (A-100MC).
