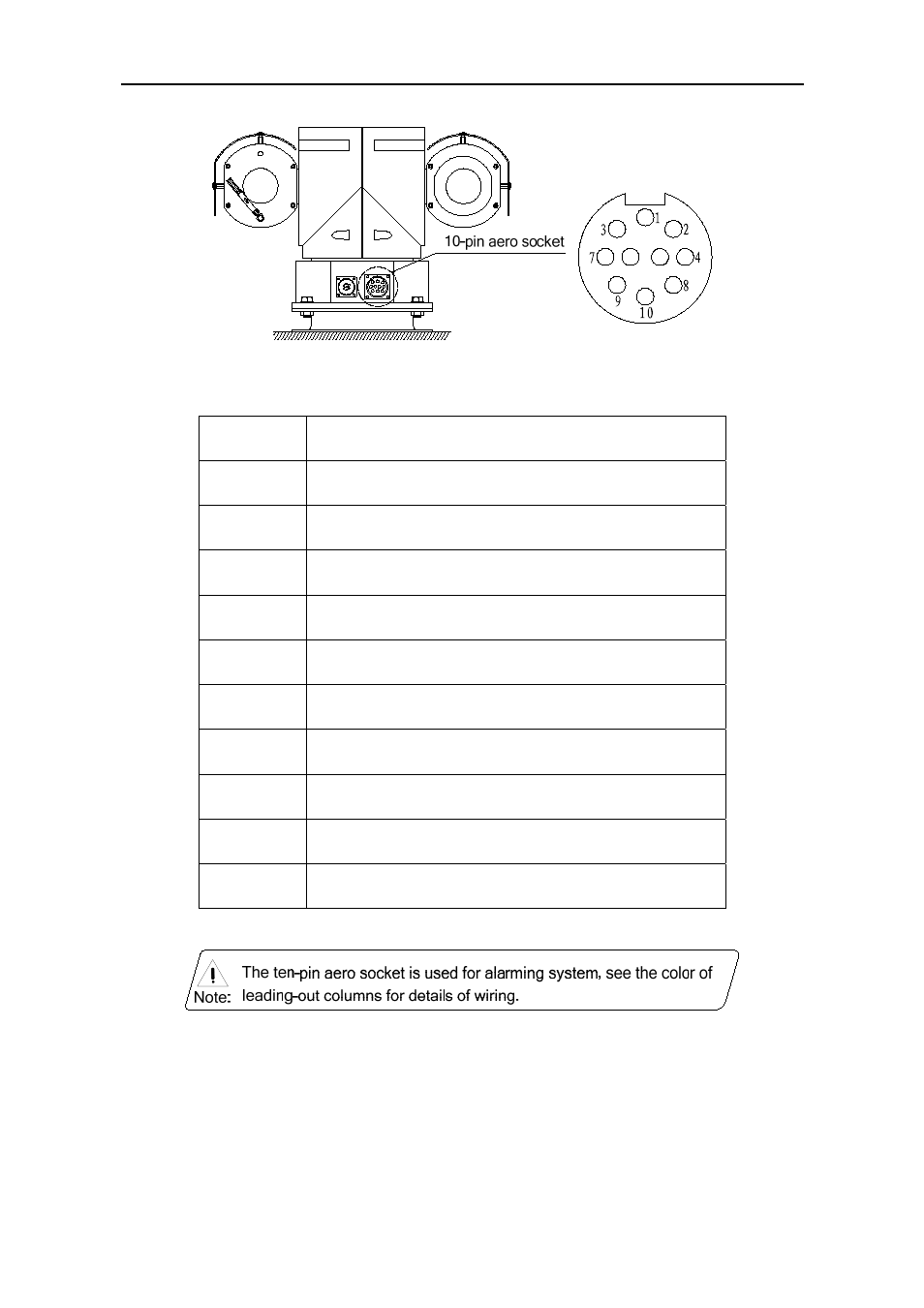

4.8.2 10-pin aero socket is shown as Fig.11:
Fig.11
Description:
No.
Meaning
1.
Alarm-1 in: Red
2.
Alarm-2 in: Orange
3.
Alarm-3 In: Yellow
4.
Alarm-4 In: Green
5.
NC
6.
Alarm In COM: black
7.
Alarm Out COM: white
8.
NC
9.
Alarm NO out: Blue
10.
Alarm NC COM: gray
