30

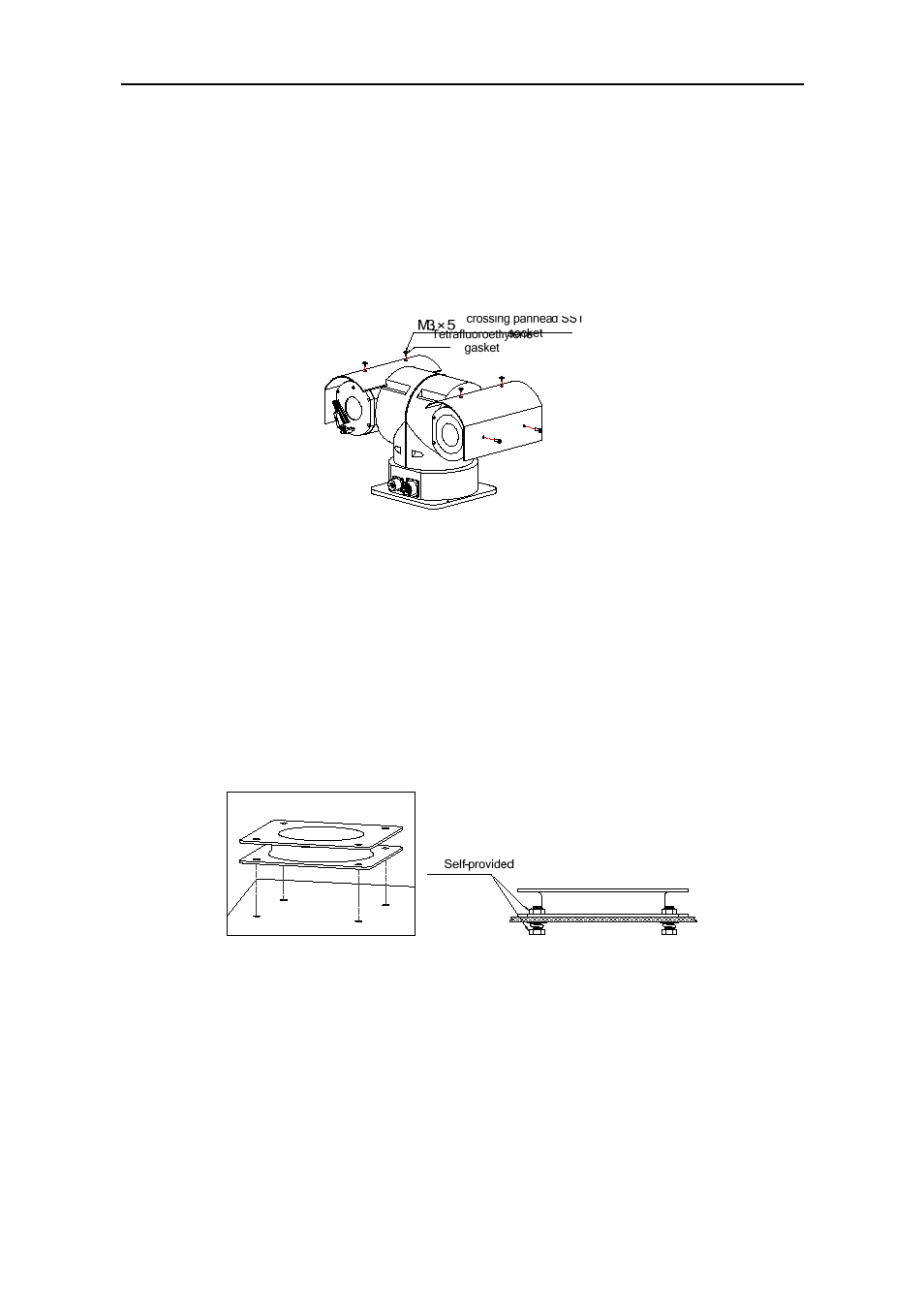

4.7.1 Install the sunshading cover:
1) Respectively take four M3×5 crossing panhead SST screws and four 3.2Ч8Ч0.7
tetrafluoroethylene gaskets and protective cover out;
2) Fix the sunshading cover onto the middle frame columns of both sides with four
M3×5 crossing panhead SST screws and four 3.2Ч8Ч0.7 tetrafluoroethylene gaskets
(one gasket per screw) (shown as Fig.3).
Fig.3
4.7.2 On-board mounting type
1) Take the on-board anti-shock device from its packing, take the chassis of anti-shock
device as template, drill four mounting holes on the supporting frame (shown as
Fig.4);
2) The user may provide four bolts according to the required length; add the flat gaskets
and elastic gaskets for restricting the anti-shock device, shown as Fig.5;
Fig.4 Fig.5
3) Fix the anti-shock device on the base of pan/tilt with four M8×30 SST bolts and one
elastic gasket and one flat gasket, shown as Fig.6:
