6. 3 P attern

Pattern is built-in function in camera; the sp eed dome can record tracks

that are no less than 180s. (A series of pan/tilt controlling and lens control-

ling command). A dome may set up to 4 pattern tours.

The system enters into the main menu by calling 95 preset or by calling

9 preset twice within 3 seconds.

Operate joystick, move the cursor to

FUNC TION SETTING

, press

OPEN

to enter submenu.

Operate joystick to

PATTERN

, press

OPEN

to enter menu

Pa-

ttern

Choose pattern number: move the cursor to

PATTERN NUMBER

press

OPEN

, pattern you choose as current pattern, the following oper-

ations aim at the current pattern;

Define current pattern tour: move the cursor to

PROGRAM

PATTERN

, press

OPEN

to set pattern track, move the image random,

and draw the focus. The dome has a tour that is no less than 180s, a series of

park time, magnification, focus will be recorded, press

OPEN

to save.

Run pattern: operate joystick to

RUN PATTERN

, press

OPEN

to run, the dome will continuously and repeatedly record the specific track.

PATTERNS

PATTERN NUMBER
PROGRAM PATTERN

RUN PATTERN
CLEAR PATTERN

EDIT PATTERN LABEL
BACK
EXIT

EDIT PATTERN LABEL

LABEL PATTERN-1
BACK
EXIT

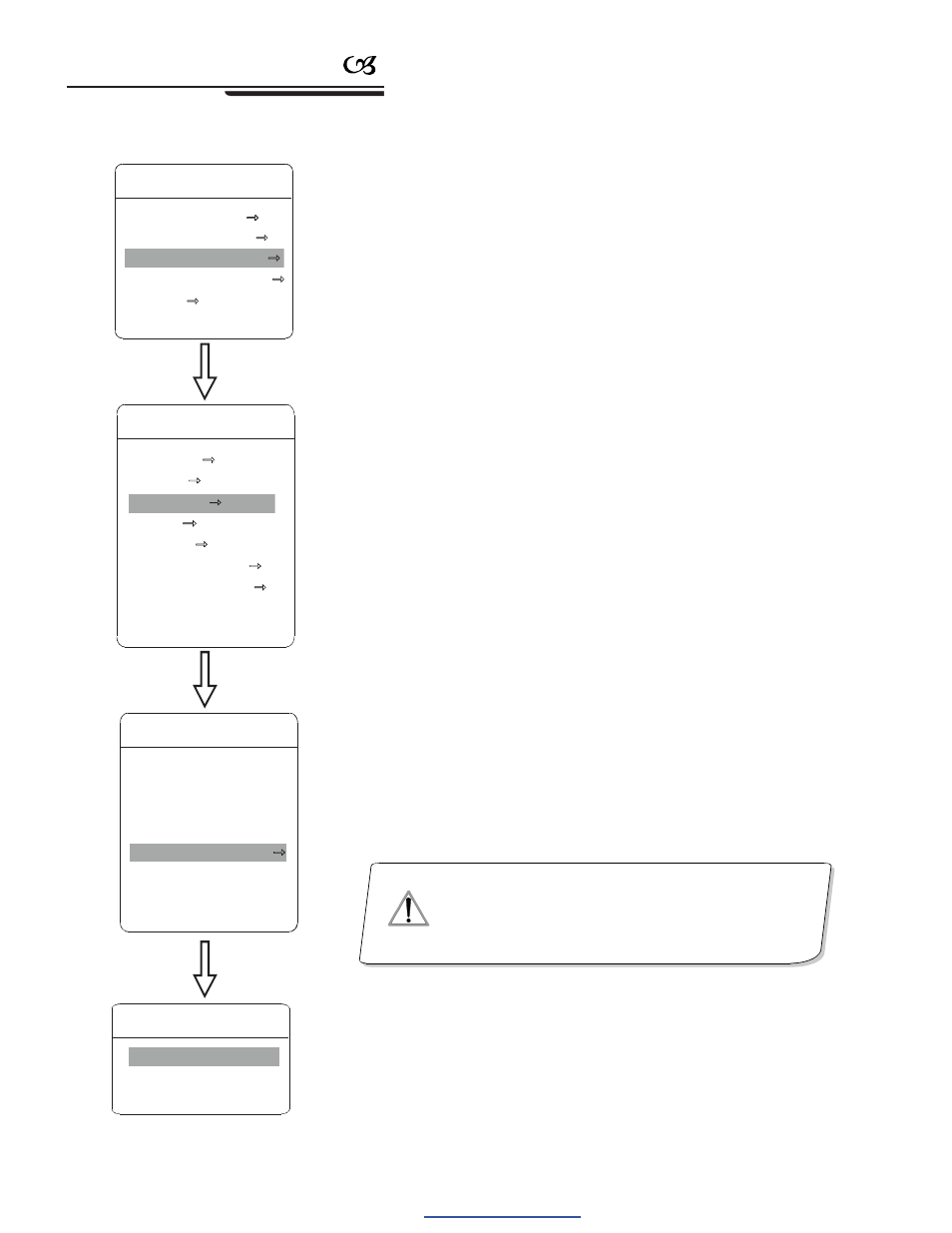

MAIN MENU

SYSTEM SETTING
CAMERA SETTING
FUNCTION SETTING
WINDOW BLANKING
ALARMS
EXIT

NOTICE

When carry out program, run, clear pattern and edit

label, should choose pattern number at first.

PATTERN NUMBER

PROGRAM PATTERN

RUN PATTERN

CLEAR PATTERN

EDIT PATTERN LABEL
