R GAIN t
B GAIN
White balance mode
System supports AUTO indoor mode INDOOR outdoor
mode OUTDOOR auto track mode ATW single mode OPW
OPT mode manual mode MANUAL and kinds of white balance
modes, etc.Detail setting as follow:

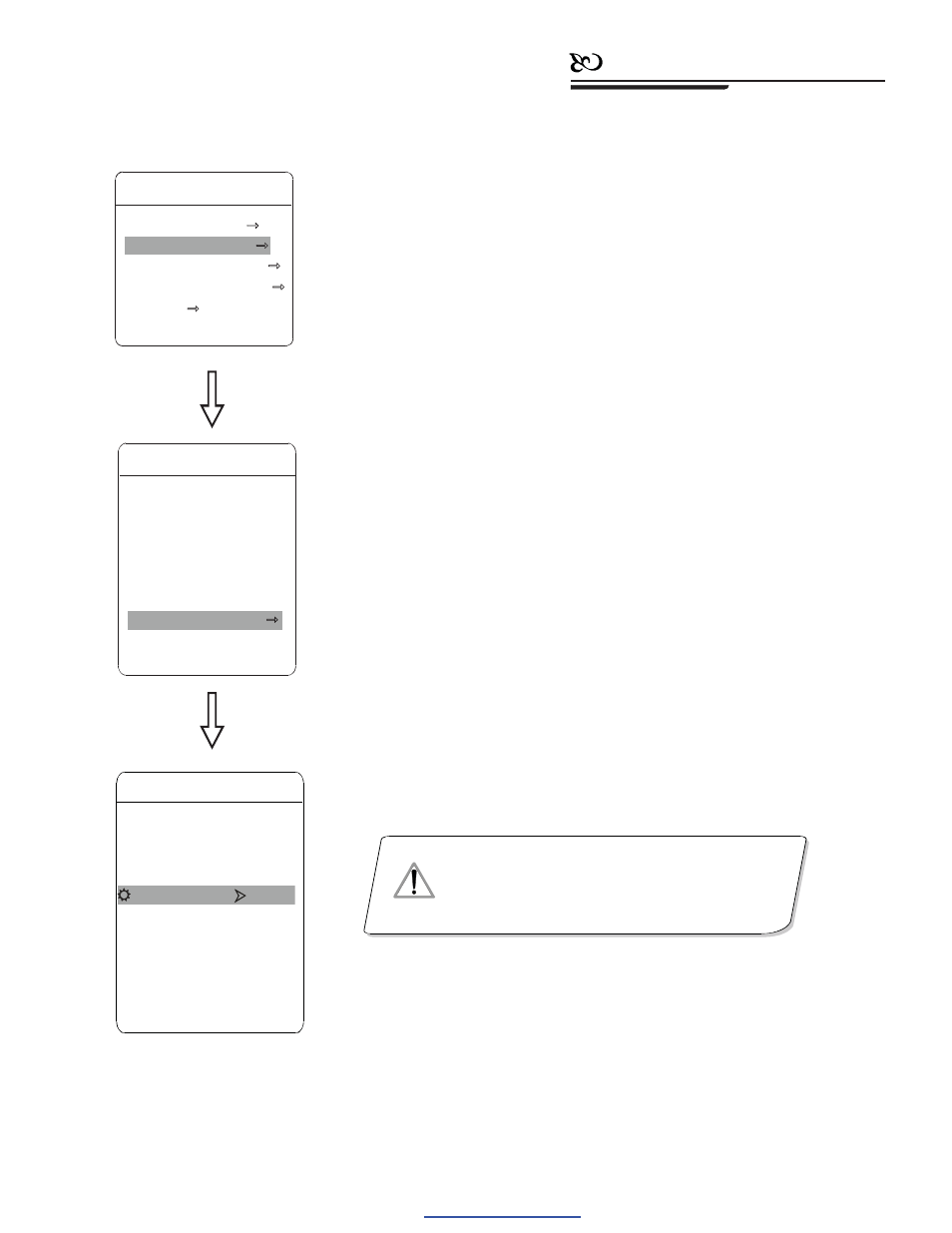

The system enters into the main menu by calling 95 preset or by calling
9 preset twice within 3 seconds. click each command enter into advanced
setting menu accordin g to the order in left picture .
Operate joystick, move the cursor to BW MODE to choose white
balance mode, press OPEN to save.
Auto mode AUTO is the default mode of speed dome, which is auto-
revert real color after th e white balance sensor check the environment by
camera. When choosing manual mode MANUAL , adjust the numerical
value of R GAIN and B GAIN .
he range is 1-225; the numerical value is bigger, it means
that adding red is more, the tone changes to be warm.
the range is 1-225; the numerical value is bigger, it means
that addin g green is more, the tone changes to be cold.
Indoor mode INDOOR , and the tone leans to cold.
Outdoor mode OUTDOOR , and the tone leans to warm.
HI-RESOLUTION high resolution is built-in function of camera ,This
function is relative with the model of camera.
CAMERA SETTING
ZOOM SPEED HIGH
DIGITAL ZOOM ON
BLC MODE OFF
SLOW SHUTTER ON
IR CUT FILTER AUTO
LINE SYNC 101
ADVANCE SETTING
BACK
EXIT
MAIN MENU
SYSTEM SETTING
CAMERA SETTING
FUNCTION SETTING
WINDOW BLANKING
ALARMS
EXIT
ADVANCE SETTING
AE MODE A UTO
SHUTTER N/A
IRIS
BRIGHT
BW MODE AUTO
R GAIN
B GAIN
HI-RESOLUTION ON
BACK
EXIT
N/A
N/A
N/A
N/A
NO TICE
It is possible tha t differ ent cam era ha s not th e setting of
INDOO R , OUTD OOR , HI -RESO LUTIO N ;
Th at mea ns the c urrent camer a has no such f unctio n when
the settin g optio n show s N/A.
